EZ 4217 KAA (968999291) - Husqvarna 42" Zero-Turn Mower (2006-02) Deck Assembly 42" Parts Diagram

42" Zero-Turn Mower

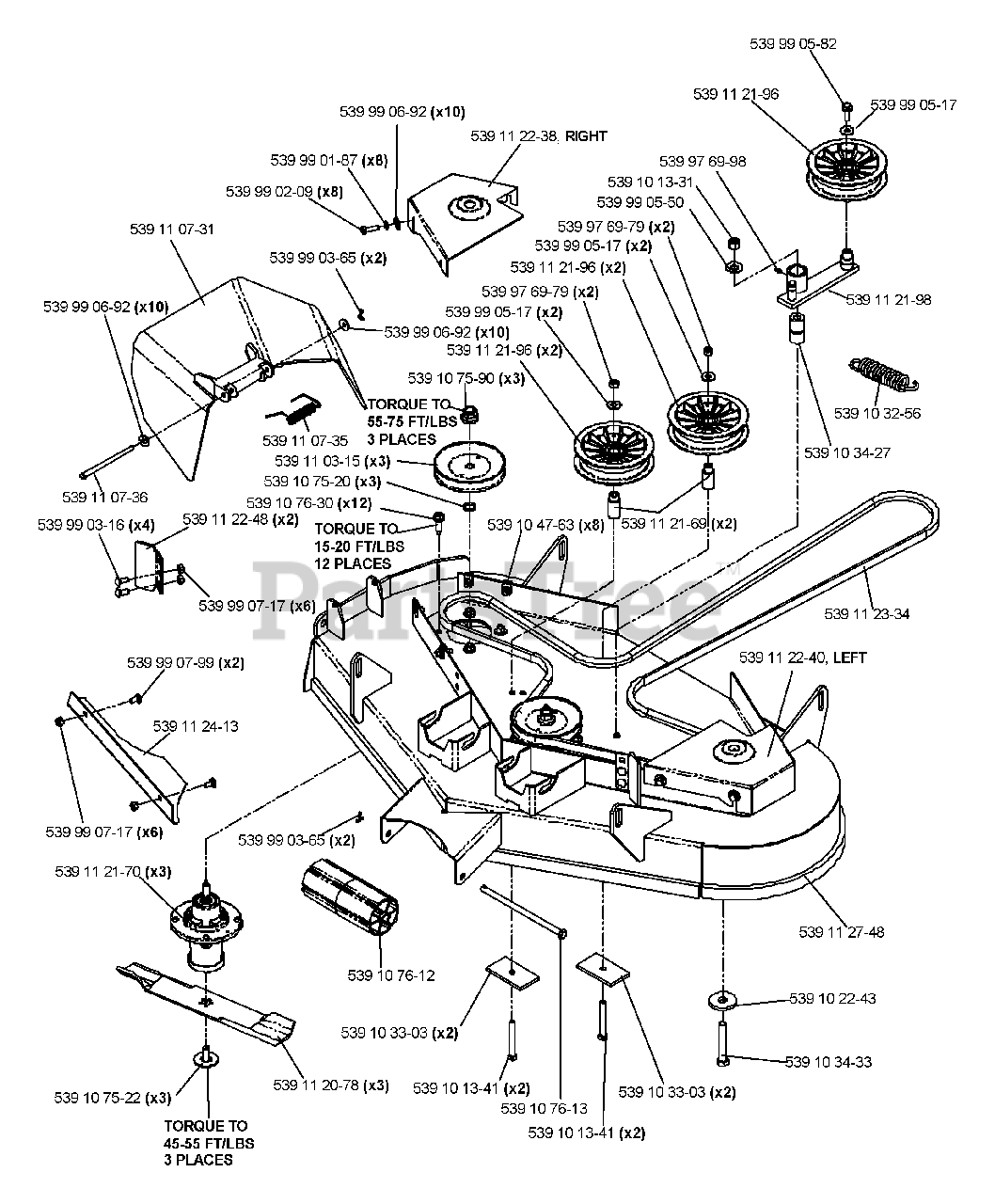

Deck Assembly 42" Parts Diagram

  • Title

539990517

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

539101341

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

539102243

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539103256

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

539103303

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539103427

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

539103433

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

539104763

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

539107520

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

539107522

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

539107530

Husqvarna 539107530

BATTERY SUPPORT-RH

$34.99

$

Usually ships in 3-10 days

0

539107590

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

539107612

Husqvarna 539107612

NOSE ROLLER-48"
(Superseded to 532176066)

$9.99

$

In Stock, Qty 20+

0

539107613

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

539110315

Husqvarna 539110315

PULLEY MANDREL
(Superseded to 532173434)

$18.99

$

In Stock, Qty 20+

0

539110731

Husqvarna 539110731

DISCHARGE CHUTE 42"

$53.99

$

In Stock, Qty 7

0

539110735

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$3.99

$

In Stock, Qty 16

0

539110736

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$

$

Not available

539112078

Husqvarna 539112078

BLADE, 14 5/8"

$21.99

$

In Stock, Qty 20+

0

539112169

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

539112170

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$74.99

$

In Stock, Qty 20+

0

539112196

Husqvarna 539112196

IDLER
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

539112198

Husqvarna 539112198

IDLER ARM

$121.99

$

In Stock, only 1 left!

0

539112238

Husqvarna 539112238

BELT SHIELD, RIGHT 42, ORG

$60.99

$

Usually ships in 3-10 days

0

539112240

Husqvarna 539112240

BELT SHIELD, LEFT 42, ORG

$60.99

$

Usually ships in 3-10 days

0

539112248

Husqvarna 539112248

DECK STOP

$15.99

$

Usually ships in 3-10 days

0

539112334

Husqvarna 539112334

BELT, DECK 42"

$113.99

$

Usually ships in 3-10 days

0

539112413

Husqvarna 539112413

CONFINEMENT.PLATE.42".BLACK

$40.99

$

Usually ships in 3-10 days

0

539112748

Husqvarna 539112748

Mower Deck Shell with Decals, 42"

$1282.99

$

Usually ships in 3-10 days

0

539976979

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539976998

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

539990187

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

539990209

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

539990316

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

539990365

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990550

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990582

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539990692

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539990799

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0
