EZ 4624 (968999688) - Husqvarna 46" Zero-Turn Mower (2008-08) CHASSIS / FRAME 2 Parts Diagram

46" Zero-Turn Mower

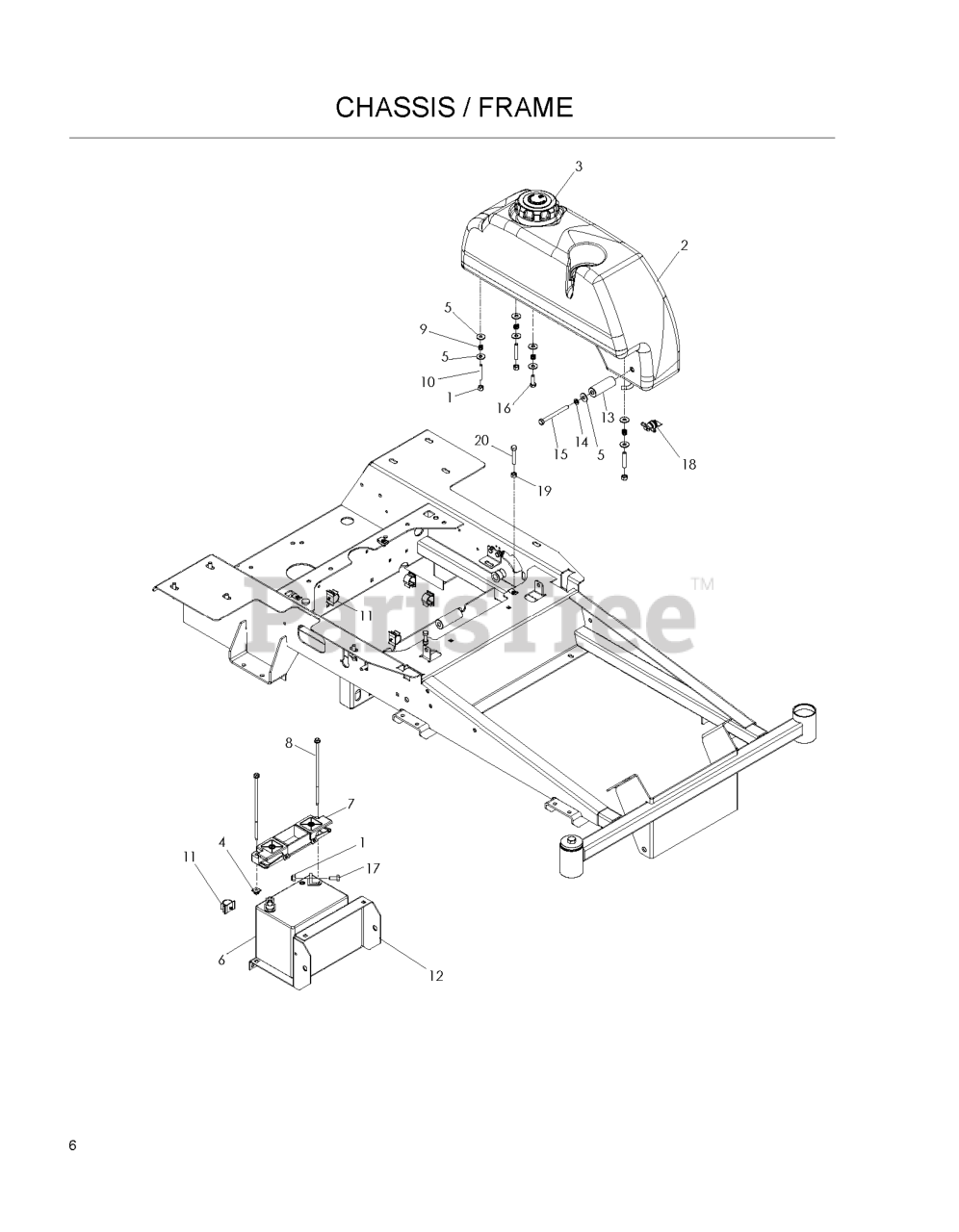

CHASSIS / FRAME 2 Parts Diagram

  • Title

6

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

16

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

9

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, Qty 7

0

18

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 4 left!

0

15

Husqvarna 539107270

BOLT - HCS 5/16C X 3.5

$

$

Not available

12

Husqvarna 539112408

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

Husqvarna 539113793

HARNESS, WIRING EZ

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990196

NUT 5/16C HEX

$1.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

Note: LEFT

$302.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, Qty 5

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$

$

Not available

17

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539112446

TANK SPACER

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539108394

HCS 5/16-18X1-3/4 TPBLT

Note: TPBL

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0
