EZ 4624 (968999688) - Husqvarna 46" Zero-Turn Mower (2008-08) MOWER DECK / CUTTING DECK Parts Diagram

46" Zero-Turn Mower

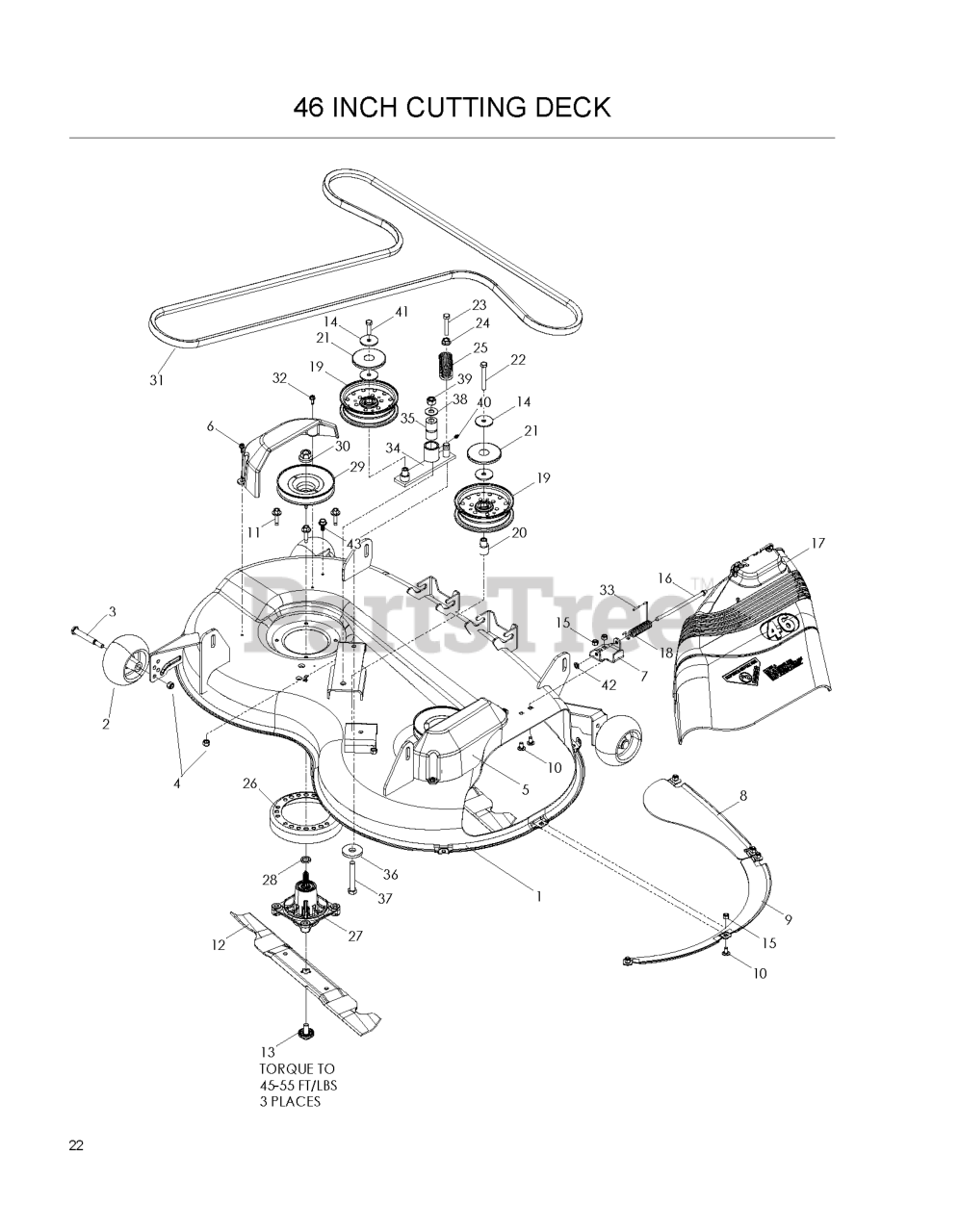

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

42

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 777405380

BLADE, 46" HI-LIFT
(Superseded to 532405380)

$20.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539106492

HEX SCREW 3/8-20 X 2.75

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539133027

SCREW, 3/8-16 X 3/4 THREAD CUT

$0.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

16

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

39

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

15

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 532403150

BAFFLE FRONT RH

Note: RIGHT

$11.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539131487

DECK W/DECALS 46" ORANGE

$

$

Not available

35

Husqvarna 539103427

PIVOT BUSHING

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, Qty 6

0

37

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

8

Husqvarna 532403149

BAFFLE CENTER FRONT

Note: FRONT

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

11

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

25

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

18

Husqvarna 539107609

TORSION SPRING

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539113962

RP.PULLEY, DECK
(Superseded to 588586601)

$22.99

$

In Stock, Qty 20+

0

31

Husqvarna 539113917

BELT, DECK

$

$

Not available

30

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 532405506

COVER.MANDREL.RH.46"

Note: RIGHT

$47.99

$

In Stock, Qty 11

0

27

Husqvarna 539107515

CUTTER HOUSING
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0

2

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

14

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539103230

IDLER ARM

$

$

Not available

38

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

26

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

32

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 9

0

6

Husqvarna 532405507

COVER.MANDREL.LH.46"

Note: LEFT

$47.99

$

In Stock, Qty 8

0
