EZ 4824 BF (968999697) - Husqvarna 48" Zero-Turn Mower (2008-08) 46 Inch Cutting Deck Parts Diagram

48" Zero-Turn Mower

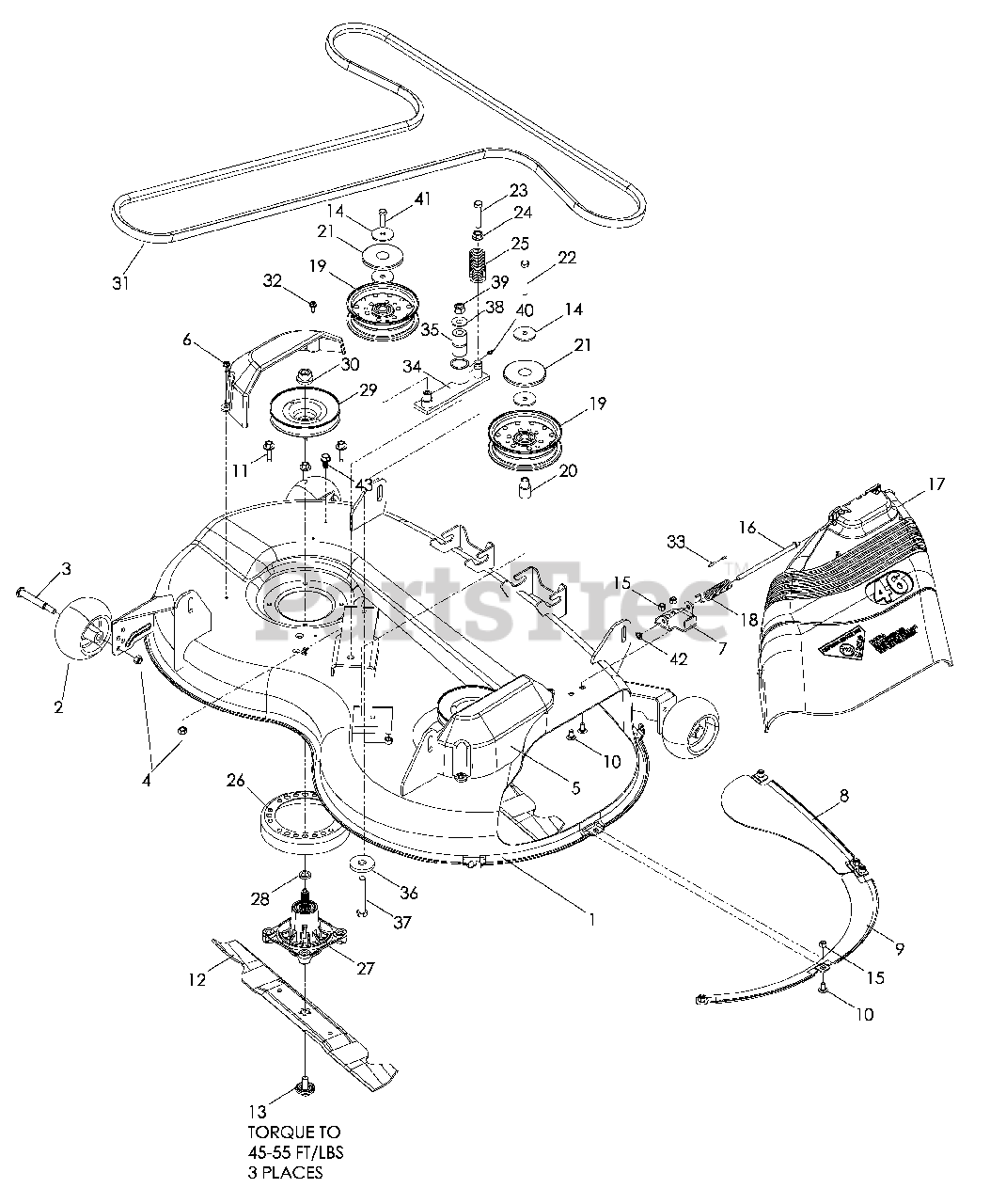

46 Inch Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539131487

DECK W/DECALS

$

$

Not available

2

Husqvarna 539107610

WHEEL GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107608

SB ½ x 25/8
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532405506

SHIELD, BELT, RIGHT

$47.99

$

In Stock, Qty 11

0

6

Husqvarna 532405507

SHIELD, BELT, LEFT

$47.99

$

In Stock, Qty 8

0

7

Husqvarna 532192557

BRACKET, DEFLECTOR

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 532403149

BAFFLE, FRONT

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532403150

BAFFLE, FRONT, RIGHT

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107630

SCREW 5/16-18 x 13/8 WSH HD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 777405380

BLADE 46" HI-LIFT
(Superseded to 532405380)

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532193003

BOLT, WASHER 7/16-20 UNF

$8.99

$

In Stock, Qty 20+

0

14

Husqvarna 539111897

WASHER 3/8 SPECIAL

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532405357

SHIELD, DEFLECTOR

$74.99

$

In Stock, Qty 9

0

18

Husqvarna 539107609

SPRING, TORSION

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, Qty 9

0

20

Husqvarna 539103295

BUSHING, IDLER

$9.99

$

In Stock, Qty 17

0

21

Husqvarna 539108450

TOP DUST CAP

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539106492

HCS 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 20+

0

26

Husqvarna 539107518

STRIPPER, ROUND
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539107515

CUTTER HOUSING
(Superseded to 587125201)

$40.99

$

In Stock, Qty 20+

0

28

Husqvarna 539107520

WASHER, SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

29

Husqvarna 539113962

PULLEY, DRIVEN
(Superseded to 588586601)

$22.99

$

In Stock, Qty 20+

0

30

Husqvarna 539107590

NUT 9/16 TOP CNTRLOCK
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 539113917

BELT, DECK

$

$

Not available

32

Husqvarna 539107631

SCREW ¼-20 x 5/8 THDROLL
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 539107627

CAP, SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539103230

ARM, IDLER

$

$

Not available

35

Husqvarna 539103427

BUSHING, PIVOT

$7.49

$

In Stock, Qty 6

0

36

Husqvarna 539102243

WASHER .65 SUPPORT

$

$

Not available

37

Husqvarna 539103433

HCS ½-13 x 3¼

$4.99

$

In Stock, Qty 11

0

38

Husqvarna 539990550

WASHER 9/16

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101331

NUT ½-13 NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

41

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, Qty 6

0

42

Husqvarna 539107626

PUSHNUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539133027

SCREW 3/8-16 x ¾ THD CUT

$0.99

$

Usually ships in 3-10 days

0
