EZ 4824 BF (968999697) - Husqvarna 48" Zero-Turn Mower (2008-08) Chassis / Frame Parts Diagram

48" Zero-Turn Mower

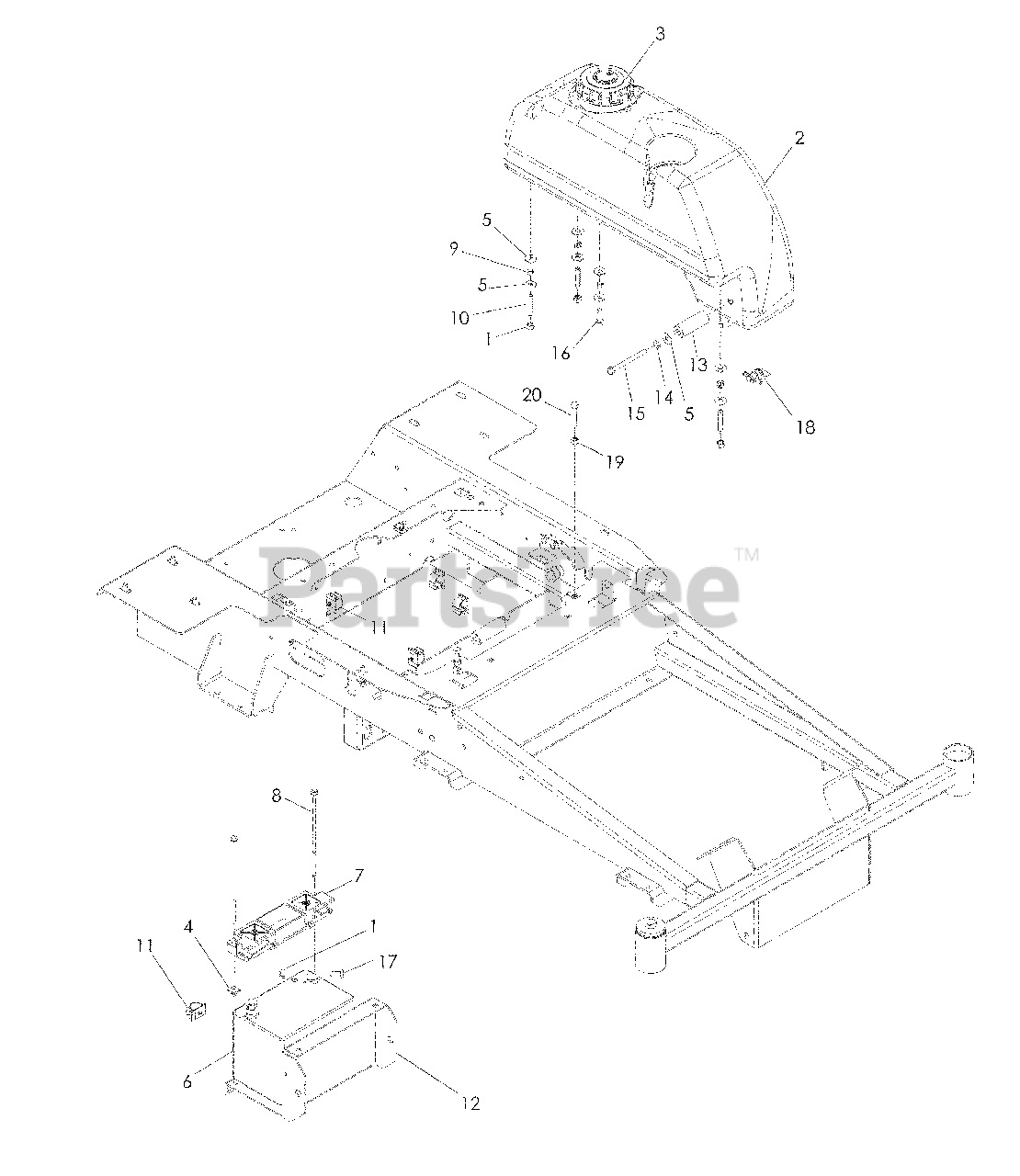

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

2

Husqvarna 539104409

FUEL TANK, LEFT

$302.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

In Stock, Qty 7

0

4

Husqvarna 539107629

PUSH NUT NYLON

$4.99

$

In Stock, Qty 7

0

5

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539102436

BATTERY
(Superseded to 579411601)

$

$

Not available

7

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 4 left!

0

8

Husqvarna 539107632

BOLT, ¼ x 7½

$

$

Not available

9

Husqvarna 539102845

SPRING, TANK MOUNT

$4.99

$

In Stock, only 3 left!

0

10

Husqvarna 539102502

TANK STUD, FUEL 5/16C

$10.99

$

In Stock, Qty 5

0

11

Husqvarna 539110815

PUSH MOUNT, WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

12

Husqvarna 539112408

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539112446

TANK SPACER

$1.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539107270

HCS 5/16-18 x 3½

$

$

Not available

16

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990196

NUT 5/16-18

$1.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539108394

HCS 5/16-18 x 1¾ TPBL

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539113793

WIRE HARNESS

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

Husqvarna 539110068

BATTERY CABLE, NEG

Note: NOT SHOWN

$

$

Not available
