EZ 4824 BF (968999697) - Husqvarna 48" Zero-Turn Mower (2008-08) Engine Parts Diagram

48" Zero-Turn Mower

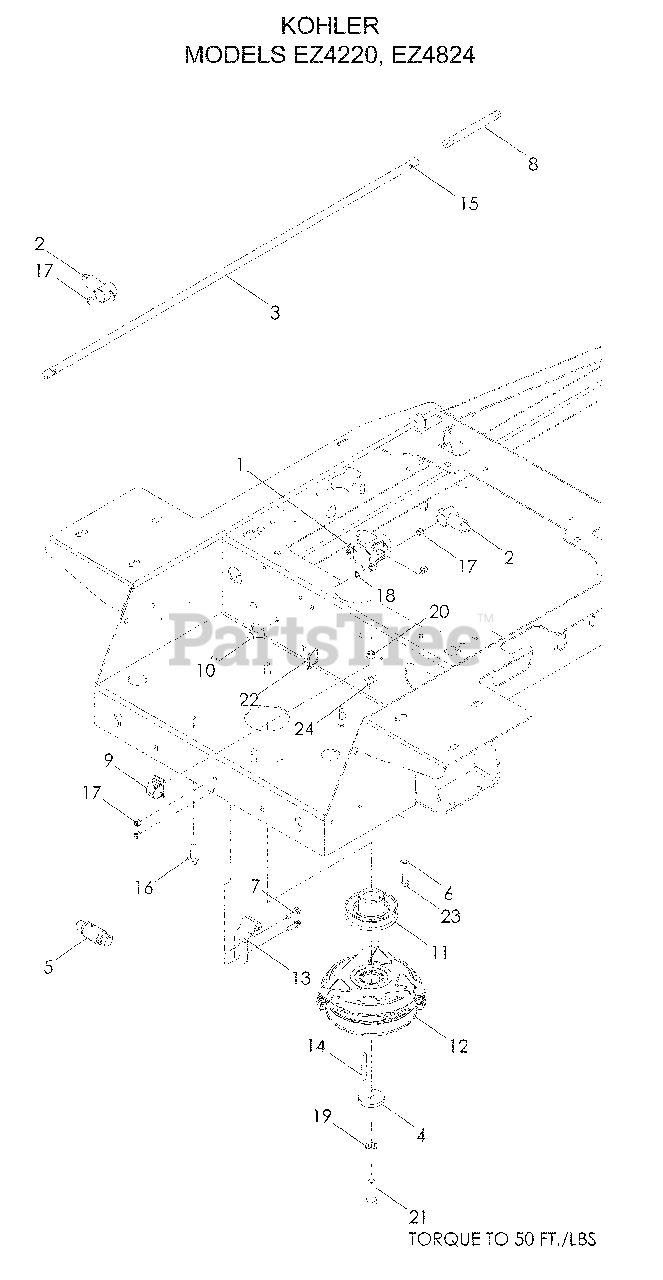

Engine Parts Diagram

  • Title

1

Husqvarna 539101714

SOLENOID

$26.99

$

In Stock, Qty 20+

0

2

Husqvarna 539102759

INSULATOR, BATTERY

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 539105280

FUEL LINE, 35"

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106504

WASHER .469

$

$

Not available

5

Husqvarna 539110093

PLUG OIL DRAIN
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

6

Husqvarna 539109556

WASHER 5/16 EXT STAR

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109800

RHSNB ¼-20 x 1
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 539110425

FUEL LINE, 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

9

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

10

Husqvarna 539111786

RHSSNB, ¼-20 x 5/8

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539113436

PULLEY, DRIVE
(Superseded to 525435002)

$

$

Not available

12

Husqvarna 539113437

CLUTCH

$484.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539113441

CLUTCH TIE DOWN

$

$

Not available

14

Husqvarna 539910210

KEY ¼ SQ x 2

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 539107476

BOLT, 3/8-16 x 1 THD FORM

$6.49

$

In Stock, only 3 left!

0

17

Husqvarna 539976978

NUT ¼-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990053

WASHER ¼

$3.99

$

In Stock, only 3 left!

0

19

Husqvarna 539990247

WASHER 7/16

$

$

Not available

20

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539100141

HCS 7/16-20 x 1½

$

$

Not available

22

Husqvarna 539976856

WIRE TIE

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

Husqvarna 539103306

CABLE, POSITIVE, LONG
(Superseded to 586108201)

Note: Not Shown

$8.99

$

In Stock, only 1 left!

0

Husqvarna 539107516

PIGTAIL, ENGINE

Note: Not Shown

$44.99

$

Usually ships in 3-10 days

0

Husqvarna 539105896

MUFFLER

Note: Not Shown

$364.99

$

Usually ships in 3-10 days

0
