EZ 4824 - Husqvarna 48" Zero-Turn Mower (2009-09) ENGINE PLATE Parts Diagram

48" Zero-Turn Mower

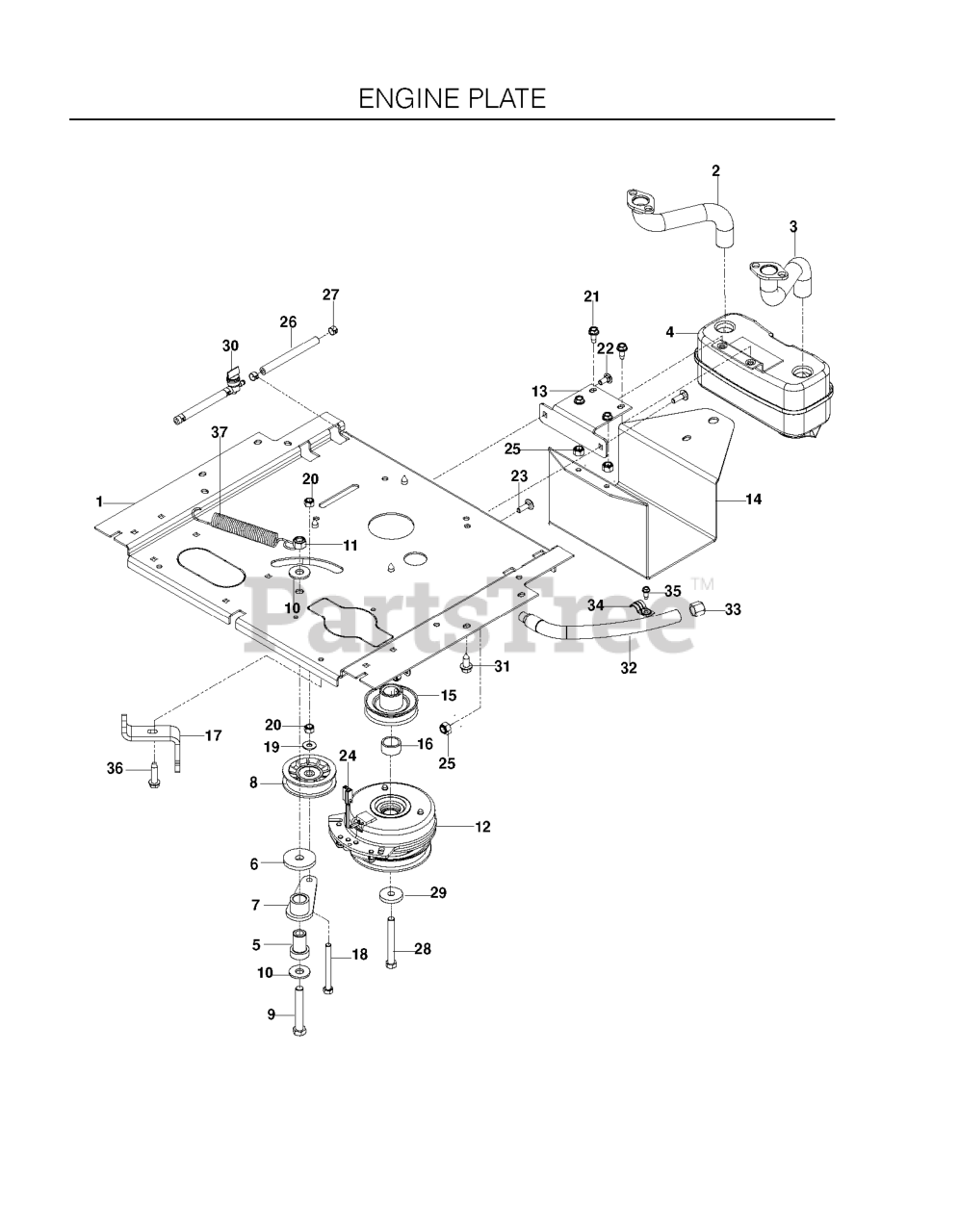

ENGINE PLATE Parts Diagram

  • Title

22

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 505287301

CLUTCH, 105 FT-LBS

$278.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539109389

HCS 3/8-16X3 1/2 GR5

$4.99

$

In Stock, Qty 8

0

8

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$13.99

$

In Stock, Qty 20+

0

31

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

17

Husqvarna 522459702

STOP, CLUTCH BLK

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

13

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

21

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

37

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

19

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

36

Husqvarna 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131604

MUFFLER ASM TWIN

$44.99

$

In Stock, Qty 19

0

33

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112092

RP.IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

10

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

2

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

Note: RT

$44.99

$

In Stock, only 4 left!

0

9

Husqvarna 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 11

0

5

Husqvarna 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 539112252

T & B SPACER

$

$

Not available

6

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, Qty 5

0

24

Husqvarna 539105637

CLUTCH HARNESS

$24.99

$

In Stock, Qty 6

0

15

Husqvarna 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, Qty 7

0

3

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

Note: LT

$31.99

$

In Stock, only 3 left!

0

25

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

1

Husqvarna 516007502

PLATE, ENGINE, BLACK

$160.99

$

Usually ships in 3-10 days

0
