EZC 4824 (965880201) - Husqvarna 48" Zero-Turn Mower (2009-01) Engine Plate Parts Diagram

48" Zero-Turn Mower

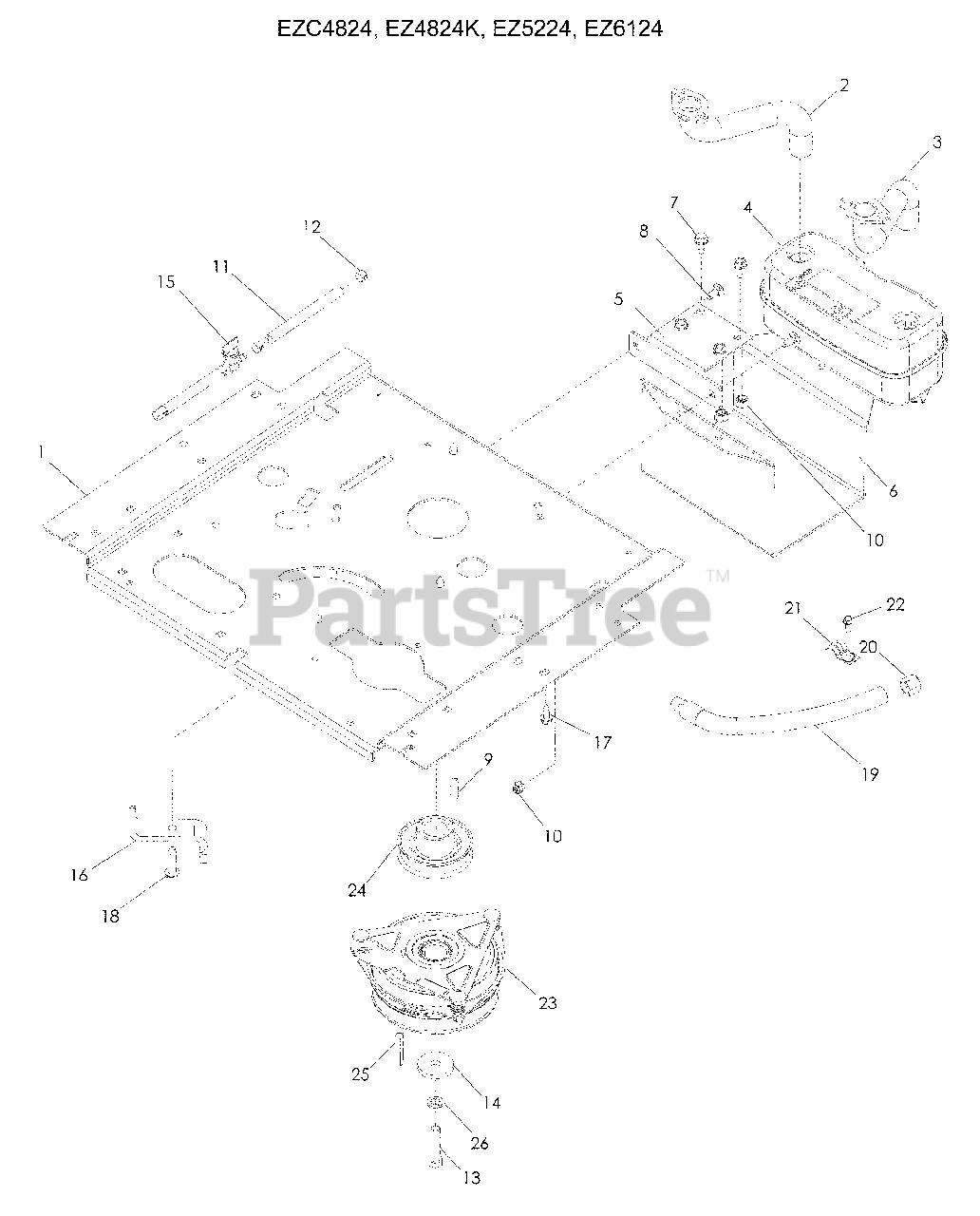

Engine Plate Parts Diagram

  • Title

1

Husqvarna 516007502

PLATE, ENGINE

$160.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532146699

EXHAUST TUBE, RT
(Superseded to 583954501)

$17.99

$

In Stock, Qty 10

0

3

Husqvarna 532146700

EXHAUST TUBE, LT
(Superseded to 583954801)

$17.99

$

In Stock, Qty 9

0

4

Husqvarna 539131604

MUFFLER ASM TWIN

$44.99

$

In Stock, Qty 18

0

5

Husqvarna 510260402

BRACKET, MUFFLER
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

6

Husqvarna 510260502

GUARD, MUFFLER

$91.99

$

In Stock, only 1 left!

0

7

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539105308

KEY ¼ SQ x 1

$4.99

$

In Stock, Qty 6

0

10

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

11

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

12

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 539111990

HCS 7/16-20 x 2 GR8

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

15

Husqvarna 539916325

VALVE, FUEL

$47.99

$

Usually ships in 3-10 days

0

16

Husqvarna 522459704

STOP, CLUTCH

$

$

Not available

17

Husqvarna 532120616

HHFS 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

18

Husqvarna 539110025

BOLT 3/8-16 x 1½ THD FRM

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101362

HOSE, DRAIN

$47.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101364

PLUG, OIL

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

22

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

23

Husqvarna 539113437

CLUTCH, 150 FT/LBS

$484.99

$

Usually ships in 3-10 days

0

24

Husqvarna 522506701

PULLEY, DRIVE

$72.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539910210

KEY ¼ SQ x 2

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available
