EZF 2101 DKU - Snapper Zero-Turn Mower, 21hp Kubota Rear PTO Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

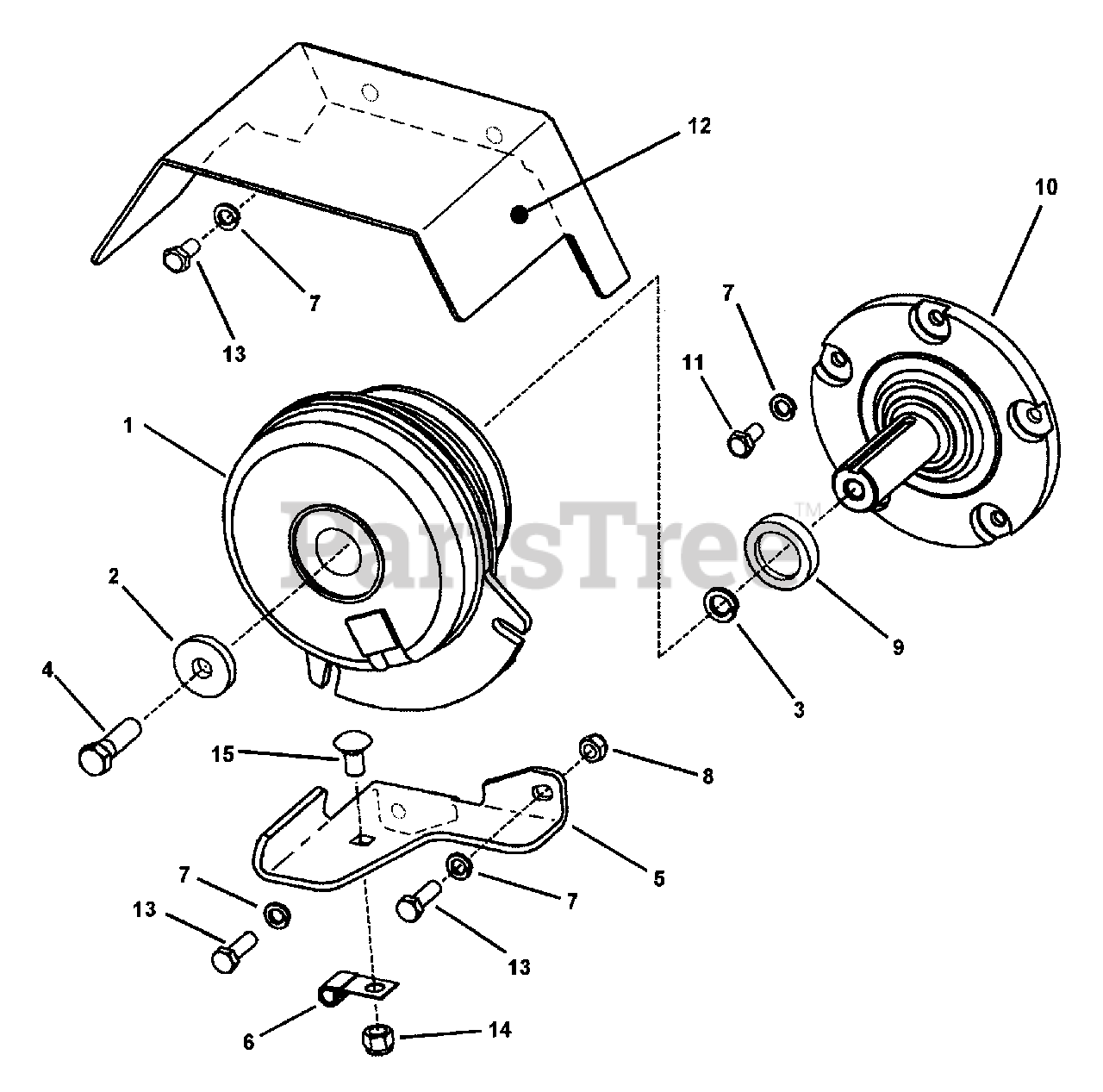

Rear PTO Assembly Parts Diagram

  • Title

1

Snapper 7058925

ELECTRIC CLUTCH
(Superseded to 7058925YP)

$658.99

$

Usually ships in 2-12 days

0

2

Snapper 7091807

SPACER, Clutch
(Superseded to 7091807SM)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 7091301

WASHER, 7/16 Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

4

Snapper 7091763

SCREW, 7/16-20 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 7091763YP)

$3.99

$

In Stock, only 1 left!

0

5

Snapper 7045253

BRACKET, Clutch Torque
(Superseded to 7045253YP)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7035638

J-CLIP, 3/8" Open Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7091315

WASHER, .32 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7076975

NUT, M8-1.25 Hex Nyloc
(Superseded to 7076975YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7045232

SPACER, Clutch
(Superseded to 7045232YP)

$17.99

$

Usually ships in 2-12 days

0

10

Snapper 7045231

SHAFT, PTO
(Superseded to 7045231YP)

$435.99

$

Usually ships in 2-12 days

0

11

Snapper 7091925

SCREW, M8-1.25 x 16mm Hex Head Cap
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7045293

BRACKET, Clutch Guard
(Superseded to 7045293YP)

$70.99

$

Usually ships in 2-12 days

0

13

Snapper 5025237X25

BOLT, M8-1.25 X 25MM GD8.8
(Superseded to 5025237X25YP)

Note: Was 91933

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

15

Snapper 7091923

BOLT, 3/8-16 x 3/4" Square neck Carriage
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0
