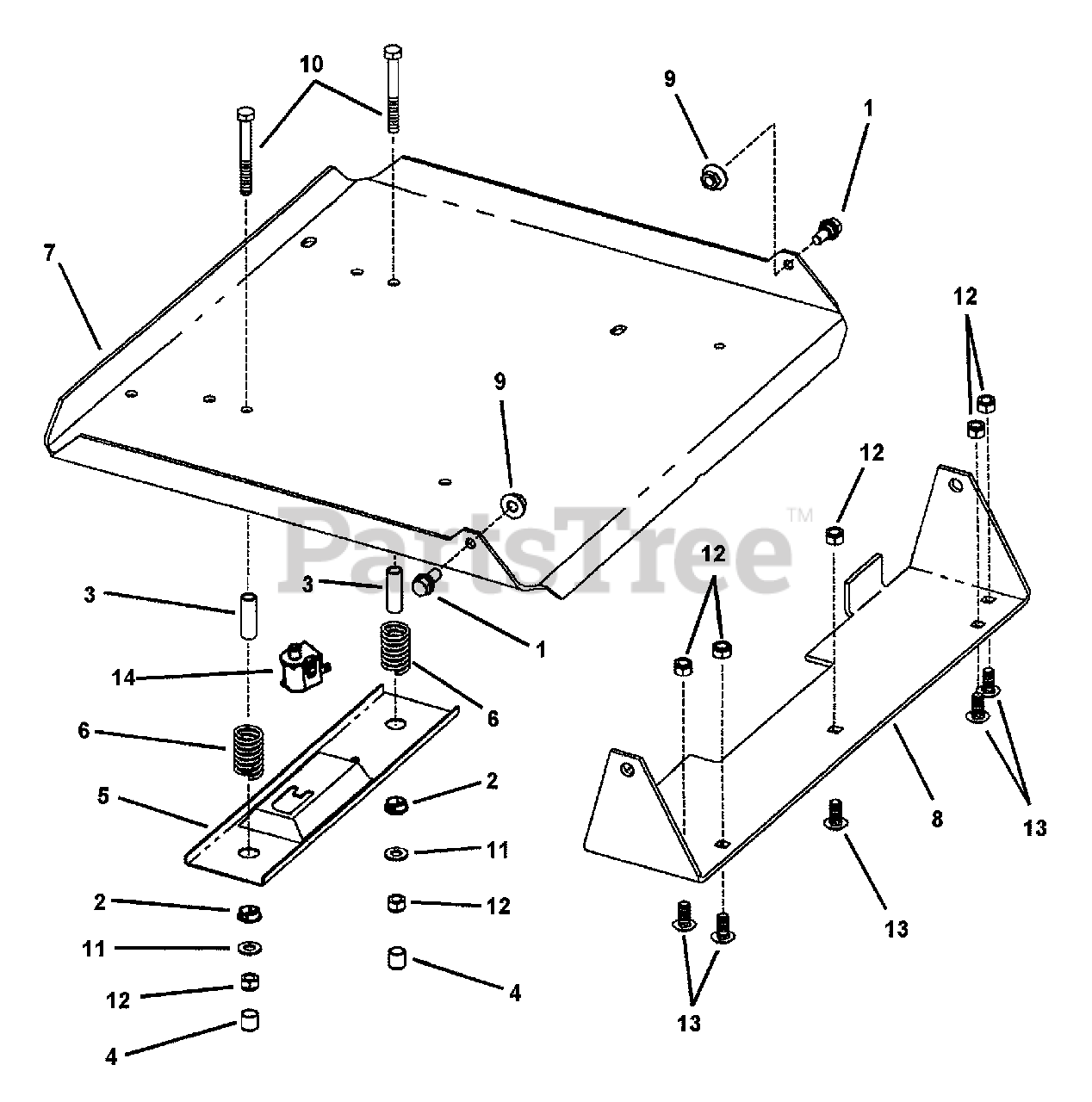

EZF 2101 DKU - Snapper Zero-Turn Mower, 21hp Kubota Seat Support Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

Seat Support Assembly Parts Diagram

  • Title

1

Snapper 7015761

BOLT, 5/16-18 Shoulder
(Superseded to 703839)

$5.49

$

In Stock, Qty 5

0

2

Snapper 7022793

BUSHING, Molded Seat, 1/2 I.D., 5/8" O.D.
(Superseded to 7022793YP)

$2.99

$

Usually ships in 2-12 days

0

3

Snapper 7022794

SPACER, .31 I.D., 1-3/8" Long
(Superseded to 7022794YP)

$26.99

$

In Stock, only 2 left!

0

4

Snapper 7023606

CAP, Vinyl, 1/4 I.D. x 1/5 O.D.
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

5

Snapper 7033362

HOLDER, Seat Switch
(Superseded to 7033362YP)

$23.99

$

Usually ships in 2-12 days

0

6

Snapper 7092007

SPRING
(Superseded to 7092007YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7072015

PLATE, Seat Mount
(Superseded to 7072015YP)

$138.99

$

Usually ships in 2-12 days

0

8

Snapper 7072034

BRACKET, Seat Hinge
(Superseded to 7072034YP)

$94.99

$

Usually ships in 2-12 days

0

9

Snapper 7090951

NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 19

0

10

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

In Stock, only 1 left!

0

11

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7091508

BOLT, 5/16-18 x 3/4 Short Neck. Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

Note: (Normally Open)

$8.99

$

In Stock, Qty 6

0
