F 125XT (5901334) - Ferris F125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Engine & PTO Group Parts Diagram

F125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

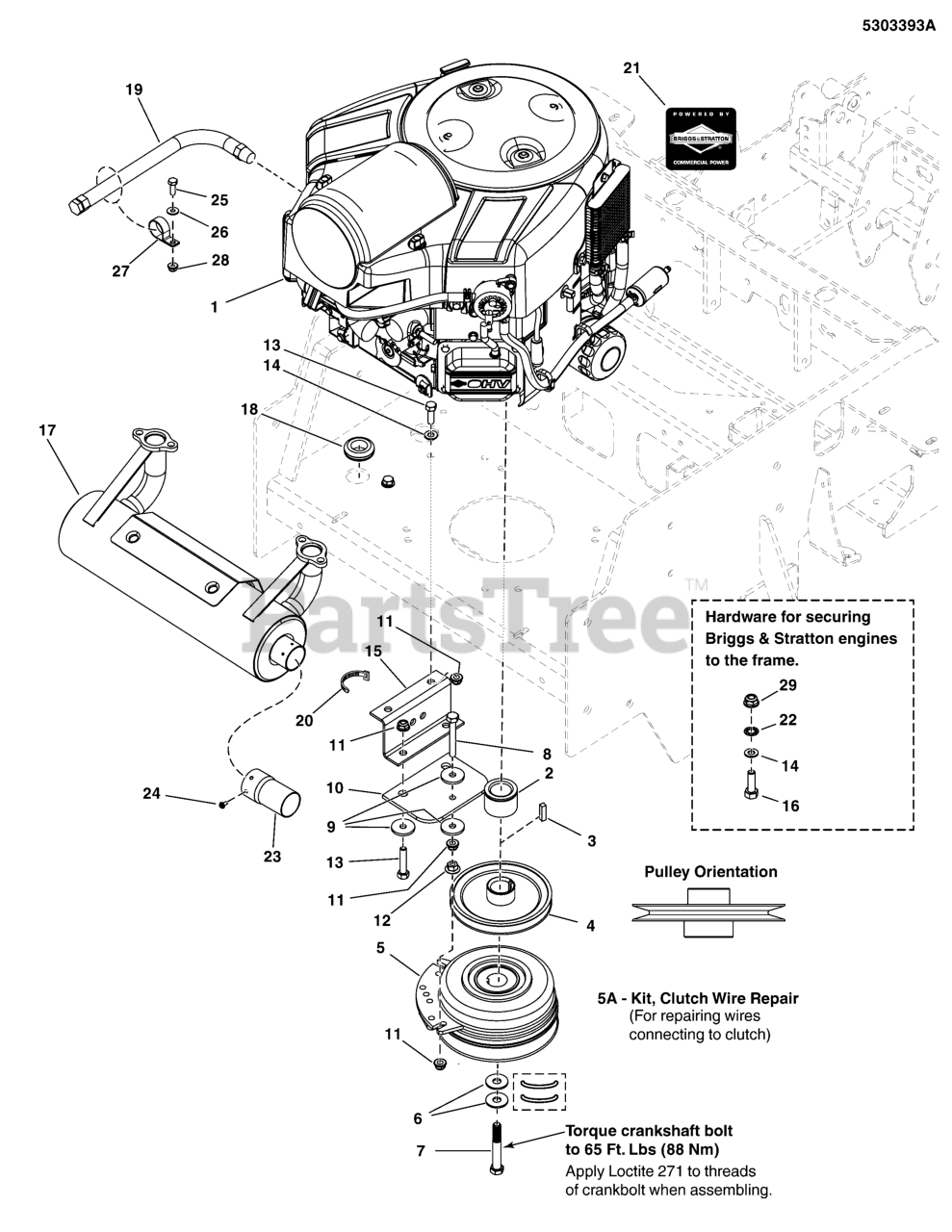

Engine & PTO Group Parts Diagram

  • Title

1

ENGINE, BRIGGS & STRATTON, 44T877 (25)

$

$

Not available

2

Ferris 5048136

SPACER, 1.13 X 1.75 X 1.25

$15.99

$

Usually ships in 2-12 days

0

3

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

Usually ships in 2-12 days

0

4

Ferris 5103558

PULLEY,CRANKSHAFT,1.125ID X 5.5OD A SECT
(Superseded to 5103558YP)

$55.99

$

Usually ships in 2-12 days

0

5

Ferris 5105090

CLUTCH,5218-221, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

5A

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

$66.99

$

Usually ships in 2-12 days

0

6

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 2 left!

0

7

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

Usually ships in 2-12 days

0

8

Ferris 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL, CZ
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5410367A

ANCHOR, CLUTCH, S125XT - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

16

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

$222.99

$

In Stock, only 2 left!

0

18

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

19

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

20

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

21

NO LONGER AVAILABLE - LABEL, BRIGGS & STRATTON LOGO

$

$

Not available

22

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

23

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

Note: (S/N: 2017322339 & Below)

$14.99

$

In Stock, only 1 left!

0

24

Ferris 5025470

SCREW,SELF-TAP,#8-32 X 3/8, WASH HEX, CZ
(Superseded to 5025470YP)

Note: (S/N: 2017322339 & Below)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

26

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5025616

NUT, 5/16-24, NYLOCK FLANGE, GD8, CZ
(Superseded to 5025616YP)

$3.99

$

Usually ships in 2-12 days

0
