F 150XT (5900517) - Ferris F150XT Series 52" Zero-Turn Mower, 26hp Kawasaki Instrument Control Panel Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 26hp Kawasaki

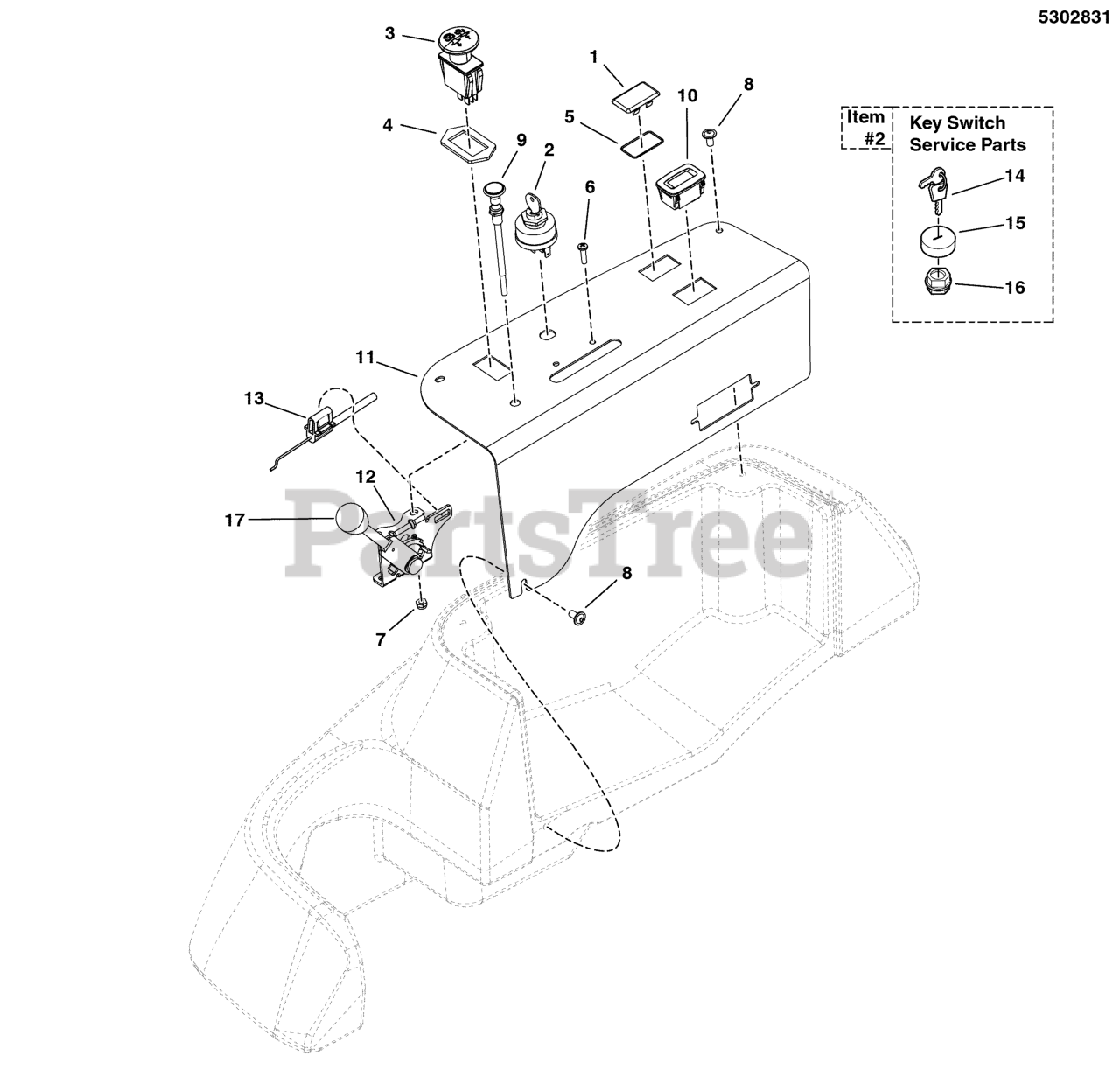

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 5

0

2

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

3

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 12

0

4

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, only 3 left!

0

9

Ferris 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

$40.99

$

Usually ships in 2-12 days

0

10

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & Above)(Refer to Note: *)

$

$

Not available

10

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

11

Ferris 5403402A

PLATE, CONTROL PANEL - BLK

$

$

Currently unavailable

12

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

13

Ferris 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$33.99

$

Usually ships in 2-12 days

0

14

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

15

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

16

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

Usually ships in 2-12 days

0
