F 150XT (5900517) - Ferris F150XT Series 52" Zero-Turn Mower, 26hp Kawasaki Parking Brake Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 26hp Kawasaki

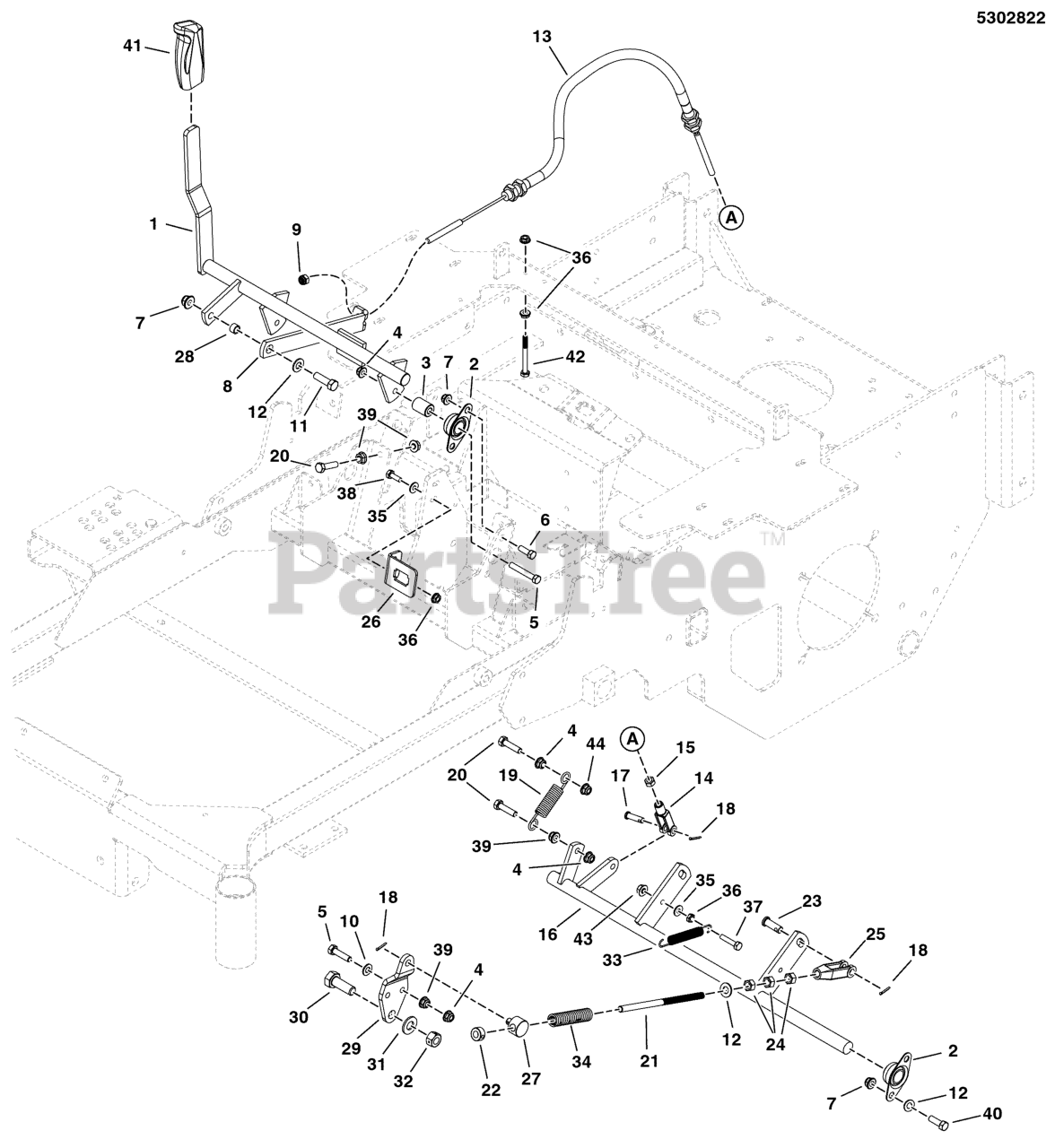

Parking Brake Group Parts Diagram

  • Title

1

Ferris 5407189A

WELD, BRAKE - BLK

$

$

Currently unavailable

2

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

3

Ferris 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

8

Ferris 5407401A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

9

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

12

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5100115

CABLE, PARKING BRAKE IS2000
(Superseded to 5100115SM)

$96.99

$

Usually ships in 2-12 days

0

14

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

15

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5408466A

WELD, BRAKE REAR - BLK

$

$

Currently unavailable

17

Ferris 5025213X8

PIN-CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

18

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

19

Ferris 5021242

SPRING, EXTENSION
(Superseded to 5021242SM)

$22.99

$

Usually ships in 2-12 days

0

20

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

21

Ferris 5103039

ROD, BRAKE ADJUSTMENT, CZ
(Superseded to 5103039YP)

$13.99

$

Usually ships in 2-12 days

0

22

Ferris 5010546

COLLAR, 3/8 SET
(Superseded to 5010546SM)

$5.99

$

Usually ships in 2-12 days

0

23

Ferris 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, CZ
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5101800

CLEVIS 3/8-24 STEEL
(Superseded to 5101800YP)

$10.99

$

Usually ships in 2-12 days

0

26

Ferris 5407335A

BRACKET, SWITCH MOUNT - BLK
(Superseded to 5407335AYP)

$7.99

$

Usually ships in 2-12 days

0

27

Ferris 5100985

ADJUSTER, BRAKE LINKAGE
(Superseded to 5100985YP)

$23.99

$

Usually ships in 2-12 days

0

28

Ferris 5102289

SPACER, .38 X .50 X .31, CZ
(Superseded to 5102289YP)

$6.49

$

Usually ships in 2-12 days

0

29

Ferris 5407361A

PLATE, BRAKE ARM EXTENSION - BLK

$

$

Currently unavailable

30

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

32

Ferris 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, only 1 left!

0

33

Ferris 5102692

SPRING, EXTENTION, .50 OD X 4.12 FL
(Superseded to 5102692YP)

$19.99

$

Usually ships in 2-12 days

0

34

Ferris 5023242

SPRING-COMP, .496ID X 3.00LG X .112WR
(Superseded to 5023242SM)

$6.99

$

In Stock, only 1 left!

0

35

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

36

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

37

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, Qty 9

0

38

Ferris 5025010X6

BOLT, 1/4-20 X 3/4, GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

39

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

40

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

41

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 1 left!

0

42

Ferris 5025011X30

BOLT, 5/16-18 X 3-3/4 GD5 YZ
(Superseded to 5025011X30SM)

$6.49

$

Usually ships in 2-12 days

0

43

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0
