F 150XT (5900517) - Ferris F150XT Series 52" Zero-Turn Mower, 26hp Kawasaki Seat & Kick Plate Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 26hp Kawasaki

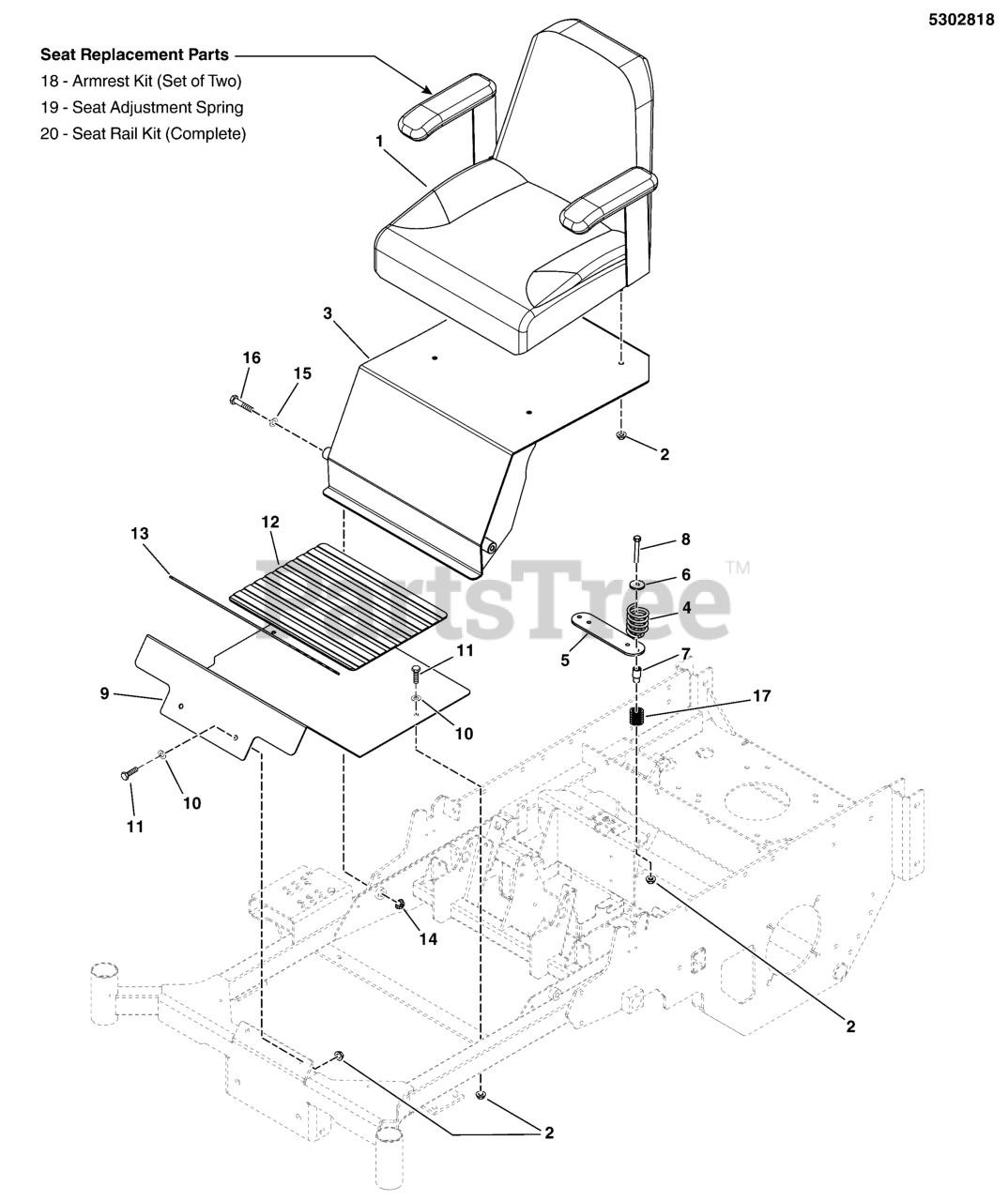

Seat & Kick Plate Group Parts Diagram

  • Title

1

Ferris 5061599

SEAT, XB-180, NO LOGO, BLACK

$

$

Not available

2

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5407355B

WELD, SEAT PLATE

$

$

Currently unavailable

4

Ferris 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

In Stock, only 2 left!

0

5

Ferris 5402732B

PLATE, SEAT SWITCH - RED

$13.99

$

Usually ships in 2-12 days

0

6

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

7

Ferris 5102228

SPACER, .33 X .66 X 1.31 SHLDR, CZ
(Superseded to 5102228YP)

$14.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5407403B

PLATE, FLOOR PAN - RED

$

$

Currently unavailable

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5101013

SAFETY WALK, 11.50 X 15.00
(Superseded to 5101013SM)

$30.99

$

Usually ships in 2-12 days

0

13

Ferris 5101011

SAFETY WALK, 8.00 X 15.00
(Superseded to 5101011SM)

$19.99

$

In Stock, only 1 left!

0

14

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

17

Ferris 5103070

SPRING COMP .76IDX1.5LGX.105WIRE BLACK
(Superseded to 5103070YP)

$9.99

$

Usually ships in 2-12 days

0

18

Ferris 1686907

ARM REST KIT (SET OF TWO) (SV)
(Superseded to 1686907SM)

$139.99

$

Usually ships in 2-12 days

0

19

Ferris 5100652

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$

$

Currently unavailable

20

Ferris 5061599X1

KIT, SEAT RAIL (COMPLETE) (SV)
(Superseded to 5061599X1SM)

$192.99

$

Usually ships in 2-12 days

0
