F 150XT (5900565) - Ferris F150XT Series 52" Zero-Turn Mower, 24hp Kawasaki Rear Bumper & ROPS Group Parts Diagram

F150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

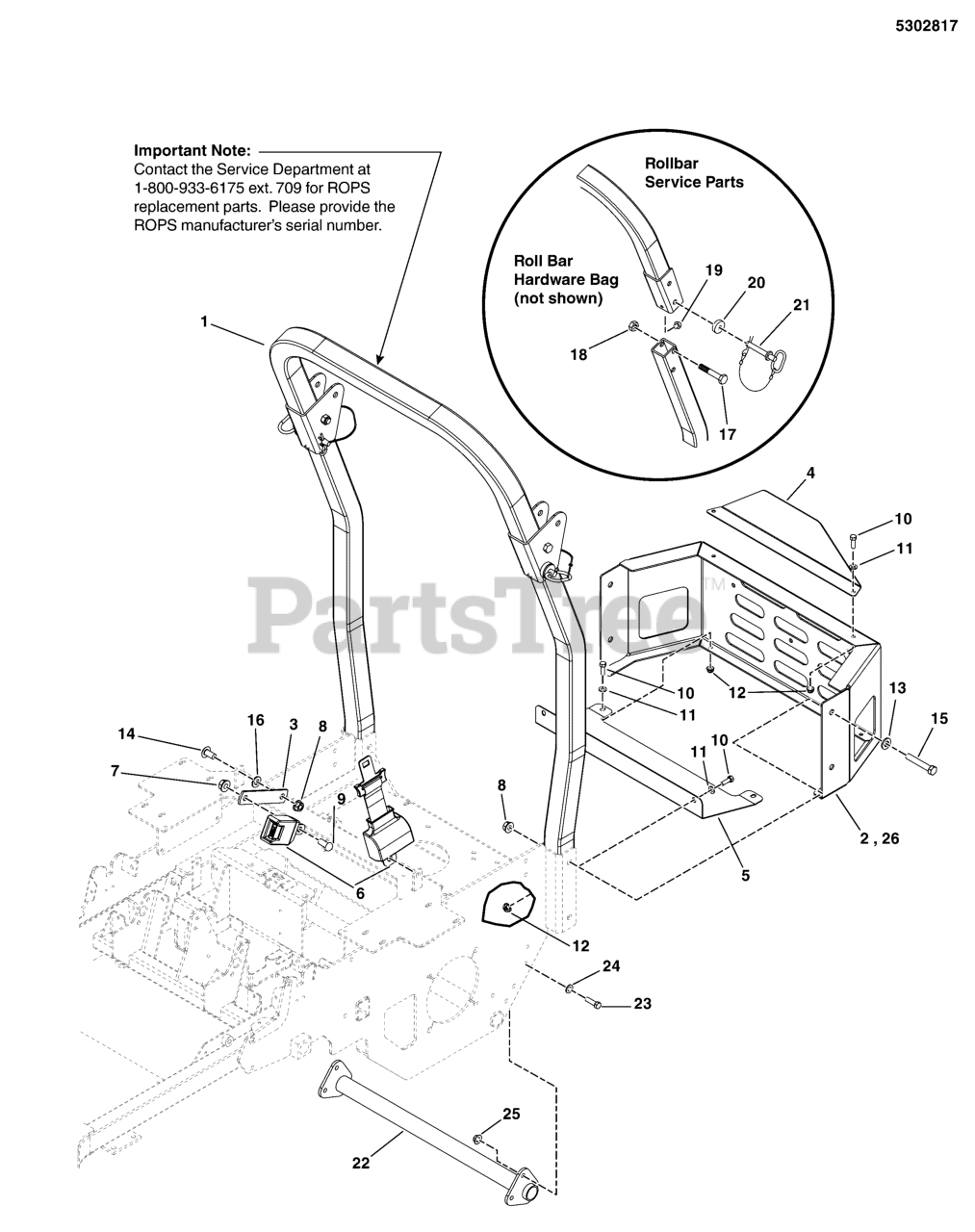

Rear Bumper & ROPS Group Parts Diagram

  • Title

1

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

2

Ferris 5407370B

WELD, PLATE, BUMPER - RED

Note: (S/N: 2016294925 & Below)

$

$

Currently unavailable

3

Ferris 5401044A

EXTENSION, SEAT BELT - BLK
(Superseded to 5401044AYP)

$6.99

$

Usually ships in 2-12 days

0

4

Ferris 5407585B

PLATE, CARB. SHIELD - RED

$

$

Currently unavailable

5

Ferris 5407405A

PLATE, HEAT SHIELD - BLK

$

$

Currently unavailable

6

Ferris 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

7

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

8

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 10

0

9

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

11

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

14

Ferris 5025018X10

BOLT, 1/2-20 X 1-1/4" GD5 CZ
(Superseded to 5025018X10SM)

$2.99

$

Usually ships in 2-12 days

0

15

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 3 left!

0

17

* BOLT (SV)

$

$

Not available

18

* NUT (SV)

$

$

Not available

19

Ferris 5100383

RUBBER BUMPER (SV)
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5100545

RUBBER WASHER (SV)

$

$

Currently unavailable

21

Ferris 5100079

PIN, HITCH, BLACK W/ PLASTIC LANYARD (SV)
(Superseded to 5100079SM)

$35.99

$

Usually ships in 2-12 days

0

22

Ferris 5407400B

WELD, BRAKE BUMPER - RED

$

$

Currently unavailable

23

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

24

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

26

Ferris 5410507B

WELD, PLATE BUMPER - RED

Note: (S/N: 2016294926 & Above)

$

$

Currently unavailable
