F 160Z (5901517) - Ferris F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki 48" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2017999044 & Below Parts Diagram

F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki

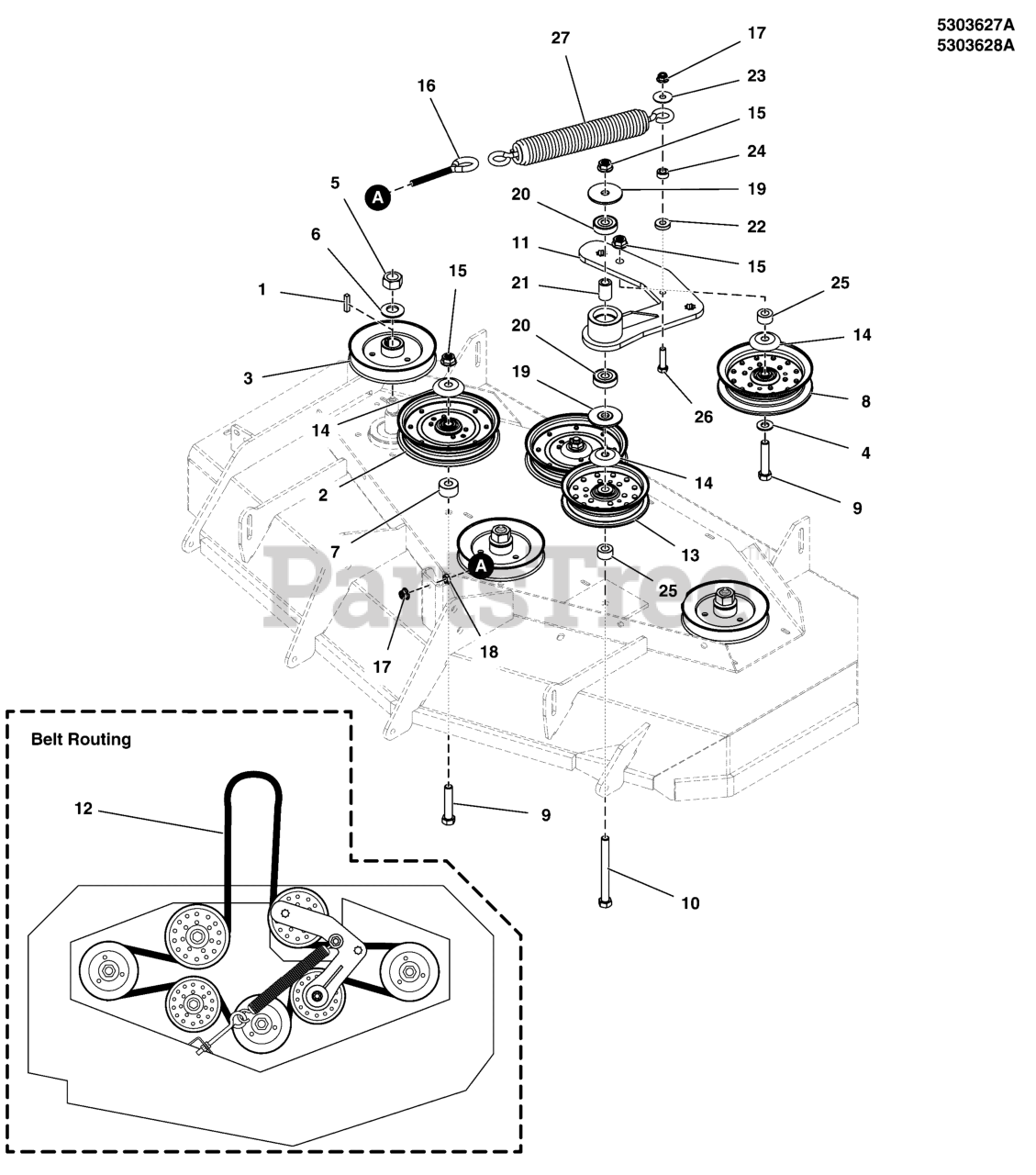

48" Mower Deck - Pulleys, Belt, & Idler Arm S/N: 2017999044 & Below Parts Diagram

  • Title

1

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 2 left!

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

3

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

Note: (48" Mower Decks)

$67.99

$

In Stock, only 1 left!

0

4

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

5

Ferris 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

7

Ferris 5047142

SPACER, .52 X 1.25 X .70, PM, CZ
(Superseded to 5047142SM)

$8.99

$

In Stock, only 1 left!

0

8

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

9

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, only 2 left!

0

10

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 6

0

11

Ferris 5412572A

WELD, IDLER ARM - BLK
(Superseded to 5415907A)

$165.99

$

Usually ships in 2-12 days

0

12

Ferris 5103392

BELT, 5V, 147.40"EL, LRG ARAMID,WRPD, RC
(Superseded to 5103392FS)

Note: (48" Mower Decks)

$110.99

$

In Stock, only 1 left!

0

13

Ferris 5101794

PULLEY, IDLER, 5" OD, 1" FACE, 5.75 FLANGE
(Superseded to 5101794YP)

Note: (48" Mower Decks)

$57.99

$

Usually ships in 2-12 days

0

14

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

15

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

16

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

Note: (48" Mower Decks)

$9.49

$

In Stock, only 1 left!

0

17

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

18

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

20

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 4 left!

0

21

Ferris 5104456

SPACER, .51 X .84 X 1.22, PM, CZ
(Superseded to 5104456YP)

$4.49

$

In Stock, only 1 left!

0

22

Ferris 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, only 4 left!

0

23

Ferris 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

24

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 1 left!

0

25

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

Usually ships in 2-12 days

0

26

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

In Stock, only 1 left!

0
