F 160Z (5901517) - Ferris F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki Fuel Tank & Mount Group Parts Diagram

F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki

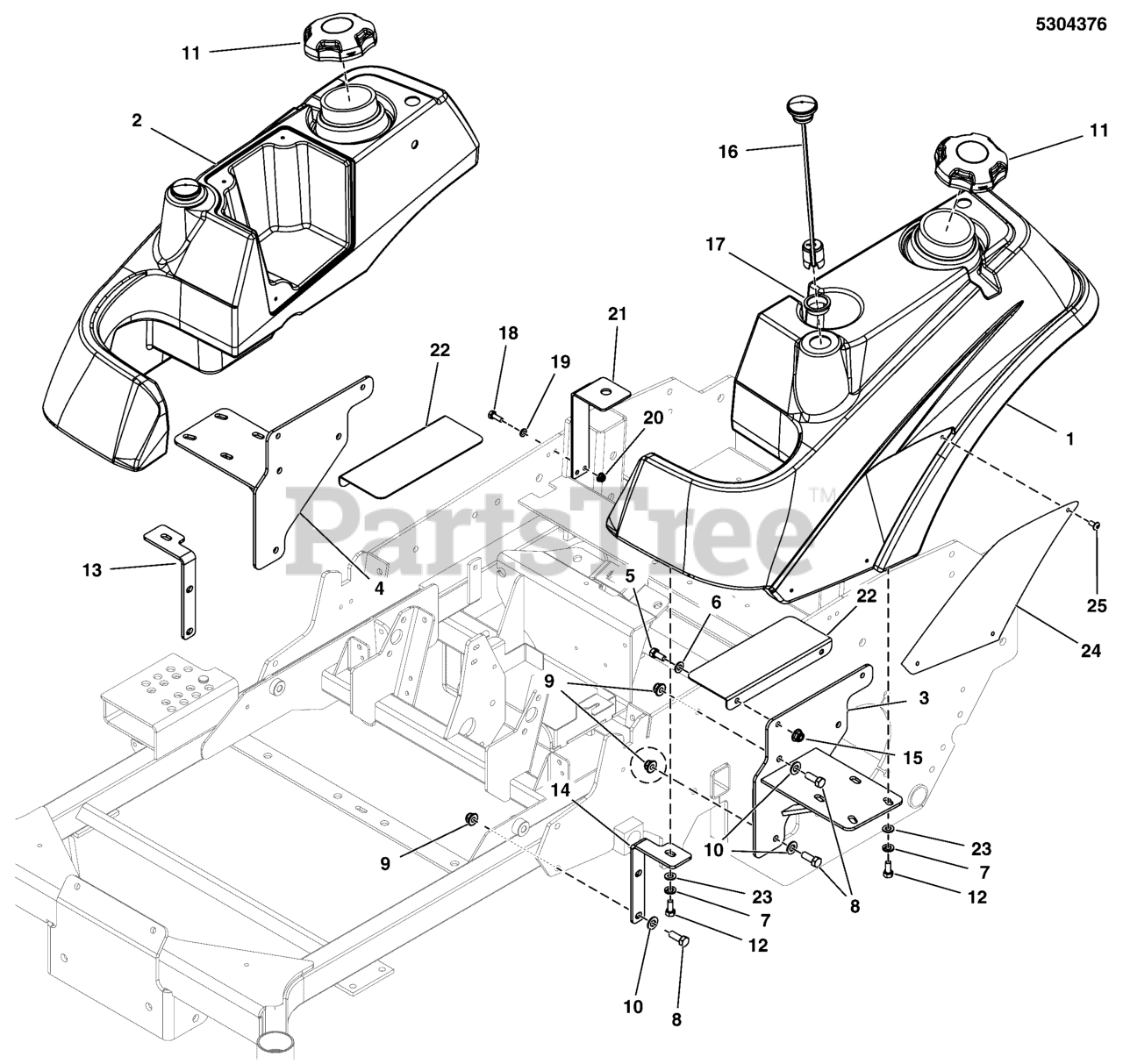

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5104726

TANK, FUEL, 5.75GAL, MED, Z-LH, LOW PERM
(Superseded to 5104726FS)

$480.99

$

Usually ships in 2-12 days

0

2

Ferris 5104727

TANK, FUEL, 5.00GAL, MED, Z-RH, LOW PERM
(Superseded to 5104727FS)

$414.99

$

Usually ships in 2-12 days

0

3

Ferris 5414596B

WELD, FUEL TANK MOUNT, F160Z LH - RED
(Superseded to 5414596BFS)

$73.99

$

Usually ships in 2-12 days

0

4

Ferris 5414597B

WELD, FUEL TANK MOUNT, F160Z RH - RED
(Superseded to 5414597BFS)

$73.99

$

Usually ships in 2-12 days

0

5

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 2 left!

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

13

Ferris 5414719B

PLATE, FRONT TANK MOUNT, F160Z, RH - RED
(Superseded to 5414719BFS)

$13.99

$

Usually ships in 2-12 days

0

14

Ferris 5414720B

PLATE, FRONT TANK MOUNT, F160Z, LH - RED
(Superseded to 5414720BFS)

$11.99

$

Usually ships in 2-12 days

0

15

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

Note: (SV)

$48.99

$

Usually ships in 2-12 days

0

17

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

Note: (SV)

$6.99

$

In Stock, only 1 left!

0

18

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5414668A

PLATE, FUEL SWITCH, F160Z - BLK

$10.99

$

Usually ships in 2-12 days

0

22

Ferris 5411695A

GUARD, FAN - BLK

$10.99

$

Usually ships in 2-12 days

0

23

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

24

Ferris 5400250B

PLATE, BADGE - IS1500 - RED
(Superseded to 5400250BFS)

$7.49

$

In Stock, only 2 left!

0

25

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0
