F 160Z (5901517) - Ferris F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki Rear Bumper & ROPS Group Parts Diagram

F160Z Series 48" Zero-Turn Mower, 24hp Kawasaki

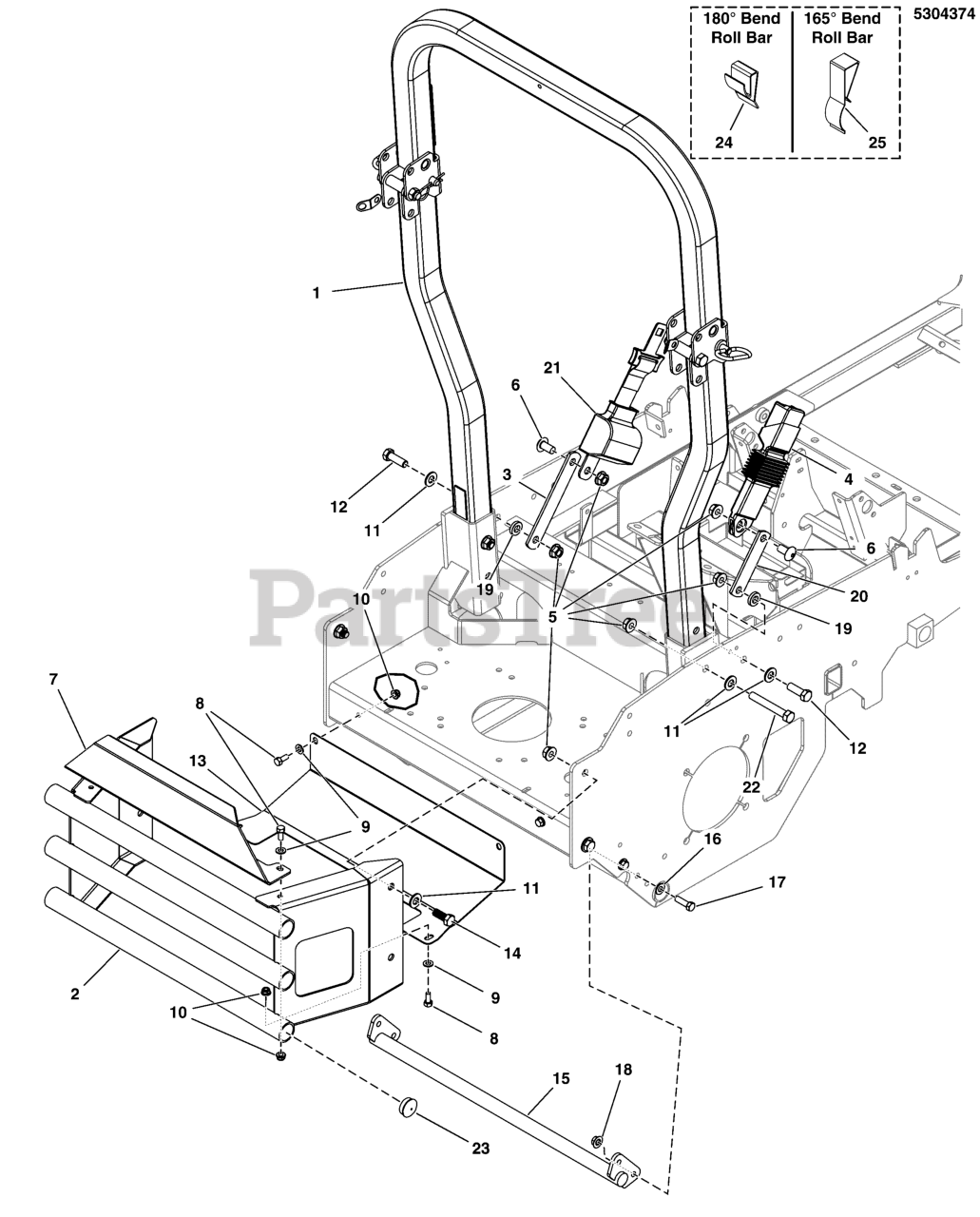

Rear Bumper & ROPS Group Parts Diagram

  • Title

1

ROLL BAR

Note: (Refer to Note: *)

$

$

Not available

2

Ferris 5414644B

WELD, BUMPER, F160Z - RED
(Superseded to 5414644BFS)

$254.99

$

Usually ships in 2-12 days

0

3

Ferris 5410295A

BAR, MOUNT, SEAT BELT, IS700Z - BLK
(Superseded to 5410295AYP)

Note: (S/N: 4000051453 and below)

$7.49

$

Usually ships in 2-12 days

0

4

Ferris 5105137

SEAT BELT ASSM, RETRACTOR + SUP SLEEVE
(Superseded to 5105137YP)

Note: (S/N: 4000051453 and below)

$130.99

$

Usually ships in 2-12 days

0

5

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (Qty: 12 - S/N: 4000051453 and below)

$3.49

$

In Stock, Qty 12

0

6

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

Note: (S/N: 4000051453 and below)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5414688B

PLATE, CARB PROTECTOR, F160Z - RED
(Superseded to 5414688BFS)

$44.99

$

Usually ships in 2-12 days

0

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (Qty: 9 - S/N: 4000051453 and below)

$3.99

$

In Stock, Qty 13

0

12

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5414689A

PLATE, HEAT SHIELD, F160Z - BLK

$43.99

$

Usually ships in 2-12 days

0

14

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5411945B

WELD, BUMPER, REAR BRAKE - RED
(Superseded to 5411945BFS)

$96.99

$

Usually ships in 2-12 days

0

16

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

18

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

Note: (S/N: 4000051453 and below)

$6.49

$

Usually ships in 2-12 days

0

20

Ferris 5401044A

EXTENSION, SEAT BELT - BLK
(Superseded to 5401044AYP)

Note: (S/N: 4000051453 and below)

$6.99

$

Usually ships in 2-12 days

0

21

ORDER P/N 5105137 (CONTAINS BOTH SEAT BELT RETRACTOR & SUPER SLEEVE BUCKLE)

Note: (S/N: 4000051453 and below)

$

$

Not available

22

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

Usually ships in 2-12 days

0

23

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5103403X1

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5105140X1

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0
