F 160Z (5901686) - Ferris F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki 52" Mower Deck - Housing, Cover, Spindles & Blades (Export) Parts Diagram

F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki

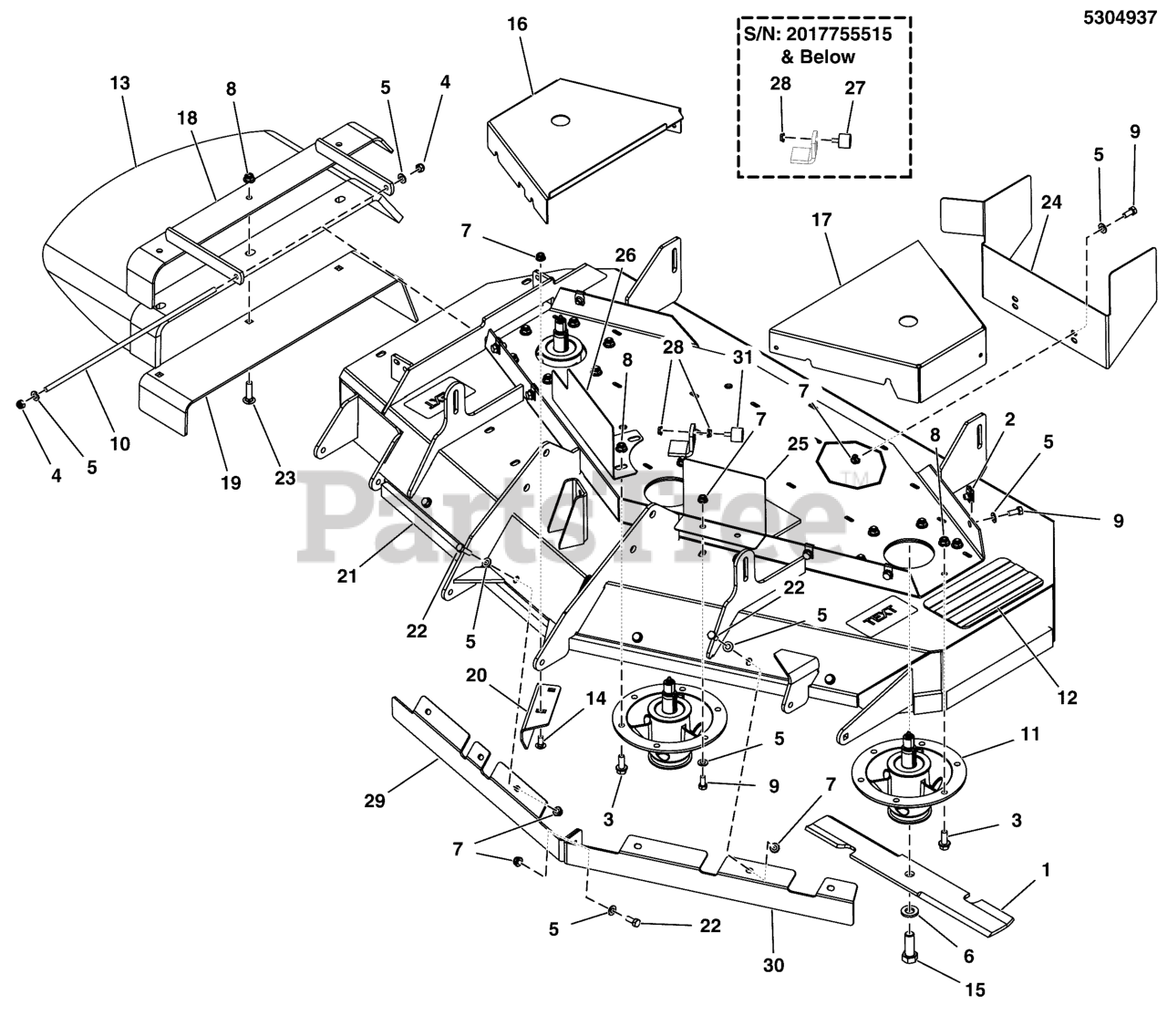

52" Mower Deck - Housing, Cover, Spindles & Blades (Export) Parts Diagram

  • Title

1

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

Note: (SET OF 3 BLADES)

$

$

Currently unavailable

2

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

3

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

9

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

10

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

12

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

13

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

Note: (5104442)

$160.99

$

Usually ships in 2-12 days

0

14

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5416282B

PLATE, DECK PULLEY GUARD, RH - RED

$

$

Currently unavailable

17

Ferris 5416283B

PLATE, DECK, PULLEY GUARD, LH - RED

$

$

Currently unavailable

18

Ferris 5416256A

WELD, CHUTE MOUNT, CE - BLK

$

$

Currently unavailable

19

Ferris 5416257A

SUPPORT, DISCHARGE CHUTE, CE - BLK

$

$

Currently unavailable

20

Ferris 5407983A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5407983AYP)

$16.99

$

Usually ships in 2-12 days

0

21

Ferris 5601054

DECK SHELL W/DECALS, F160ZCE-52 (5416312B)

$

$

Currently unavailable

22

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5416279B

PLATE, REAR DECK BELT GUARD - RED

$

$

Currently unavailable

25

Ferris 5416280B

PLATE, FRONT DECK GUARD, LH - RED

$

$

Currently unavailable

26

Ferris 5416281B

PLATE, FRONT DECK GUARD, RH - RED

$

$

Currently unavailable

27

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

Note: (S/N: 2017755515 & Below)

$18.99

$

Usually ships in 2-12 days

0

28

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (Qty: 1 - S/N: 2017755515 & Below)

$4.49

$

Usually ships in 2-12 days

0

29

Ferris 5414590B

BAFFLE, FRONT DISCHARGE RH - RED
(Superseded to 5414590BFS)

$30.99

$

Usually ships in 2-12 days

0

30

Ferris 5414591B

BAFFLE, FRONT DISCHARGE LH - RED
(Superseded to 5414591BFS)

$30.99

$

Usually ships in 2-12 days

0

31

Ferris 5105237

BUMPER, RUBBER, 1/4-20 X 7/8" STUD
(Superseded to 5105237YP)

Note: (S/N: 2017755516 & Above)

$6.99

$

Usually ships in 2-12 days

0
