F 160Z (5901686) - Ferris F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki CE Guarding - Parking Brake Components Parts Diagram

F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki

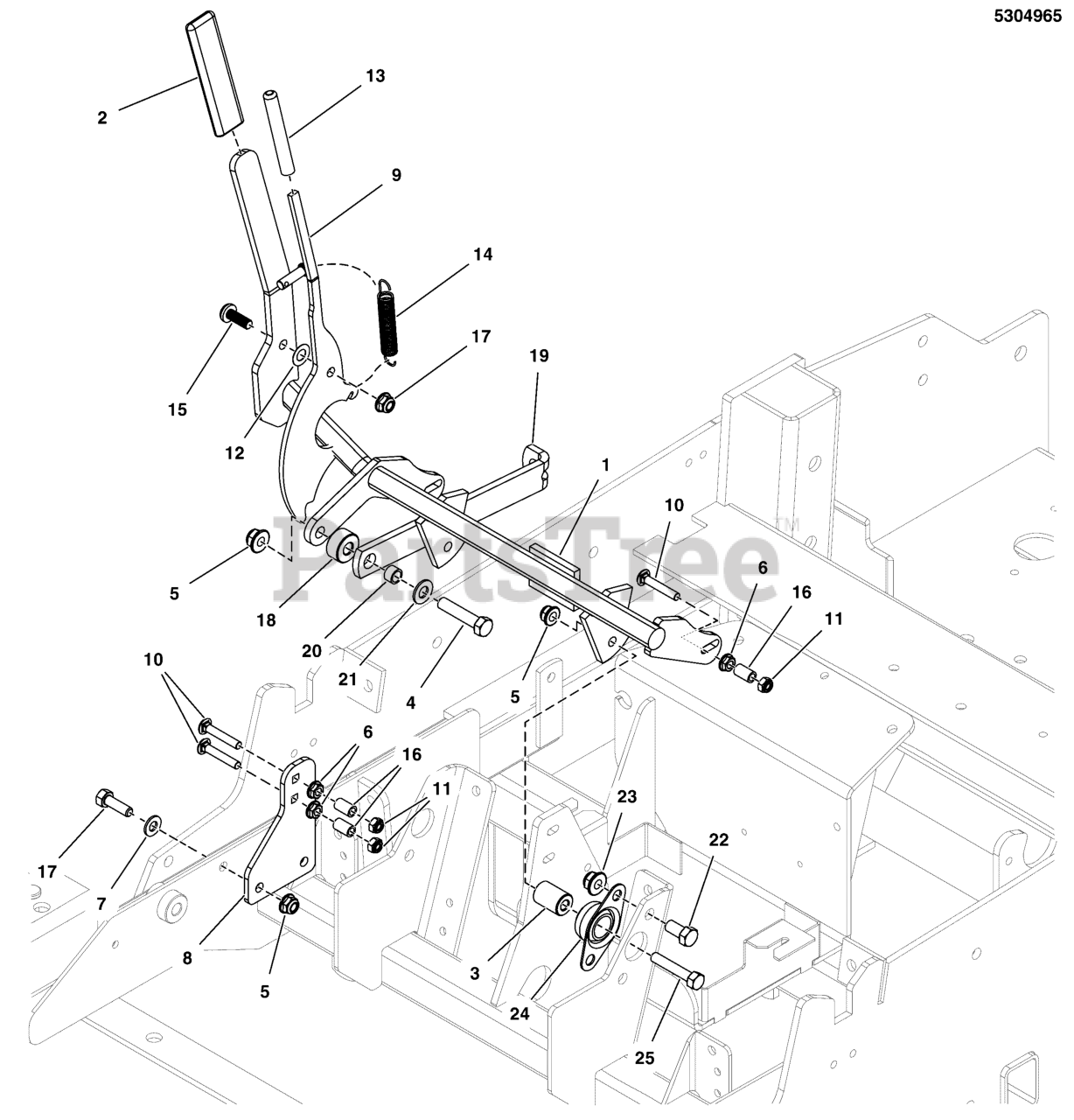

CE Guarding - Parking Brake Components Parts Diagram

  • Title

1

Ferris 5416193A

WELD, BRAKE SHAFT, F160 CE - BLK

$

$

Currently unavailable

2

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, only 1 left!

0

3

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5416225A

PLATE, CE BRAKE LOCK TAB - BLK

$

$

Currently unavailable

9

Ferris 5414527A

LEVER, BRAKE, IS2600 EU - BLK

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 80003564

BOLT, 1/4-20 X 1.500, GR5, SQ, ZINC/CLEAR
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

12

Ferris 5023202

WASHER,WAVE,M10
(Superseded to 5023202SM)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5023198

COVER, VINYL HANDLE
(Superseded to 5023198SM)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

15

Ferris 1960086

SCREW, TRUSS HD TORX DR5/16-18X0.875 BLK
(Superseded to 1960086SM)

$4.99

$

In Stock, Qty 5

0

16

Ferris 5041483

SPACER, .52 X .38 X .63, CZ
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

17

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5044960

SPACER, .39 X 1.00 X .25, PM, CZ
(Superseded to 5044960SM)

$5.49

$

In Stock, only 2 left!

0

19

Ferris 5407401A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

20

Ferris 5102289

SPACER, .38 X .50 X .31, CZ
(Superseded to 5102289YP)

$6.49

$

Usually ships in 2-12 days

0

21

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

24

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

25

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0
