F 160Z (5901686) - Ferris F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki CE Guarding - Zero-Turn Rider Parts Diagram

F160Z Series 52" Zero-Turn Mower, 24hp Kawasaki

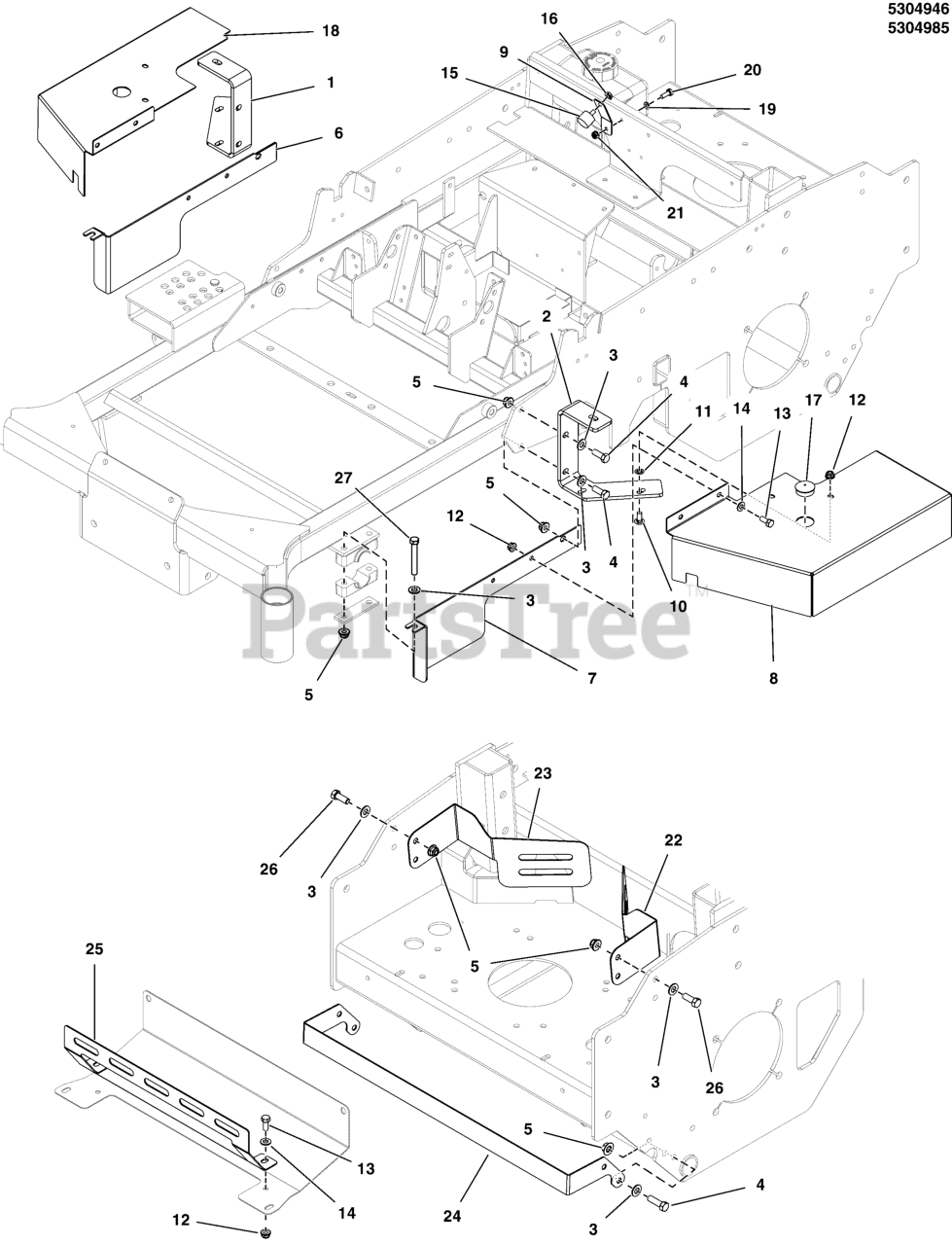

CE Guarding - Zero-Turn Rider Parts Diagram

  • Title

1

Ferris 5416285B

BRACKET, TANK MOUNT, RH - RED

$

$

Currently unavailable

2

Ferris 5416288B

BRACKET, TANK MOUNT, LH - RED

$

$

Currently unavailable

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

5

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 7

0

6

Ferris 5416284B

PLATE, GUARD MOUNT, RH - RED

$

$

Currently unavailable

7

Ferris 5416287B

PLATE, GUARD MOUNT, LH - RED

$

$

Currently unavailable

8

Ferris 5416289B

PLATE, DECK GUARD, LH - RED

$

$

Currently unavailable

9

Ferris 5416292A

TAB, SEAT LOCK BRACKET - BLK

$

$

Currently unavailable

10

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

14

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Ferris 5022673

BUMPER, RUBBER 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

16

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5023484

PLUG, PANEL, 1.25 BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5416286B

PLATE, DECK GUARD, RH

$

$

Currently unavailable

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025010X6

BOLT, 1/4-20, GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

21

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5416376B

PLATE, FAN GUARD, RH - RED

$

$

Currently unavailable

23

Ferris 5416375B

PLATE, FAN GUARD, LH - RED

$

$

Currently unavailable

24

Ferris 5416278B

PLATE, CLUTCH GUARD, REAR - RED

$

$

Currently unavailable

25

Ferris 5416394A

PLATE, MUFFLER SHIELD, CE - BLK

$

$

Currently unavailable

26

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

27

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0
