F 20 - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

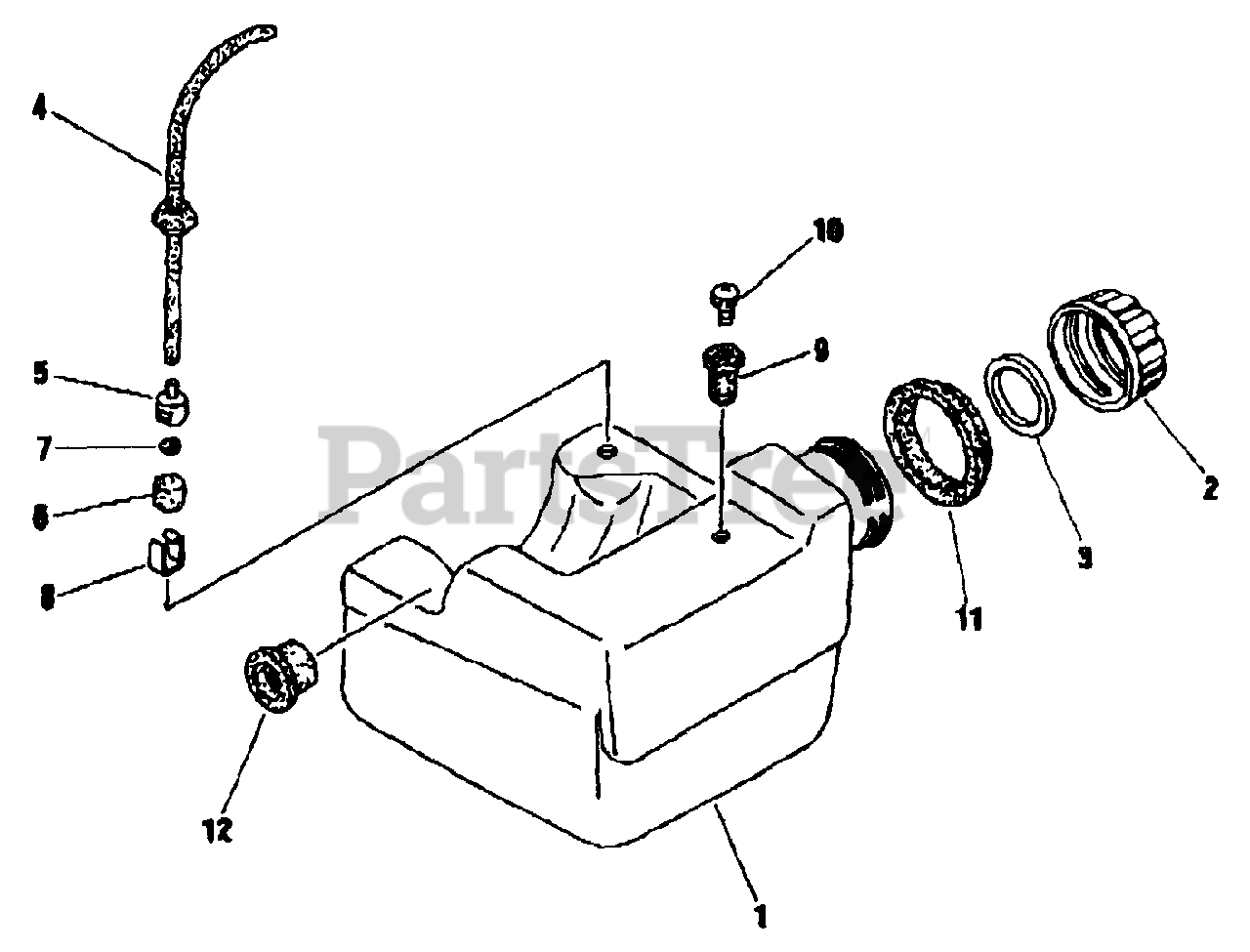

Fuel Tank Parts Diagram

  • Title

Echo 70030-85000

FUEL TANK ASSY

$

$

Currently unavailable

1

Echo 70030-85110

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

Echo 70030-85200

CAP ASSY

$

$

Currently unavailable

2

CAP, FUEL

Note: Order P/N 70030-85200

$

$

Not available

3

Echo 70030-85220

GASKET, CAP
(Superseded to 70030-85221)

$1.99

$

In Stock, only 3 left!

0

4

Echo 70030-85300

FUEL PIPE ASSY
(Superseded to 70029-85302)

$

$

Not available

Echo 70030-85400

FUEL FILTER ASSY

$

$

Currently unavailable

5

Echo 70030-85410

WEIGHT, FUEL FILTER

$

$

Currently unavailable

6

Echo 70030-85420

ELEMENT, FILTER - LARGE
(Superseded to A371000020)

$2.99

$

In Stock, only 3 left!

0

7

Echo 70030-85430

ELEMENT, FILTER - SMALL

$

$

Currently unavailable

8

Echo 70030-85440

CLIP

$1.99

$

In Stock, only 2 left!

0

Echo 70030-85500

VENT, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

9

------------------

BODY, BREATHER

Note: Order P/N 70030-85500

$

$

Not available

10

Echo 01211-03060

SCREW - 3X6

$

$

Currently unavailable

11

Echo 70030-86110

CUSHION

$0.99

$

Usually ships in 2-4 days

0

12

Echo 70030-86120

CUSHION
(Superseded to Discontinued)

$

$

Not available
