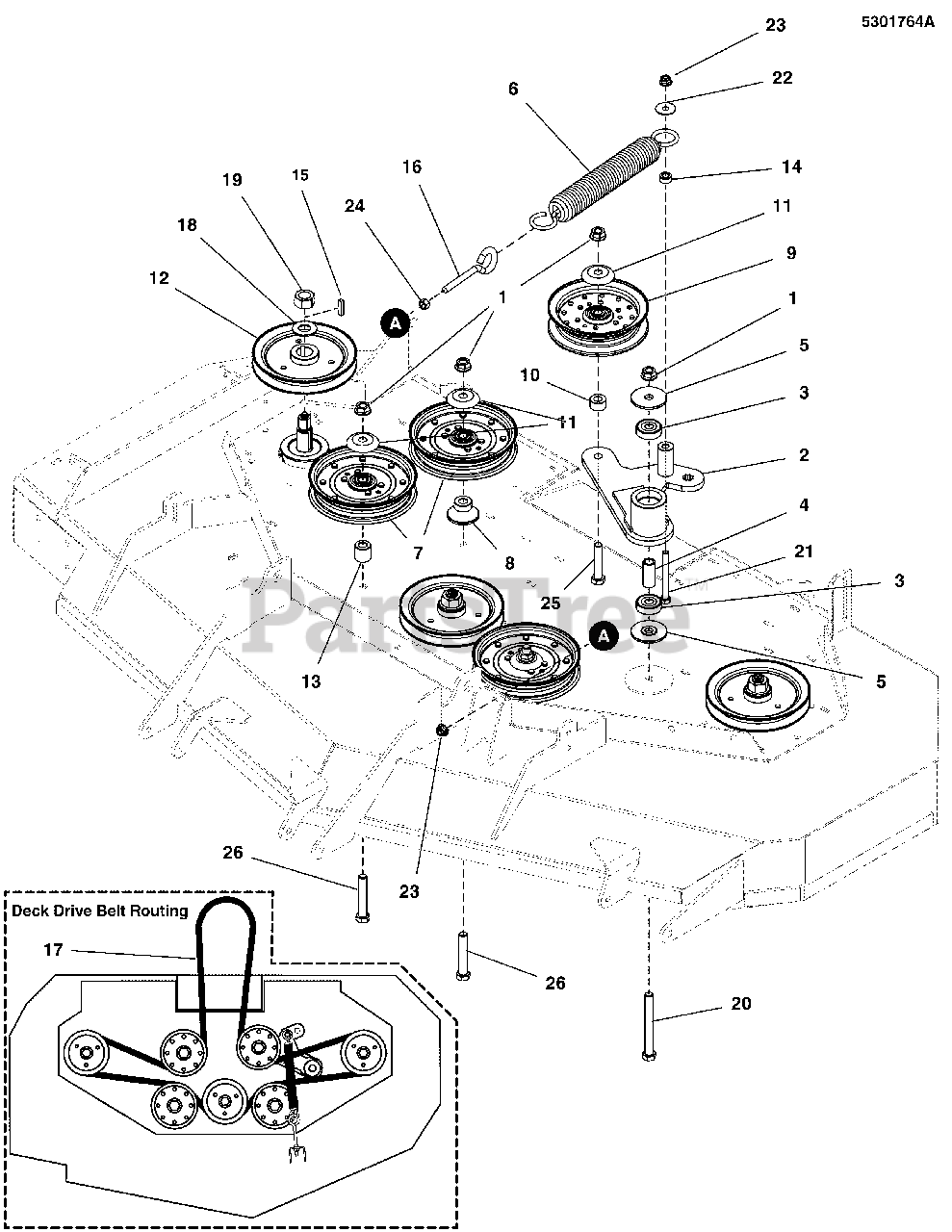

F 200XT (5900516) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Pulleys, Belt & Idler Arm - S/N: 2016953546 & Above Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

61" Mower Deck - Pulleys, Belt & Idler Arm - S/N: 2016953546 & Above Parts Diagram

  • Title

1

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

2

Ferris 5413363A

WELD, IDLER ARM, CUTTER DECKS - BLK
(Superseded to 5416067AAFS)

$121.99

$

Usually ships in 2-12 days

0

3

Ferris 5104383

BEARING, 6203-1/2", SEALED
(Superseded to 5104383YP)

$9.99

$

In Stock, only 3 left!

0

4

Ferris 5104381

SPACER, .510 X .750 X 1.749, CZ
(Superseded to 5104381YP)

$11.99

$

Usually ships in 2-12 days

0

5

Ferris 5104379

SPACER, IDLER ARM, 1/2 X 2.25
(Superseded to 5104379YP)

$8.99

$

Usually ships in 2-12 days

0

6

Ferris 5104166

SPRING, EXT, 1.5ODX12.25X.234WIRE BLK
(Superseded to 5104166YP)

$74.99

$

Usually ships in 2-12 days

0

7

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

8

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0

9

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

10

Ferris 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, only 1 left!

0

11

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, only 2 left!

0

12

Ferris 5100444

PULLEY, SPIN, 6.5 OD X 25MM,
(Superseded to 5100444FS)

$99.99

$

Usually ships in 2-12 days

0

13

Ferris 5049777

SPACER, .52 X 1.00 X 1.00
(Superseded to 5049777YP)

$11.99

$

Usually ships in 2-12 days

0

14

Ferris 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

Usually ships in 2-12 days

0

15

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5103870

BELT, 5V, 172.75"EL, LG ARAMID WRPD, RC
(Superseded to 5103670)

$148.99

$

In Stock, only 1 left!

0

18

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 CZ
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

21

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

22

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 3 left!

0

23

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 13

0

24

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

25

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

26

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0
