F 200XT (5900516) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Seat & Kick Plate Group (S/N: 2016518419 & Below) Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

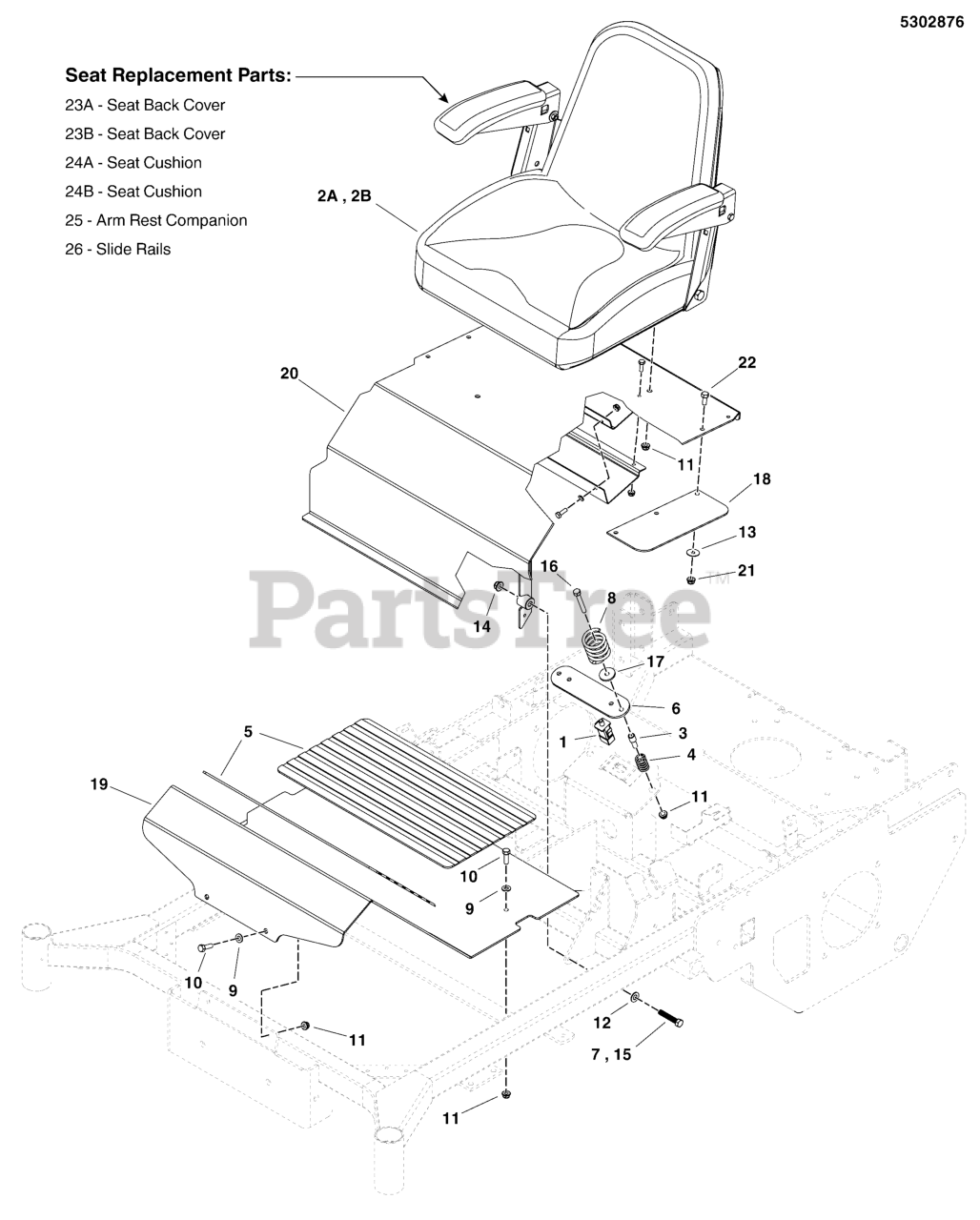

Seat & Kick Plate Group (S/N: 2016518419 & Below) Parts Diagram

  • Title

1

Ferris 5022198

SWITCH, PLUNGER, NO/NO SNAP-IN
(Superseded to 5022198SM)

$15.99

$

In Stock, only 1 left!

0

2A

Ferris 5103354

SEAT, 2012
(Superseded to 5104681YP)

Note: (S/N: 2015346051 & ABOVE)

$731.99

$

Usually ships in 2-12 days

0

2B

Ferris 5103004

SEAT, LOW COMPANION

Note: (S/N: 2015346050 & BELOW)

$

$

Currently unavailable

3

Ferris 5102228

SPACER, .328 ID X .66, YZ
(Superseded to 5102228YP)

$14.99

$

Usually ships in 2-12 days

0

4

Ferris 5102211

SPRING-COMP, .720ID X 1.310LG X .118 WIRE
(Superseded to 5102211YP)

$31.99

$

Usually ships in 2-12 days

0

5

Ferris 5101114

SAFETY WALK, 10.00 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

6

Ferris 5402732B

PLATE, SEAT SWITCH - RED

$13.99

$

Usually ships in 2-12 days

0

7

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

Note: (RH SIDE ONLY)

$4.99

$

In Stock, only 2 left!

0

8

Ferris 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

In Stock, only 2 left!

0

9

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

10

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 5

0

14

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 14

0

15

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

Note: (LH SIDE ONLY)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

18

Ferris 5100389

PLATE, SEAT, RUBBER FLAP
(Superseded to 5100389YP)

$4.99

$

Usually ships in 2-12 days

0

19

Ferris 5407074B

PLATE, FLOOR PAN, SNP 61 - RED

$

$

Currently unavailable

20

Ferris 5600677

ASSM, SEAT PLATE W/ DECAL, S200XT, FRS RED

$

$

Currently unavailable

21

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 3 left!

0

23A

Ferris 5103354X1

SEAT BACK COVER (2012)
(Superseded to 5103354X1YP)

Note: (S/N: 2015346051 & ABOVE)

$250.99

$

Usually ships in 2-12 days

0

23B

Ferris 5102760X1

SEAT BACK COVER
(Superseded to 5102760X1YP)

Note: (S/N: 2015346050 & BELOW)

$145.99

$

Usually ships in 2-12 days

0

24A

Ferris 5103354X2

SEAT COVER
(Superseded to 5103354X2YP)

Note: (S/N: 2015346051 & ABOVE)

$189.99

$

Usually ships in 2-12 days

0

24B

Ferris 5102760X2

SEAT CUSHION
(Superseded to 5102760X2YP)

Note: (S/N: 2015346050 & BELOW)

$281.99

$

Usually ships in 2-12 days

0

25

Ferris 5102760X3

ARM REST
(Superseded to 5102760X3YP)

$257.99

$

Usually ships in 2-12 days

0

26

Ferris 5102760X4

SLIDE RAILS
(Superseded to 5102760X4YP)

$183.99

$

Usually ships in 2-12 days

0
