F 200XT (5901241) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Decal Group - Safety & Operation Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

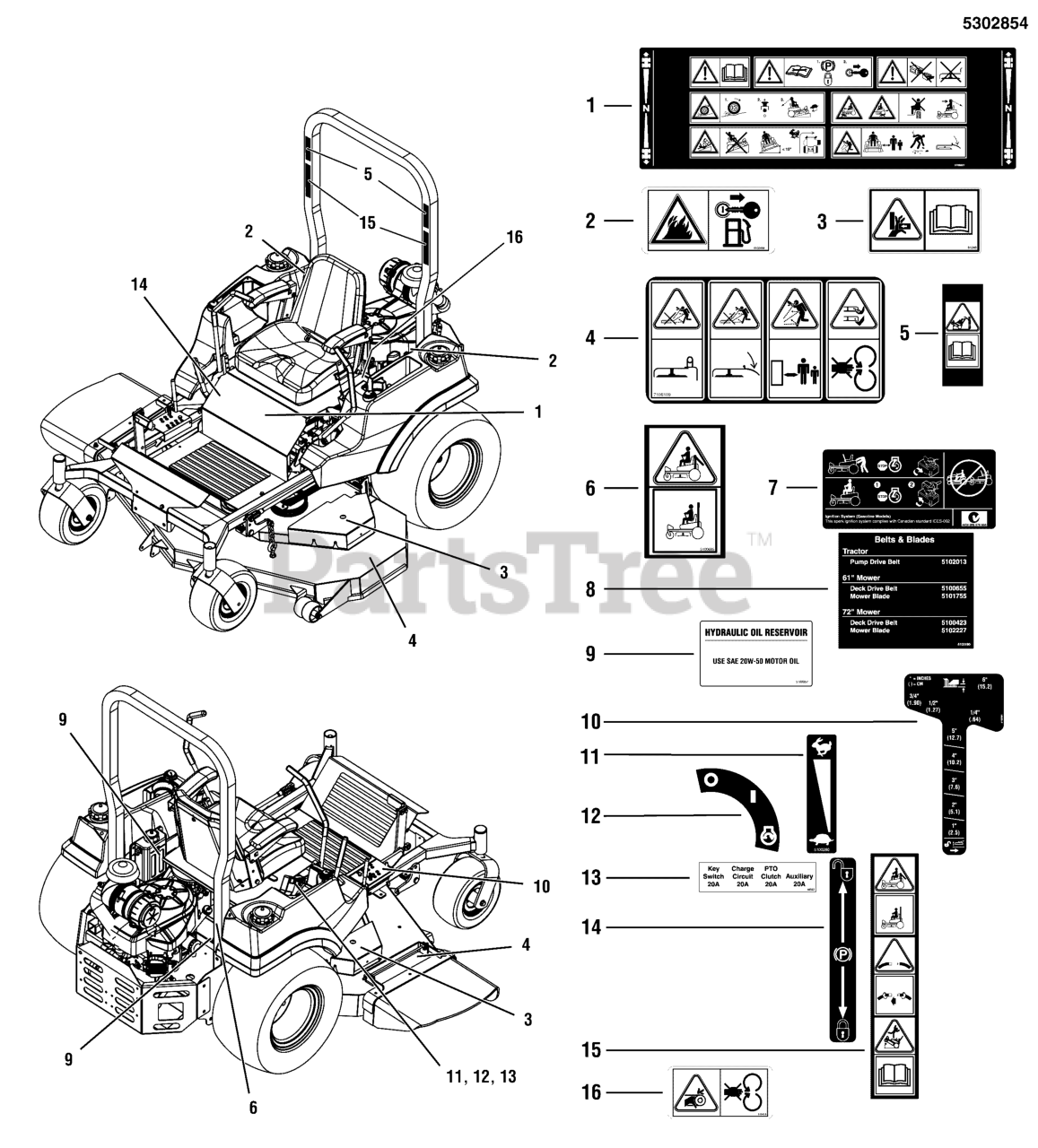

Decal Group - Safety & Operation Parts Diagram

  • Title

1

Ferris 5102627

DECAL, MAIN SAFETY, ANSI CE
(Superseded to 5102627YP)

$26.99

$

Usually ships in 2-12 days

0

2

Ferris 5102456

DECAL, FIRE ANSI EXPORT
(Superseded to 5102456YP)

$9.99

$

Usually ships in 2-12 days

0

3

Ferris 5061246

DECAL, PINCH POINT, CE
(Superseded to 5061246YP)

$10.99

$

Usually ships in 2-12 days

0

4

Ferris 7106109

DECAL, DISCHARGE SAFETY, EXPORT
(Superseded to 706111)

$12.99

$

Usually ships in 2-12 days

0

5

Ferris 5100537

DECAL, SAFETY, CE ROPS, OBS
(Superseded to 5100537YP)

$14.99

$

Usually ships in 2-12 days

0

6

Ferris 5100685

DECAL, WARNING, ROLL BAR, CE
(Superseded to 5100685YP)

$14.99

$

Usually ships in 2-12 days

0

7

Ferris 5102090

DECAL, TRANSAXLE RELEASE, S200XT
(Superseded to 5102090YP)

$11.99

$

Usually ships in 2-12 days

0

8

Ferris 5103190

DECAL, BELT & BLADE, S200XT-72
(Superseded to 5103400YP)

$11.99

$

Usually ships in 2-12 days

0

9

Ferris 5100957

DECAL, HYDRAULIC OIL, SAE 20W50
(Superseded to 84002270)

$6.49

$

Usually ships in 2-12 days

0

10

Ferris 5102091

DECAL, DECK HEIGHT, 1-1/2 TO 6, S200XT
(Superseded to 5102091YP)

$21.99

$

Usually ships in 2-12 days

0

11

Ferris 5100280

DECAL, THROTTLE CONTROL
(Superseded to 5100280SM)

$9.49

$

In Stock, only 1 left!

0

12

Ferris 5048970

DECAL, IGNITION SWITCH
(Superseded to 5048970SM)

$11.99

$

In Stock, only 1 left!

0

13

Ferris 5046503

DECAL, FUSE LOCATION, 20-20-20-20
(Superseded to 5046503SM)

Note: (S/N: 2016950122 & Below)

$6.49

$

Usually ships in 2-12 days

0

13

Ferris 5104043

DECAL, FUSE LOCATION, 20-15-15-20
(Superseded to 5104043YP)

Note: (S/N: 2016950123 & Above)

$6.49

$

Usually ships in 2-12 days

0

14

Ferris 5102628

DECAL, PARKING BRAKE SYMBOLS
(Superseded to 5102628YP)

$12.99

$

In Stock, only 1 left!

0

15

Ferris 5100536

DECAL, SAFETY, CE ROPS
(Superseded to 5100536YP)

$19.99

$

Usually ships in 2-12 days

0

16

Ferris 5061042

DECAL, CE DANGER
(Superseded to 5061042SM)

$13.99

$

Usually ships in 2-12 days

0
