F 200XT (5901241) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Deck Lift Group Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

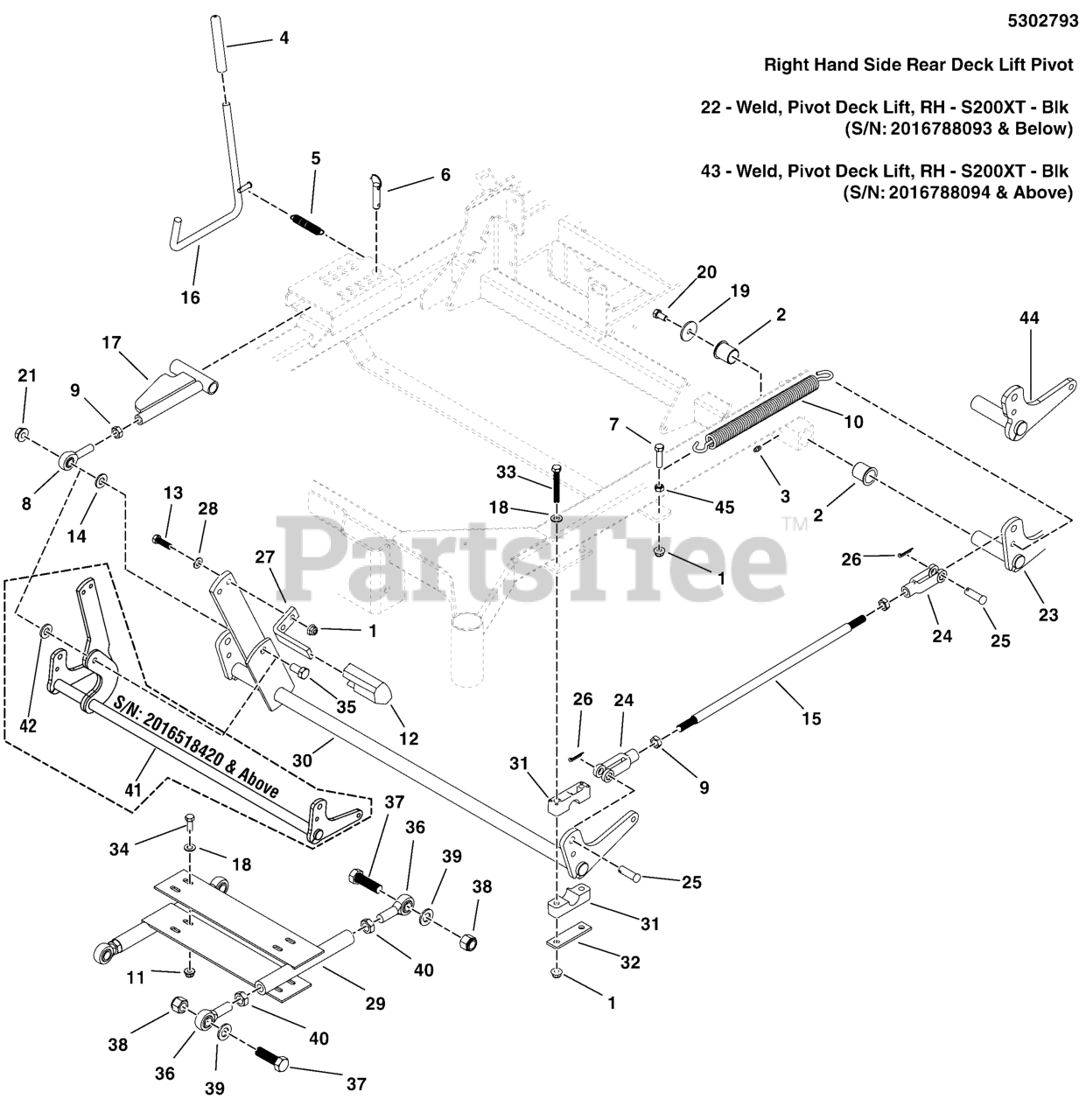

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

2

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

3

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

In Stock, only 1 left!

0

5

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

6

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

Usually ships in 2-12 days

0

7

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

Usually ships in 2-12 days

0

9

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

11

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 1 left!

0

12

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

13

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2016518419 & Below)

$3.99

$

In Stock, Qty 7

0

15

Ferris 5103758

ROD, DECK LIFT, TWR
(Superseded to 5103758YP)

$37.99

$

Usually ships in 2-12 days

0

16

Ferris 5402759B

WELD, ROD DECK LIFT - SNP RED

$

$

Currently unavailable

17

Ferris 5402757B

WELD, DECK ADJUST LINK - SNP RED

$46.99

$

Usually ships in 2-12 days

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

20

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

22

Ferris 5405359A

WELD, PIVOT DECK LIFT, RH - S200XT - BLK

Note: (S/N: 2016788093 & Below)

$60.99

$

Usually ships in 2-12 days

0

23

Ferris 5405360A

WELD, PIVOT DECK LIFT, LH - S200XT - BLK

Note: (S/N: 2016788093 & Below)

$40.99

$

Usually ships in 2-12 days

0

24

Ferris 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

25

Ferris 5025328X12

PIN, CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 1 left!

0

26

Ferris 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

27

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

28

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

29

Ferris 5406832A

WELD, DECK STABILIZER - BLK
(Superseded to 5406832AA)

$160.99

$

In Stock, only 1 left!

0

30

Ferris 5405280B

WELD, DECK LIFT SHAFT, S200XT - RED

Note: (S/N: 2016518419 & Below)

$

$

Currently unavailable

31

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

32

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

In Stock, only 1 left!

0

33

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

34

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

35

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, only 1 left!

0

37

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2 YZ GD5
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

38

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 1 left!

0

39

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

40

Ferris 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

Usually ships in 2-12 days

0

41

Ferris 5411187B

WELD, DECK LIFT SHAFT, 200XT-61 - RED

Note: (S/N: 2016518420 & Above)

$182.99

$

Usually ships in 2-12 days

0

42

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

Note: (S/N: 2016518420 & Above)

$6.49

$

In Stock, only 1 left!

0

43

Ferris 5412629A

WELD, PIVOT, DECK LIFT, RH, 200XT - BLK

Note: (S/N: 2016788094 & Above)

$

$

Not available

44

Ferris 5412630A

WELD, PIVOT, DECK LIFT, LH, 200XT - BLK

Note: (S/N: 2016788094 & Above)

$

$

Not available

45

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0
