F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

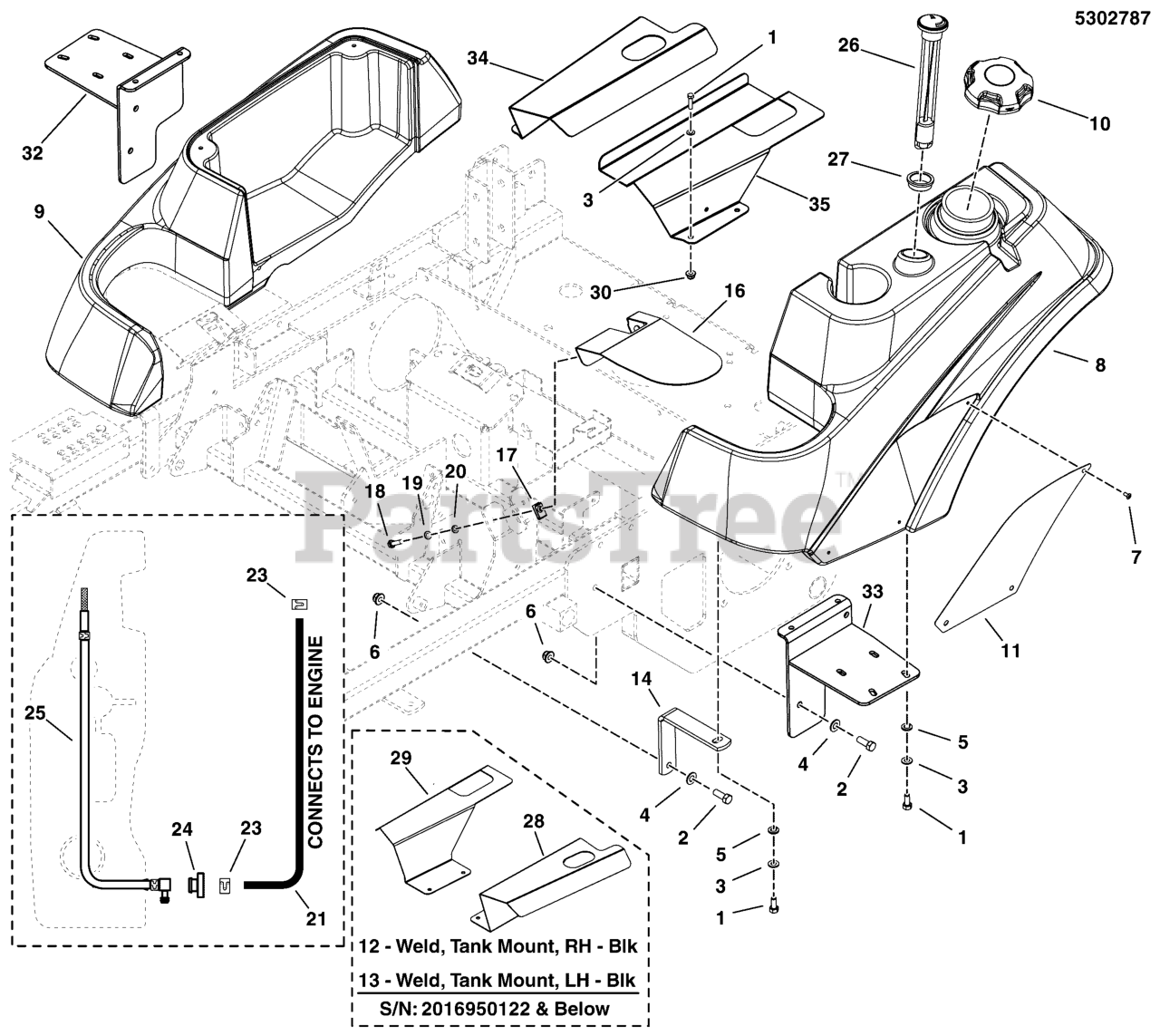

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

2

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

7

Ferris 5025386

SCREW, #10-24 X 3/8 ALLEN BHBZ
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5103176

TANK, FUEL - LH, IS500 & IS1500
(Superseded to 5103176YP)

$551.99

$

Usually ships in 2-12 days

0

9

Ferris 5049948

TANK, FENDER, CITATION/ZT4000 - RH
(Superseded to 5049948SM)

$308.99

$

In Stock, only 1 left!

0

10

Ferris 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

11

Ferris 5400250B

BADGE, IS1500Z, RED
(Superseded to 5400250BFS)

$7.49

$

In Stock, only 2 left!

0

12

Ferris 5407845A

WELD, TANK MOUNT, RH - BLK

Note: (S/N: 2016950122 & Below)

$

$

Currently unavailable

13

Ferris 5407847A

WELD, TANK MOUNT, LH - BLK

Note: (S/N: 2016950122 & Below)

$67.99

$

Usually ships in 2-12 days

0

14

Ferris 5407848A

BAR, TANK MOUNT, FRONT - BLK
(Superseded to 5407848AYP)

$29.99

$

Usually ships in 2-12 days

0

15

Ferris 5407849A

GUARD, MOTION CONTROLS, RH - BLK
(Superseded to 5407849AYP)

Note: (NOT SHOWN)

$20.99

$

Usually ships in 2-12 days

0

16

Ferris 5407850A

GUARD, MOTION CONTROLS, LH - BLK
(Superseded to 5407850AYP)

$15.99

$

Usually ships in 2-12 days

0

17

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5050831X14

HOSE, 1/4" FUEL, 14.00"

$

$

Currently unavailable

22

Ferris 5050833X10

WIRE LOOM, 1/2 ID X 10 IN
(Superseded to 5050833X10YP)

Note: (NOT SHOWN / COVERS FUEL HOSE)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, only 2 left!

0

24

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 5

0

25

Ferris 5101144

PICKUP TUBE ASM, FUEL TANK

$33.99

$

Usually ships in 2-12 days

0

26

Ferris 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

27

Ferris 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 2 left!

0

28

Ferris 5408362A

GUARD, FUEL MOUNT, LH - BLK

Note: (S/N: 2016950122 & Below)

$42.99

$

Usually ships in 2-12 days

0

29

Ferris 5408363A

GUARD, FUEL MOUNT, RH - BLK

Note: (S/N: 2016950122 & Below)

$42.99

$

Usually ships in 2-12 days

0

30

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

31

Ferris 5102753X8P5

FOAM, 1/2 X 1 X 8.50
(Superseded to 5102753X8P5YP)

Note: (NOT SHOWN / LOCATED ON #28)

$5.99

$

Usually ships in 2-12 days

0

32

Ferris 5413327A

WELD, TANK MOUNT, F200XT, RH - BLK

Note: (S/N: 2016950123 & Above)

$

$

Currently unavailable

33

Ferris 5413328A

WELD, TANK MOUNT, F200XT, LH - BLK

Note: (S/N: 2016950123 & Above)

$

$

Currently unavailable

34

Ferris 5413329A

GUARD, FUEL MOUNT, F200XT, RH - BLK

Note: (S/N: 2016950123 & Above)

$

$

Currently unavailable

35

Ferris 5413330A

GUARD, FUEL MOUNT, F200XT, LH - BLK

Note: (S/N: 2016950123 & Above)

$

$

Currently unavailable
