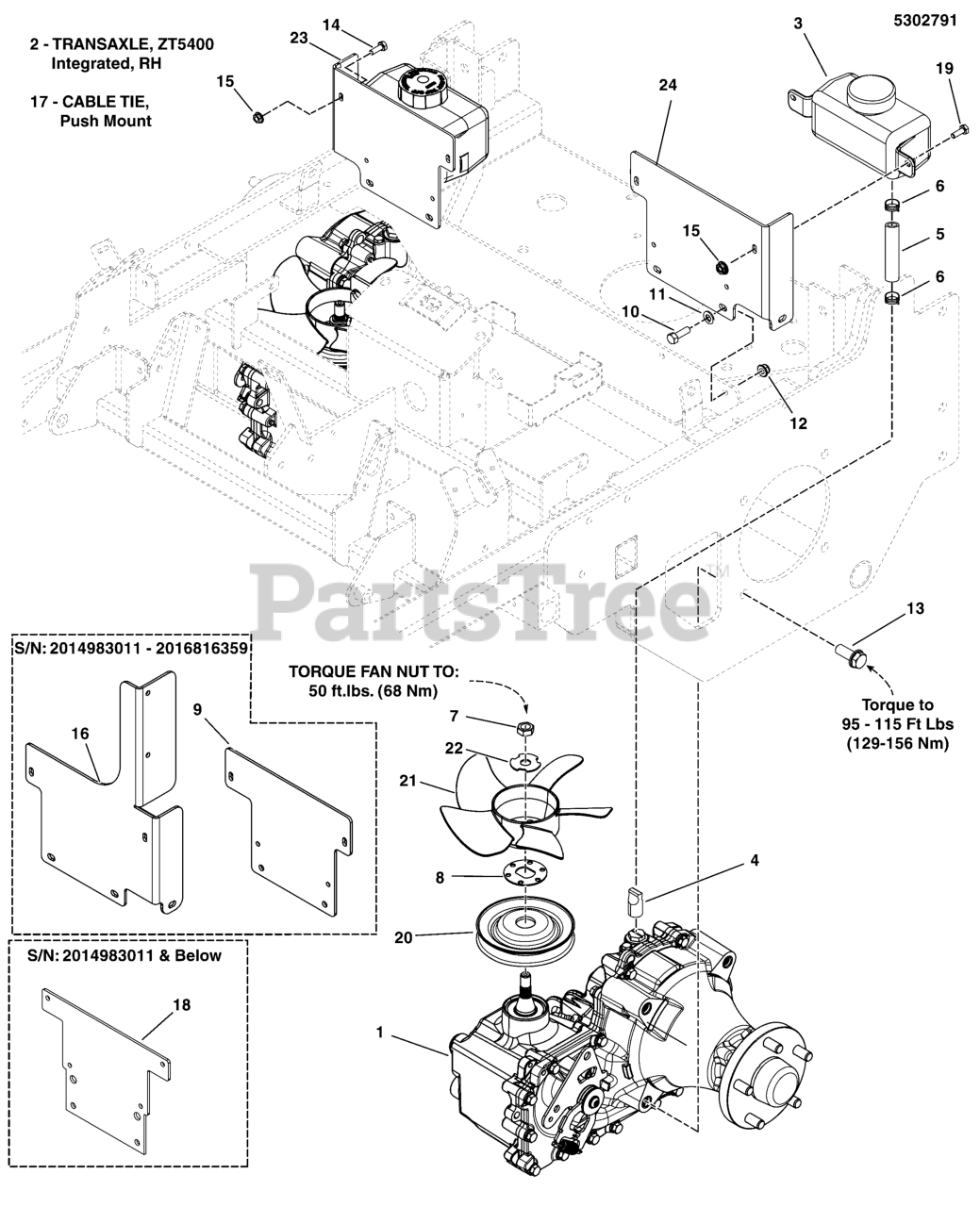

F 200XT (5901241) - Ferris F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Hydraulic Group - S/N: 2016950122 & Below Parts Diagram

F200XT Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

Hydraulic Group - S/N: 2016950122 & Below Parts Diagram

  • Title

1

Ferris 5102870

TRANSAXLE, ZT5400, LH, 1015-1024L
(Superseded to 5102870YP)

$1789.99

$

Usually ships in 2-12 days

0

2

Ferris 5102871

TRANSAXLE, ZT5400, RH, 1015-1024R
(Superseded to 5102871YP)

Note: (NOT ILLUSTRATED)

$1956.99

$

Usually ships in 2-12 days

0

3

Ferris 5101998

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER
(Superseded to 5101998YP)

$68.99

$

In Stock, only 2 left!

0

4

Ferris 5101987X1

FITTING, BREATHER, ZT5400
(Superseded to 5101987X1YP)

$26.99

$

Usually ships in 2-12 days

0

5

Ferris 5103038

HOSE, OFFSET FORMED

$

$

Currently unavailable

6

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 2 left!

0

7

Ferris 5102196

NUT, ZT5400

$

$

Not available

8

Ferris 5102917

SPACER, ANTI-ROTATE, ZT5400
(Superseded to 5102917YP)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5408359A

PLATE, HYDRO RES TANK - BLK

Note: (S/N: 2014983012 - 201681649)

$

$

Not available

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

11

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025535

BOLT,HEX FLG,SER,GD8 1/2-13X1-1/4W/PATCH
(Superseded to 5025535YP)

$7.99

$

Usually ships in 2-12 days

0

14

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5408329B

BRACKET, HYDRO TANK/CARBON CANISTER - RED

Note: (S/N: 2014983012 - 201681649)

$

$

Currently unavailable

17

Ferris 5021199

CABLE TIE-PUSH MOUNT
(Superseded to 5021199SM)

Note: (NOT ILLUSTRATED)

$5.99

$

In Stock, only 1 left!

0

18

Ferris 5405304B

PLATE, HYDRO TANK RES - RED

Note: (S/N: 2014983011 & BELOW)

$

$

Currently unavailable

19

Ferris 5025010X6

BOLT, 1/4-20 X 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

20

Ferris 5102872

PULLEY, ZT5400
(Superseded to 5102872YP)

$71.99

$

Usually ships in 2-12 days

0

21

Ferris 5102874

FAN, ZT5400
(Superseded to 5102874YP)

$27.99

$

Usually ships in 2-12 days

0

22

Ferris 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5409022A

BRKT, HYD TNK/CARB CAN, S200XT RH - BLK

Note: (S/N: 2016816350 & Above)

$

$

Currently unavailable

24

Ferris 5412965A

BRACKET, HYD TANK, S200XT, LH - BLK

Note: (S/N: 2016816350 & Above)

$27.99

$

Usually ships in 2-12 days

0
