F 210Z (5901555) - Ferris F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Seat & Kick Plate Group S/N: 2017405978 & Above Parts Diagram

F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

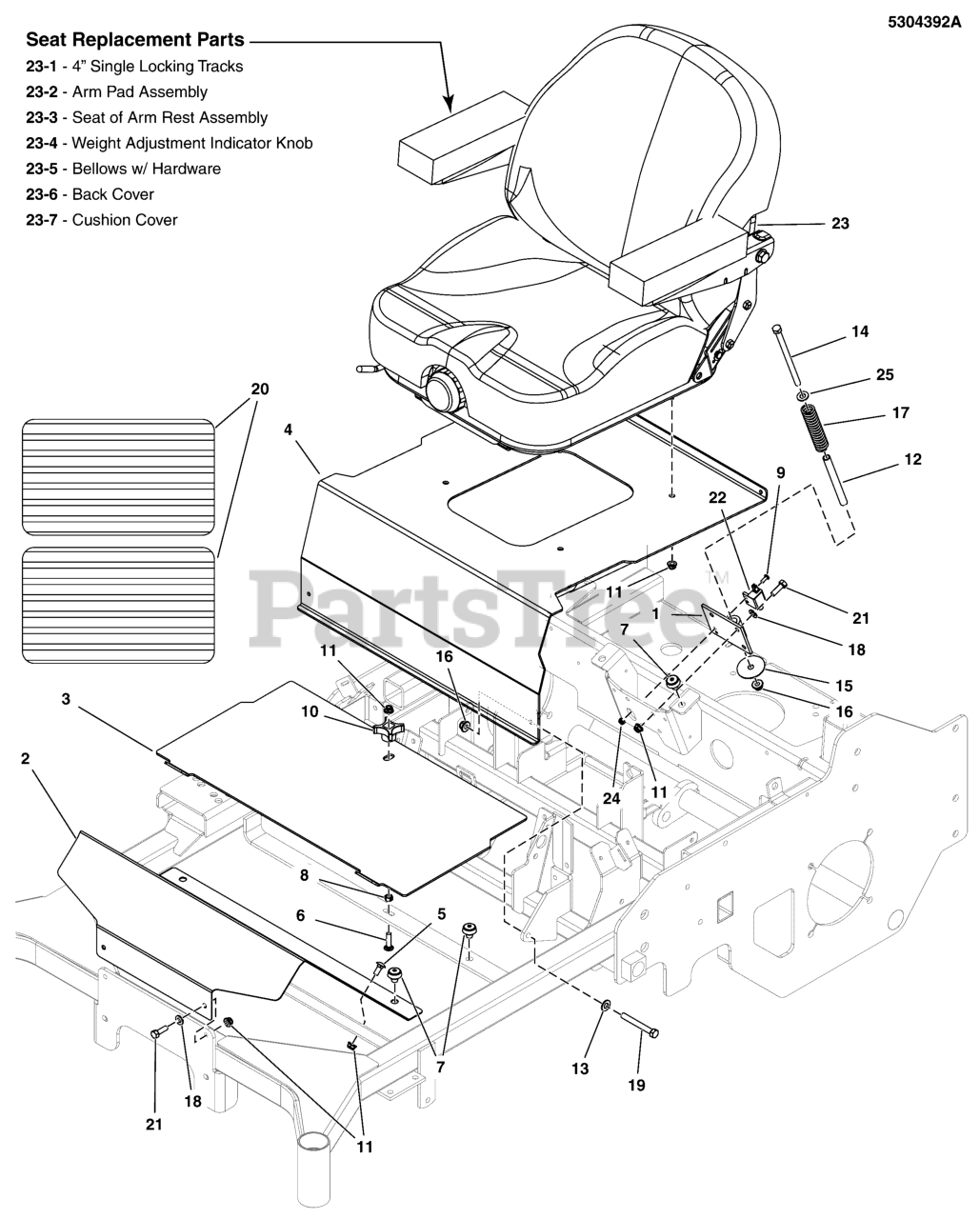

Seat & Kick Plate Group S/N: 2017405978 & Above Parts Diagram

  • Title

1

Ferris 5410583AYP

WELD, SEAT SWITCH

$21.99

$

Usually ships in 2-12 days

0

2

Ferris 5410363B

PLATE, RIGID FLOOR, 200XT - RED

$

$

Currently unavailable

3

Ferris 5410362B

PLATE, REMOVABLE FLOOR, 200XT - RED
(Superseded to 5410362BFS)

$109.99

$

Usually ships in 2-12 days

0

4

Ferris 5601014

ASSM, SEAT PLATE W/ DECAL, F320Z-DOM

Note: (5414866B)

$331.99

$

Usually ships in 2-12 days

0

5

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 80003669

BOLT,5/16-18X1.500,CARRIAGE,SQ,GR5,ZC/CL
(Superseded to 703296)

$4.49

$

In Stock, Qty 10

0

7

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

Usually ships in 2-12 days

0

8

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 6

0

9

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

10

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

In Stock, only 1 left!

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5046586

SPACER, .38 X .50 X 5.06, CZ
(Superseded to 5046586SM)

$12.99

$

In Stock, Qty 5

0

13

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, only 3 left!

0

15

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 7

0

17

Ferris 5100356

SPRING, .688 ID X .130 WIRE DIA 4.25
(Superseded to 5100356SM)

$16.99

$

Usually ships in 2-12 days

0

18

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

20

Ferris 5101114

SAFETY WALK, 10.00 X 19.00
(Superseded to 5101114YP)

$68.99

$

Usually ships in 2-12 days

0

21

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5021769

SWITCH, PLUNGER, N.C.
(Superseded to 5021769SM)

$14.99

$

In Stock, only 1 left!

0

23

Ferris 5104720

SEAT, MID BACK, W/SUSPENSION, SEATS INC
(Superseded to 5105096)

$

$

Not available

23-1

Ferris 5104720X1

4" SINGLE LOCKING TRACKS BASE

Note: (SV)

$148.99

$

Usually ships in 2-12 days

0

23-2

Ferris 5104719X1

ARM PAD ASSEMBLY BLK/CHAR CAR FIB/HARBR GRY RED WELT
(Superseded to 5104681X4)

Note: (SV)

$91.99

$

Usually ships in 2-12 days

0

23-3

Ferris 5104719X2

SET OF ARMREST ASSEMBLY BLK/CHAR CAR FIB/HARBR GRY RED WELT

Note: (SV)

$403.99

$

Usually ships in 2-12 days

0

23-4

Ferris 5104720X2

WEIGHT ADJUST INDICATOR KNOB ASSY BASE

Note: (SV)

$85.99

$

Usually ships in 2-12 days

0

23-5

Ferris 5104720X3

BELLOWS W/ HARDWARE BASE

Note: (SV)

$100.99

$

Usually ships in 2-12 days

0

23-6

Ferris 5104720X4

BACK COVER FOR FIXED BACK I3M BLK/CHAR CAR FIB/HARBR GRY RED WELT

Note: (SV)

$240.99

$

Usually ships in 2-12 days

0

23-7

Ferris 5104720X5

CUSHION COVER FOR I3M BLK/CHAR CAR FIB/HARBR GRY RED WELT

Note: (SV)

$210.99

$

Usually ships in 2-12 days

0

24

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

Note: (SV)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0
