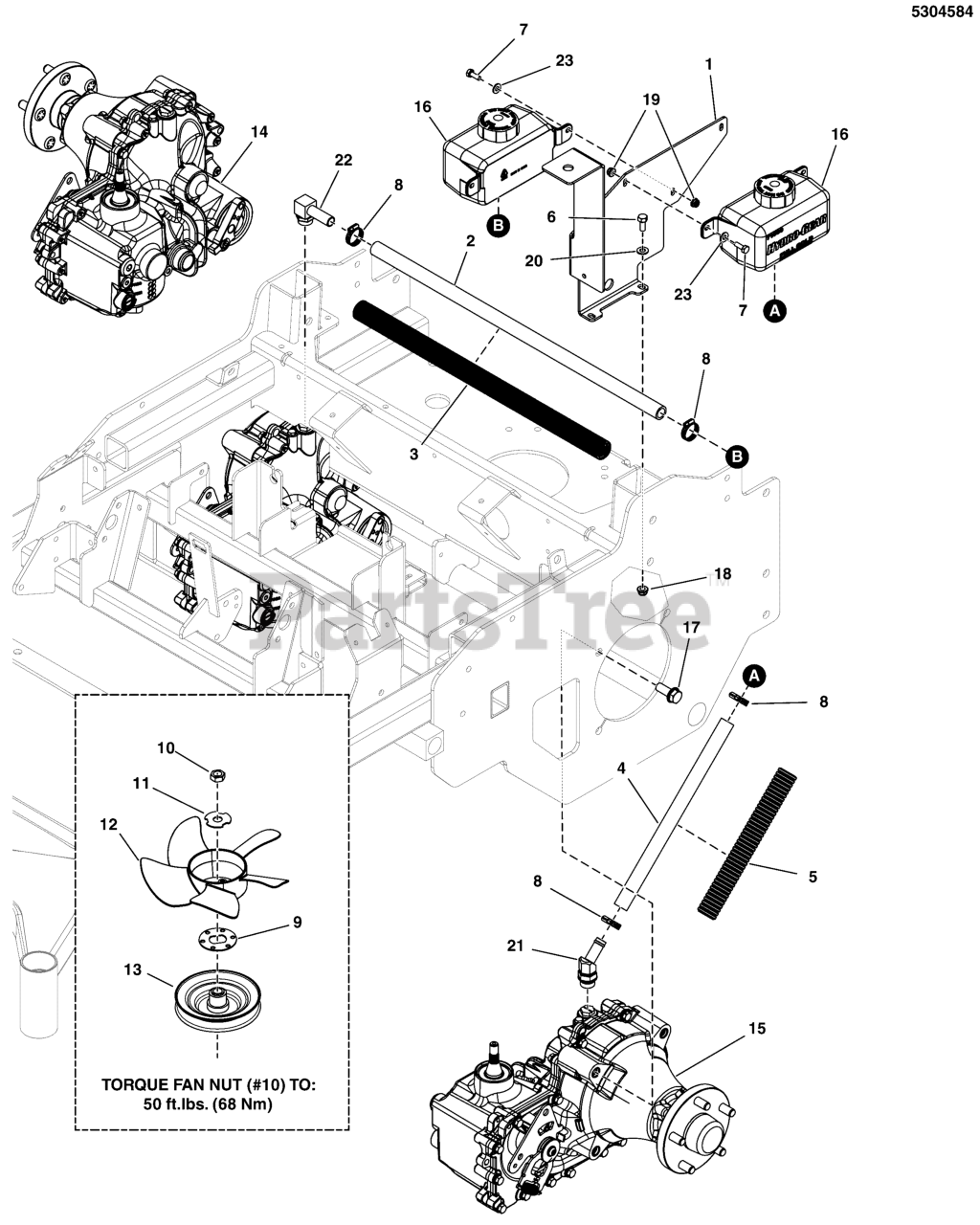

F 210Z (5901653) - Ferris F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Hydraulic Group - Single Tank Mount Parts Diagram

F210Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

Hydraulic Group - Single Tank Mount Parts Diagram

  • Title

1

Ferris 5416008A

PLATE, HYDRO MOUNT - OG, S200XT - BLK

$

$

Currently unavailable

2

Ferris 5050933X28

HOSE, 5/8, PUSH-LOCK, 28.00
(Superseded to 5050933X28FS)

$46.99

$

Usually ships in 2-12 days

0

3

Ferris 5100384X23

LOOM, CONVOLUTED SPLIT, 1 ID - 23 LONG

$

$

Currently unavailable

4

Ferris 5050933X13

HOSE, 5/8, PUSH-LOCK, 13.00

$

$

Not available

5

Ferris 5100384X10

LOOM, CONVOLUTED SPLIT, 1 ID - 10 LONG

$

$

Currently unavailable

6

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

7

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

8

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 2 left!

0

9

Ferris 5102917

SPACER, ANTI ROTATE, ZT5400
(Superseded to 5102917YP)

$5.99

$

Usually ships in 2-12 days

0

10

Ferris 5102916

NUT, ZT5400
(Superseded to 5102916YP)

$3.49

$

In Stock, only 2 left!

0

11

Ferris 5102914

WASHER, ZT5400, SLOTTED
(Superseded to 5102914YP)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5102874

FAN, ZT5400
(Superseded to 5102874YP)

$27.99

$

In Stock, only 1 left!

0

13

Ferris 5102872

PULLEY, ZT5400 (53177)
(Superseded to 5102872YP)

$71.99

$

Usually ships in 2-12 days

0

14

Ferris 5102871

TRANSAXLE, ZT5400, RH, 1015-1024R
(Superseded to 5102871YP)

$1956.99

$

Usually ships in 2-12 days

0

15

Ferris 5102870

TRANSAXLE, ZT5400, LH, 1015-1024L
(Superseded to 5102870YP)

$1789.99

$

Usually ships in 2-12 days

0

16

Ferris 5101998

HYDRO TANK, HYDRO-GEAR 71938, 1 LITER
(Superseded to 5101998YP)

$68.99

$

In Stock, only 2 left!

0

17

Ferris 5025535

BOLT, 1/2-13 X 1-1/4, SF, PLT W/PATCH
(Superseded to 5025535YP)

$7.99

$

Usually ships in 2-12 days

0

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5103923

FITTING, 45, 5/8 TUBE TO 7/8-14 O-RING
(Superseded to 5103923YP)

$22.99

$

Usually ships in 2-12 days

0

22

Ferris 5105038

FITTING, EBLOW, 7/8-14 O-RING-5/8" TUBE
(Superseded to 5105038FS)

$18.99

$

Usually ships in 2-12 days

0

23

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0
