F 230 - Shindaiwa String Trimmer Fuel Tank Parts Diagram

String Trimmer

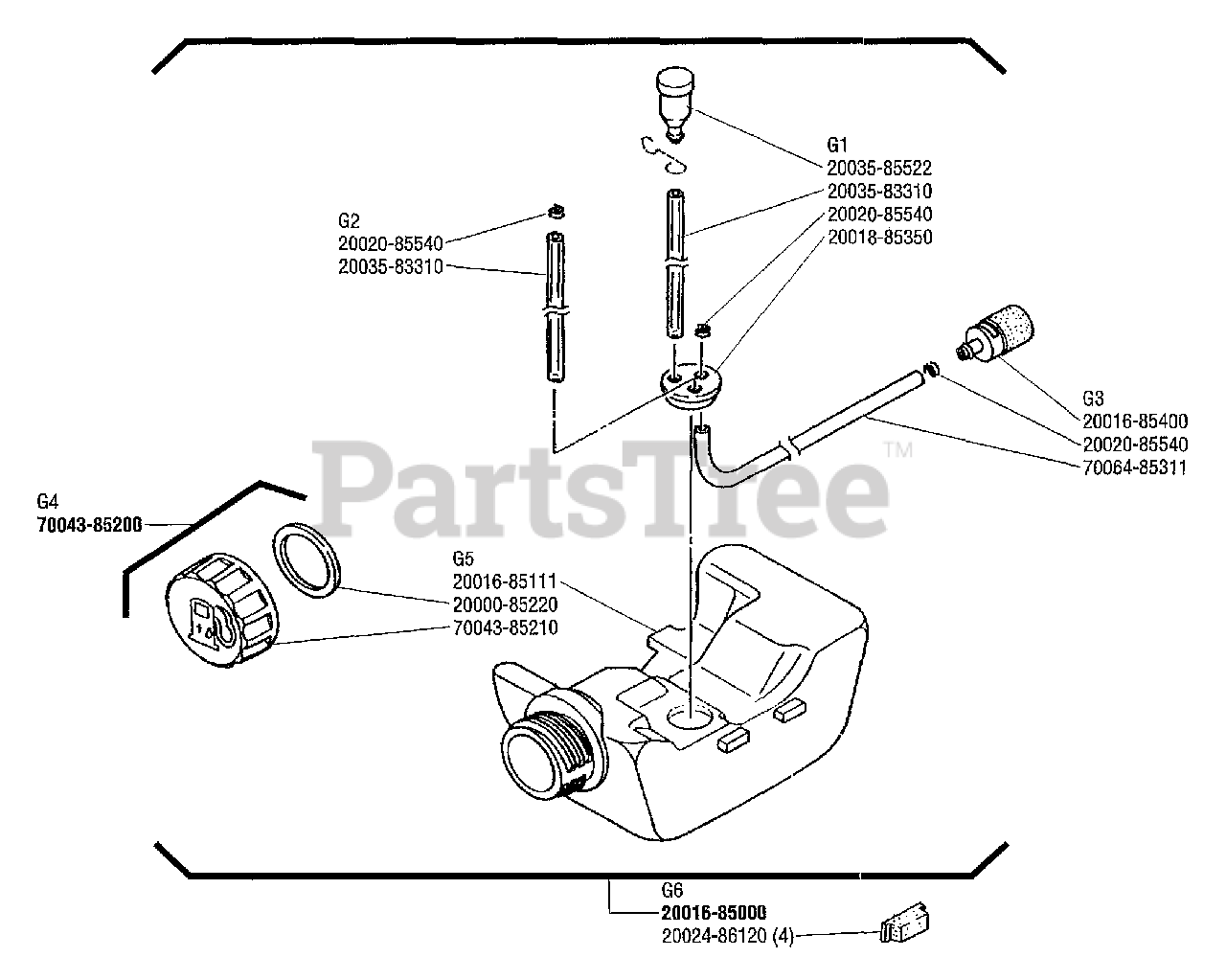

Fuel Tank Parts Diagram

  • Title

G5-20016-85111

Echo 20016-85111

FUEL TANK
(Superseded to 20016-85112)

$15.99

$

Usually ships in 2-4 days

0

G5-20000-85220

Echo 20000-85220

GASKET, FUEL
(Superseded to 20000-85221)

$1.99

$

In Stock, Qty 20+

0

G5-70043-85210

Echo 70043-85210

FUEL CAP, USE 70168-85210
(Superseded to 70168-85210)

$7.49

$

In Stock, Qty 14

0

G2-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

G2-20035-83310

Echo 20035-83310

TUBE, USE 20089-83310
(Superseded to 20089-83310)

$1.99

$

In Stock, Qty 9

0

G1-20035-85522

Echo 20035-85522

BREATHER
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

G1-20035-83310

Echo 20035-83310

TUBE, USE 20089-83310
(Superseded to 20089-83310)

$1.99

$

In Stock, Qty 9

0

G1-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

G1-20018-85350

Echo 20018-85350

GROMMET
(Superseded to Discontinued)

$

$

Not available

G3-20016-85400

Echo 20016-85400

FUEL FILTER
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

G3-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 20+

0

G3-70064-85311

Echo 70064-85311

FUEL PIPE
(Superseded to 20016-85310)

$4.99

$

In Stock, Qty 20+

0

G6-20016-85000

Echo 20016-85000

FUEL TANK ASSY
(Superseded to 20016-85001)

$46.99

$

In Stock, Qty 13

0

G6-20024-86120

Echo 20024-86120

CUSHION, FRONT TANK
(Superseded to V420002630)

$1.49

$

In Stock, Qty 20+

0

G4-70043-85200

Echo 70043-85200

FUEL CAP ASSY, USE 70043-85201
(Superseded to 70043-85201)

$3.99

$

In Stock, Qty 8

0
