F 259 - Shindaiwa String Trimmer (SN: 25900001 - 25999999) FIGURE B Parts Diagram

String Trimmer

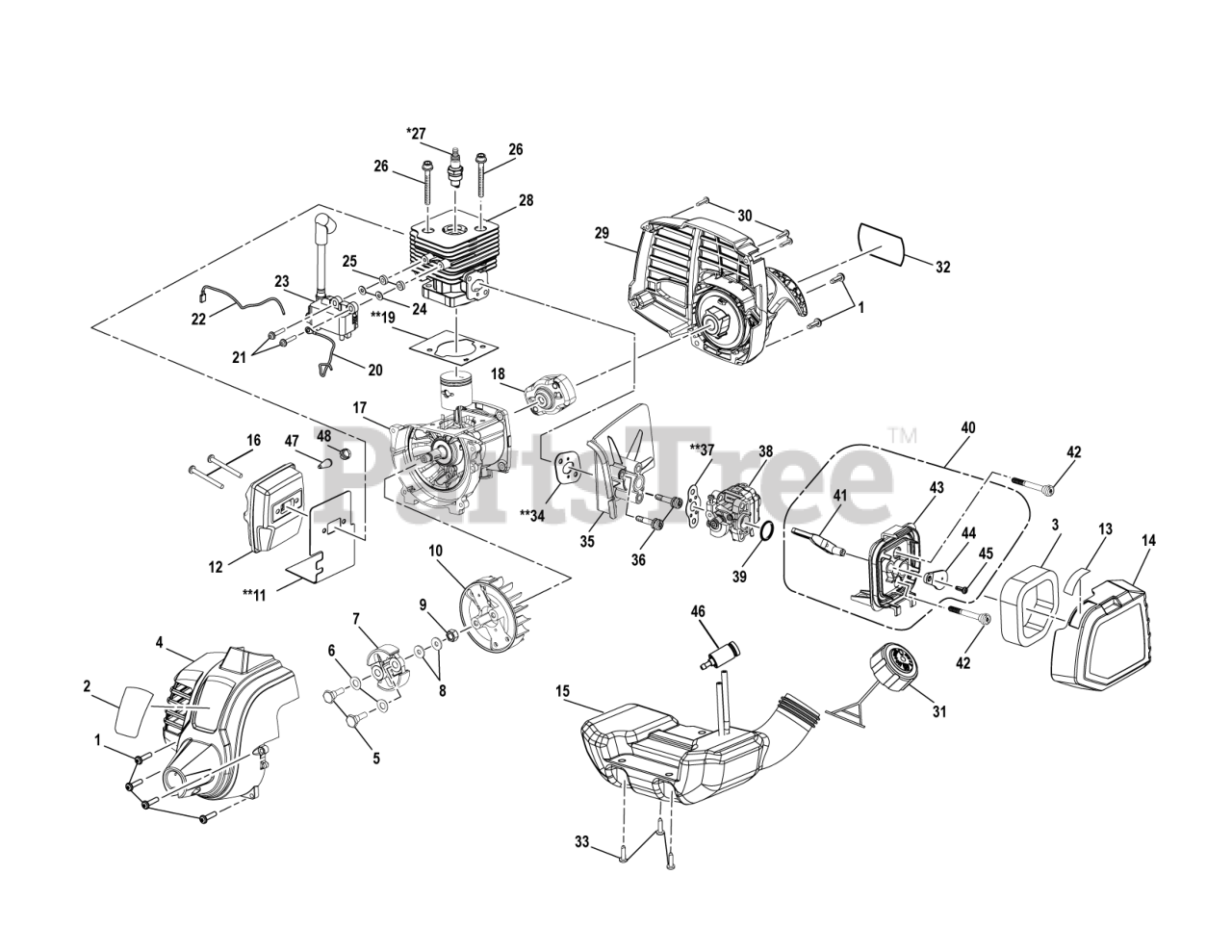

FIGURE B Parts Diagram

  • Title

1

Echo YH411000010

SCREW W/WASHER

$0.99

$

Usually ships in 2-4 days

0

2

Echo YH653000630

LABEL, LOGO

$0.99

$

Usually ships in 2-4 days

0

3

Echo YH465000160

FILTER, AIR

$4.99

$

Usually ships in 2-4 days

0

4

Echo YH479001040

ASSY., FRONT HOUSING

$24.99

$

Usually ships in 2-4 days

0

5

Echo YH480000060

BOLT, CLUTCH SHOULDER

$0.99

$

Usually ships in 2-4 days

0

6

Echo YH451000260

WASHER, CURVED

$0.99

$

Usually ships in 2-4 days

0

7

Echo YH480000040

ASSY., CLUTCH

$11.99

$

Usually ships in 2-4 days

0

8

Echo YH451000240

WASHER

$0.99

$

Usually ships in 2-4 days

0

9

Echo YH450000010

NUT, HEX FLANGE

$0.99

$

Usually ships in 2-4 days

0

10

Echo YH461000180

FLYWHEEL

$12.99

$

Usually ships in 2-4 days

0

11

Echo YH468000980

GASKET, MUFFLER

$2.99

$

Usually ships in 2-4 days

0

12

Echo YH460000130

ASSY., MUFFLER

$11.99

$

Usually ships in 2-4 days

0

13

Echo YH653000550

LABEL, CHOKE POSITION

$0.99

$

Usually ships in 2-4 days

0

14

Echo YH479001050

COVER, AIRBOX

$1.99

$

Usually ships in 2-4 days

0

15

Echo YH455000110

ASSY., FUEL TANK W/CAP

$17.99

$

Usually ships in 2-4 days

0

16

Echo YH415000310

SCREW

$0.99

$

Usually ships in 2-4 days

0

17

Echo YH458000490

ASSY., CRANKCASE

$85.99

$

Usually ships in 2-4 days

0

18

Echo YH463000130

CUP, STARTER

$7.49

$

Usually ships in 2-4 days

0

19

Echo YH468001040

GASKET

$1.49

$

Usually ships in 2-4 days

0

20

Echo YH301000070

WIRE, LEAD (RED)

$0.99

$

Usually ships in 2-4 days

0

21

Echo YH411000030

SCREW W/WASHER

$0.99

$

Usually ships in 2-4 days

0

22

Echo YH301000080

WIRE, LEAD (BLACK)

$0.99

$

Usually ships in 2-4 days

0

23

Echo YH461000170

MODULE, IGNITION

$26.99

$

Usually ships in 2-4 days

0

24

Echo YH451000280

WASHER

$0.99

$

Usually ships in 2-4 days

0

25

Echo YH475000030

SPACER

$0.99

$

Usually ships in 2-4 days

0

26

Echo YH415000250

SCREW

$0.99

$

Usually ships in 2-4 days

0

27

Echo YH461000000

PLUG, SPARK (LTRTC)

$4.49

$

Usually ships in 2-4 days

0

28

Echo YH458000740

CYLINDER

$37.99

$

Usually ships in 2-4 days

0

29

Echo YH463000120

ASSY., STARTER

$15.99

$

Usually ships in 2-4 days

0

30

Echo YH415000350

SCREW

$0.99

$

Usually ships in 2-4 days

0

31

Echo YH468000840

ASSY., FUEL CAP

$4.99

$

Usually ships in 2-4 days

0

32

Echo YH653000640

LABEL, LOGO (REAR)

$0.99

$

Usually ships in 2-4 days

0

33

Echo YH415000650

SCREW, SHOULDER

$0.99

$

Usually ships in 2-4 days

0

34

Echo YH468001120

GASKET, INSULATOR

$0.99

$

Usually ships in 2-4 days

0

35

Echo YH468000870

INSULATOR, HEAT DAM

$5.99

$

Usually ships in 2-4 days

0

36

Echo YH415000670

SCREW

$0.99

$

Usually ships in 2-4 days

0

37

Echo YH468001100

GASKET

$0.99

$

Usually ships in 2-4 days

0

38

Echo YH459000150

ASSY., CARBURETOR

$45.99

$

Usually ships in 2-4 days

0

39

Echo YH468000910

O-RING, CARBURETOR

$0.99

$

Usually ships in 2-4 days

0

40

Echo YH479001100

ASSY., AIRBOX BASE

$2.49

$

Usually ships in 2-4 days

0

41

Echo YH470000670

LEVER, CHOKE

$0.99

$

Usually ships in 2-4 days

0

42

Echo YH415000340

SCREW

$0.99

$

Usually ships in 2-4 days

0

43

Echo YH479001310

BASE, AIRBOX

$1.99

$

Usually ships in 2-4 days

0

44

Echo YH479001300

PLATE, CHOKE

$0.99

$

Usually ships in 2-4 days

0

45

Echo YH415000290

SCREW

$0.99

$

Usually ships in 2-4 days

0

46

Echo YH465000140

FILTER FUEL

$2.49

$

Usually ships in 2-4 days

0

47

Echo YH460000160

KIT, HONDA WT SPARK ARRESTOR

$50.99

$

Usually ships in 2-4 days

0

48

Echo YH460000170

KIT, BRIGGS 208CC SPRK ARRESTR

$41.99

$

Usually ships in 2-4 days

0

Echo YH459000250

KIT, GASKET & DIAPHRAGM

$6.99

$

Usually ships in 2-4 days

0

Echo YH459000270

KIT, MIXTURE SCREW

$4.49

$

Usually ships in 2-4 days

0

Echo YH459000290

KIT, IDLE ADJUSTMENT SCREW

$28.99

$

Usually ships in 2-4 days

0

Echo YH458000610

KIT, PISTON

$15.99

$

Usually ships in 2-4 days

0

Echo YH458000630

KIT, CYLINDER W/GASKET

$21.99

$

Usually ships in 2-4 days

0

Echo YH458000650

KIT, CRANKSHAFT SEALS

$1.99

$

Usually ships in 2-4 days

0
