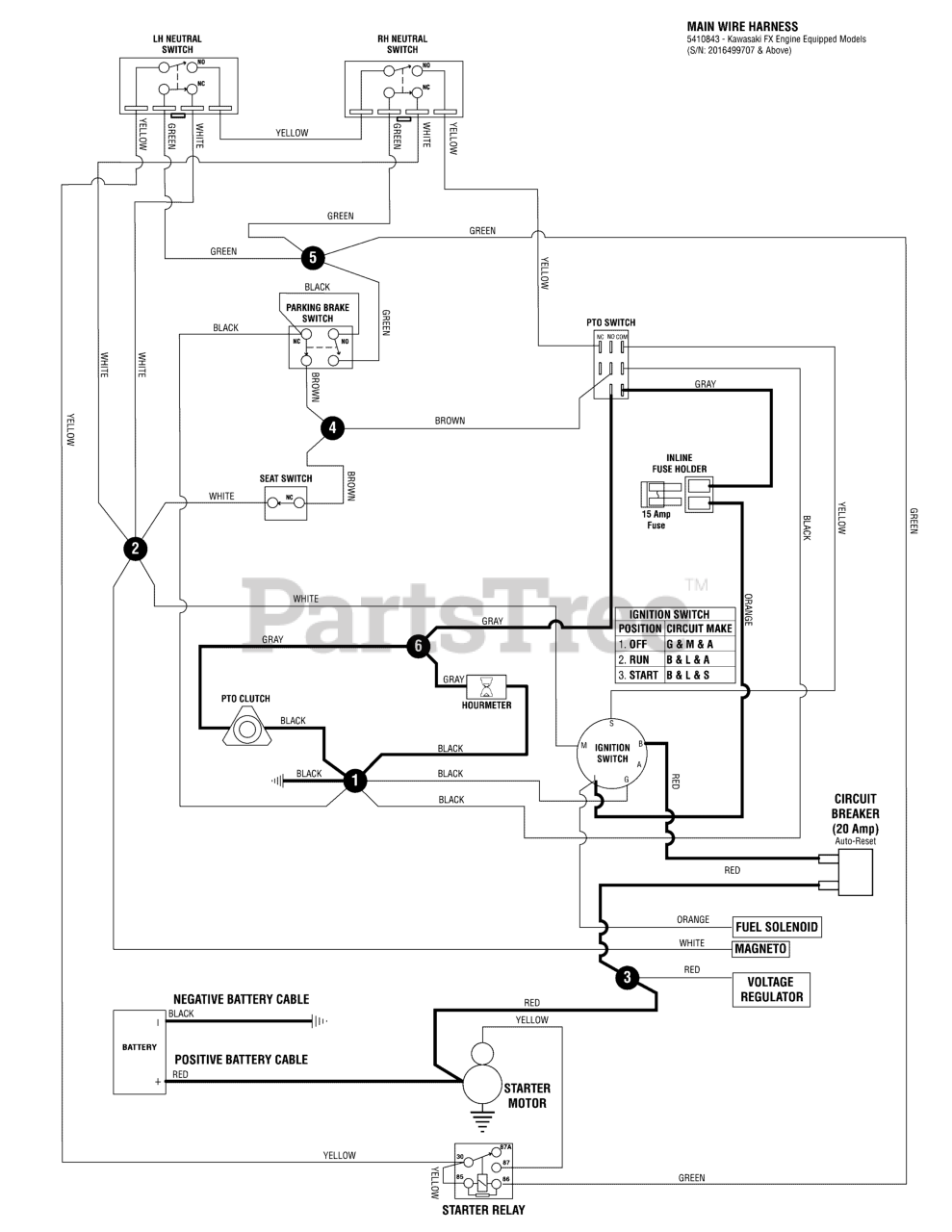

F 50XT (5900518) - Ferris F50XT Series 36" Zero-Turn Mower, 20hp Kawasaki Electrical Schematic - PTO Clutch Circuit - Kawasaki S/N: 2016499707 & Above Parts Diagram

F50XT Series 36" Zero-Turn Mower, 20hp Kawasaki
