F 800X (5901235) - Ferris F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Motion Control Group Parts Diagram

F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

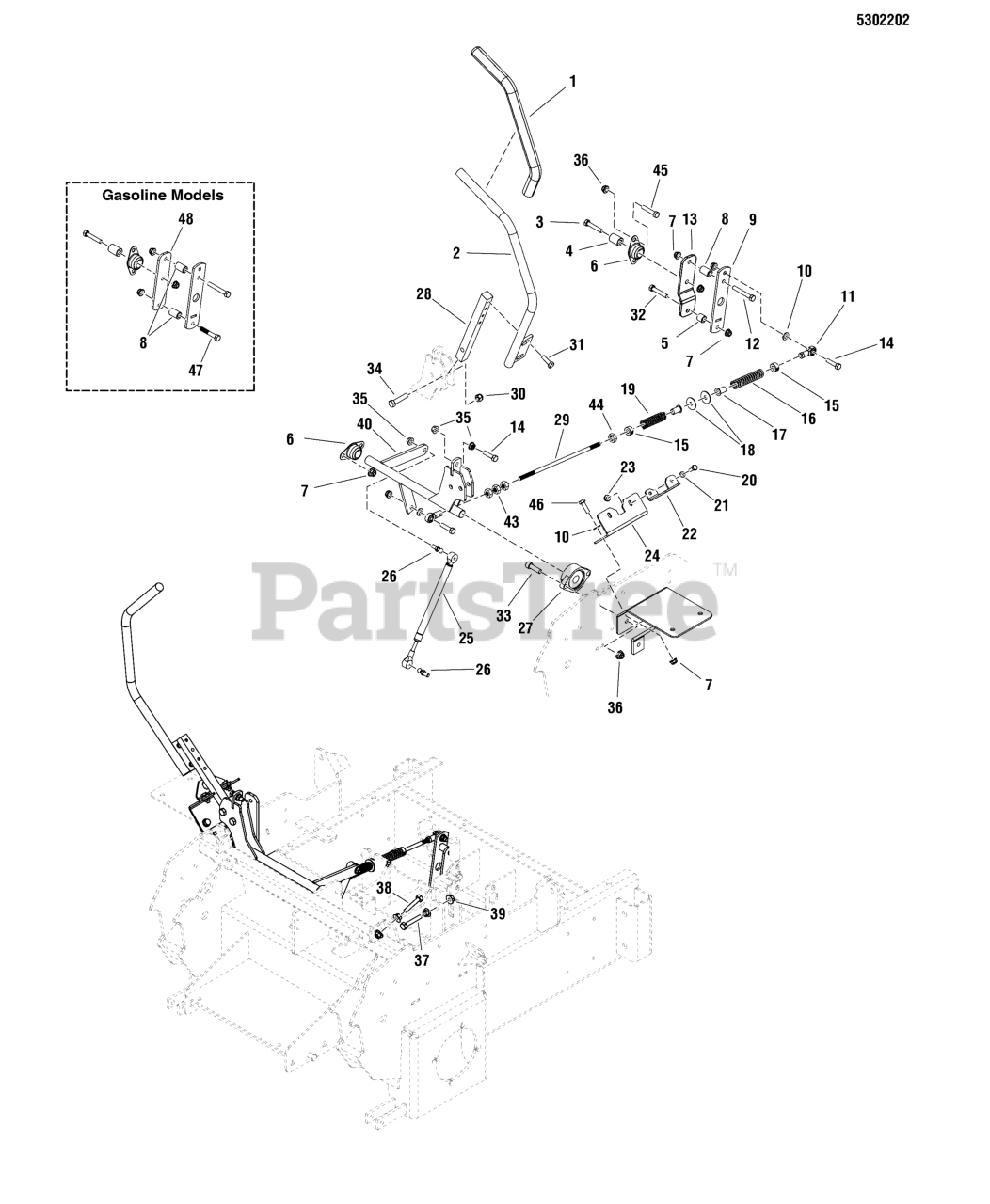

Motion Control Group Parts Diagram

  • Title

1

Ferris 5022068

GRIP, FOAM, 3/4" ID, 16"" LONG
(Superseded to 5022068SM)

Note: (S/N: 2017499983 & Below)

$11.99

$

Usually ships in 2-12 days

0

1

Ferris 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017499984 & Above)

$10.99

$

Usually ships in 2-12 days

0

2

Ferris 5404077B

WELD, HANDLEBAR - LH - RED

Note: (S/N: 2017499983 & Below)

$39.99

$

Usually ships in 2-12 days

0

2

Ferris 5415053A

WELD HANDLE MOTION CNTRL 13.8 1.0 LH BLK

Note: (S/N: 2017499984 & Above)

$49.99

$

Usually ships in 2-12 days

0

3

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5042134

SPACER, .32 X .75 X 1.06, PM
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

5

Ferris 5102581

SPACER, .33 X .63 X .50, CZ
(Superseded to 5102581YP)

Note: (Diesel Models)

$11.99

$

Usually ships in 2-12 days

0

6

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5101260

SPACER, .33 X .63 X 1.00, YZ
(Superseded to 5101260YP)

Note: (Qty: 4 on Gas Models)

$9.99

$

Usually ships in 2-12 days

0

9

Ferris 5403188B

BAR, PUMP LINK - OUTER - RED
(Superseded to 5403188BFS)

$12.99

$

Usually ships in 2-12 days

0

10

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

11

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5405853B

BAR, PUMP LINK, OFFSET - RED
(Superseded to 5405853BFS)

Note: (Diesel Models)

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

15

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

16

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

17

Ferris 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

18

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5021102

SPRING-COMP, .594ID X 2.68LG X .080WR
(Superseded to 5021102SM)

$7.49

$

Usually ships in 2-12 days

0

20

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

21

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

22

Ferris 5403486B

BRACKET, SWITCH MOUNT - RED
(Superseded to 5403486BFS)

$12.99

$

Usually ships in 2-12 days

0

23

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5403180B

PLATE, NEUTRAL LOCK - RED
(Superseded to 5403180BFS)

$22.99

$

Usually ships in 2-12 days

0

25

Ferris 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

Usually ships in 2-12 days

0

26

Ferris 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

28

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

29

Ferris 5101381

ROD, HYDRO CONTROL, OUTFRONT
(Superseded to 5101381YP)

$14.99

$

Usually ships in 2-12 days

0

30

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, only 1 left!

0

31

Ferris 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 8

0

32

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

Note: (Diesel Models)

$3.99

$

Usually ships in 2-12 days

0

33

Ferris 5025327

BOLT, Allen Head, 3/8-16 x 1-1/4
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

34

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 1 left!

0

35

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

36

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 7

0

37

Ferris 5025055X12

BOLT- 5/16-18 X 1-1/2 GD5 TFL
(Superseded to 5025055X12SM)

$3.99

$

Usually ships in 2-12 days

0

38

Ferris 5025055X14

BOLT, 5/16-18 X 1-3/4 TFL, GD5 YZ
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5403214B

WELD, MOTION CONTROL SHAFT - LH - RED

$

$

Currently unavailable

41

Ferris 5404076B

WELD, HANDLEBAR - RH - RED

Note: (S/N: 2017499983 & Below) (Not shown)

$41.99

$

Usually ships in 2-12 days

0

41

Ferris 5415054A

WELD HANDLE MOTION CNTRL 13.8 1.0 RH BLK

Note: (S/N: 2017499984 & Above) (Not shown)

$50.99

$

Usually ships in 2-12 days

0

42

Ferris 5403251B

WELD, MOTION CONTROL SHAFT - RH - RED

Note: (NOT SHOWN)

$

$

Currently unavailable

43

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

44

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

45

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

46

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

47

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

Note: (Gas Models)

$3.99

$

Usually ships in 2-12 days

0

48

Ferris 5403189B

BAR, PUMP LINK - INNER - RED

Note: (Gas Models)

$

$

Currently unavailable
