F 800X (5901235) - Ferris F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Operator Compartment Group Parts Diagram

F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

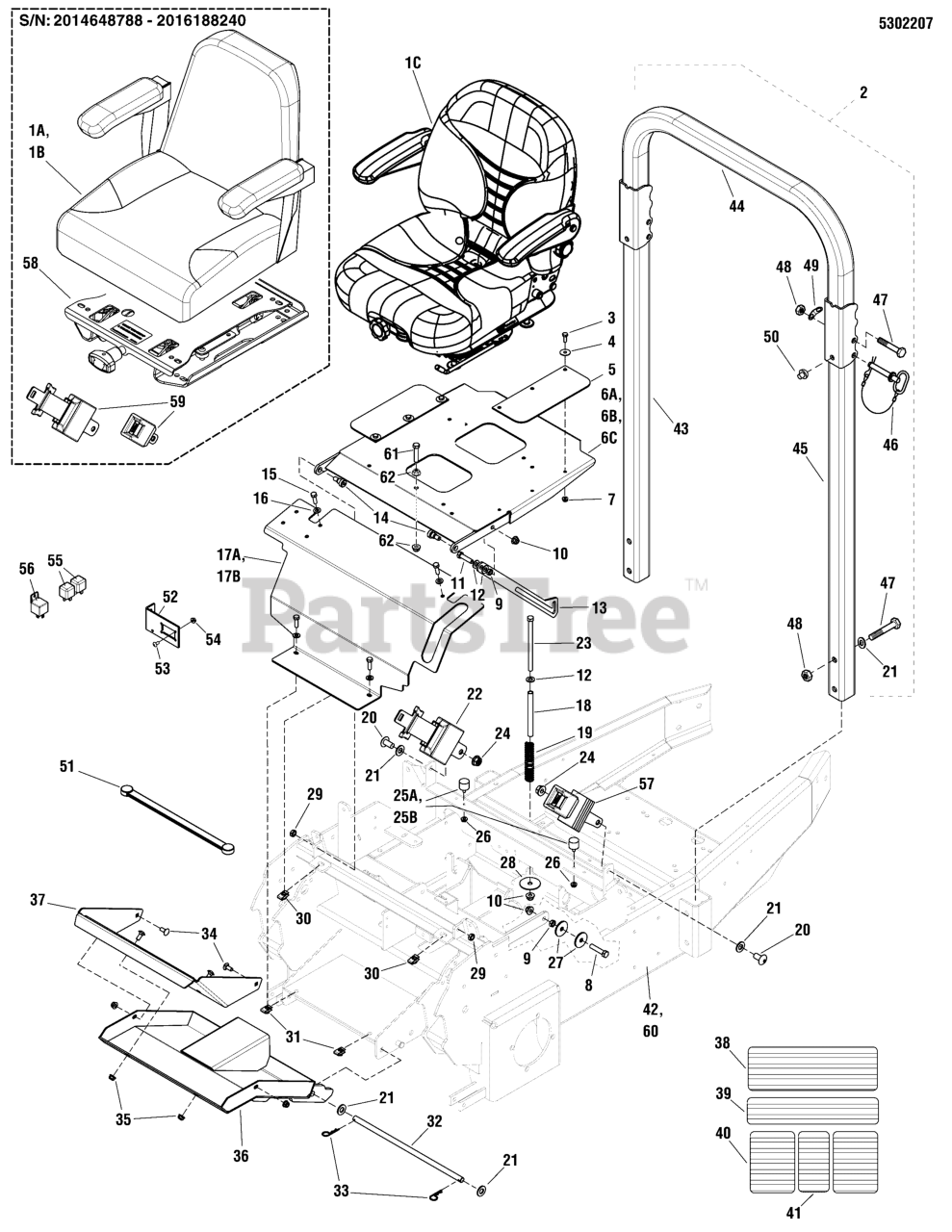

Operator Compartment Group Parts Diagram

  • Title

1A

Ferris 5103354

SEAT - 2012
(Superseded to 5104681YP)

Note: (S/N: 2015458729 - 2016188240)

$731.99

$

Usually ships in 2-12 days

0

1B

Ferris 5103004

SEAT, LOW, COMPANION

Note: (S/N: 2014648788 - 2015458728)

$

$

Currently unavailable

1C

Ferris 5101214

SEAT,SUSP.TYPE,MICHIGAN SEAT, V5300, BLK
(Superseded to 5101214FS)

Note: (S/N: 2014648787 & Below)(S/N: 2016188241 & Above)

$1192.99

$

Usually ships in 2-12 days

0

2

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

3

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

4

Ferris 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 5

0

5

Ferris 5100389

PLATE, SEAT, RUBBER FLAP
(Superseded to 5100389YP)

$4.99

$

Usually ships in 2-12 days

0

6A

Ferris 5409296B

WELD, SEAT MOUNT - RED
(Superseded to 5409296BFS)

Note: (S/N: 2015458729 & Above)

$219.99

$

Usually ships in 2-12 days

0

6B

Ferris 5407440B

WELD, SEAT MOUNT - RED

Note: (S/N: 2014648788 - 2015458728)

$

$

Currently unavailable

6C

Ferris 5403250B

SEAT PLATE WELDMENT - RED

Note: (S/N: 2014648787 & Below)

$

$

Currently unavailable

7

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

9

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

11

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5403792B

BAR, SEAT PROP - RED
(Superseded to 5403792BFS)

$22.99

$

Usually ships in 2-12 days

0

14

Ferris 5025356

BOLT, 3/8-16 X 3/8", 1/2" SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

15

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17A

Ferris 5407565B

PLATE, FRONT COVER - RED

Note: (S/N: 2014648788 & Above)

$

$

Currently unavailable

17B

Ferris 5403216B

PLATE, BRAKE COVER - RED

Note: (S/N: 2014648787 & Below)

$

$

Currently unavailable

18

Ferris 5046586

SPACER, .38 X .50 X 5.06, CZ
(Superseded to 5046586SM)

$12.99

$

In Stock, only 4 left!

0

19

Ferris 5100356

SPRING, .688 ID X .130 WIRE DIA 4.25
(Superseded to 5100356SM)

$16.99

$

Usually ships in 2-12 days

0

20

Ferris 5100267

SCREW, 1/2 - 13 X 1.00 SCHS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

22

ORDER P/N 5105137 (CONTAINS BOTH SEAT BELT RETRACTOR & SUPER SLEEVE BUCKLE)

Note: (S/N: 2014648787 & Below)(S/N: 2016188241 & Above)

$

$

Not available

23

Ferris 5025013X48

BOLT, 3/8-16 X 6" GD5 CZ
(Superseded to 5025013X48SM)

$5.99

$

In Stock, Qty 7

0

24

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 10

0

25A

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

Note: (S/N: 2014648788 & Above)

$7.99

$

Usually ships in 2-12 days

0

25B

Ferris 5022673

BUMPER, RUBBER, 1/4-20
(Superseded to 5022673SM)

Note: (S/N: 2014648787 & Below)

$18.99

$

Usually ships in 2-12 days

0

26

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

27

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

In Stock, only 1 left!

0

28

Ferris 5025326

WASHER, .39 X 2.00 X X .14
(Superseded to 5025326SM)

$4.49

$

Usually ships in 2-12 days

0

29

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

30

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

31

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

32

Ferris 5101690

ROD, HINGE, 1/2 X 14.25, YZ
(Superseded to 5101690YP)

$19.99

$

Usually ships in 2-12 days

0

33

Ferris 5025210

3/32 X 1-5/8 HAIR PIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

34

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

35

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

36

Ferris 5403218B

WELD, FLOOR PLATE - RED
(Superseded to 5403218BFS)

$278.99

$

Usually ships in 2-12 days

0

37

Ferris 5403910B

PLATE, UPPER FLOOR
(Superseded to 5403910BFS)

$68.99

$

Usually ships in 2-12 days

0

38

Ferris 5101567

SAFETY WALK, 5.13 X 15.25
(Superseded to 5101567YP)

$13.99

$

Usually ships in 2-12 days

0

39

Ferris 5101565

SAFETY WALK, 3.13 X 15.5
(Superseded to 5101565YP)

$11.99

$

Usually ships in 2-12 days

0

40

Ferris 5101564

SAFETY WALK, 7.25 X 5.25
(Superseded to 5101564YP)

$11.99

$

Usually ships in 2-12 days

0

41

Ferris 5101566

SAFETY WALK, 7.13 X 3.63
(Superseded to 5101566YP)

$9.99

$

Usually ships in 2-12 days

0

42

Ferris 5405678B

WELD, MAIN FRAME - RED

Note: (Diesel Models)

$

$

Currently unavailable

43

ROLL BAR POST, RH

$

$

Not available

44

ROLL BAR, TOP LOOP

$

$

Not available

45

ROLL BAR POST, LH

$

$

Not available

46

Ferris 5100013

PIN, HITCH, .50 X 3.25 W/ LAY (SV)
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

47

Ferris 5025294X28

BOLT, 1/2-13 X 3-1/2, ALLEN HEAD, YZ
(Superseded to 5025294X28YP)

$1.99

$

Usually ships in 2-12 days

0

48

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 2 left!

0

49

LANYARD HOLDER

$

$

Not available

50

Ferris 5100383

RUBBER BUMPER (SV)
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

51

Ferris 1722009

STRAP, BATTERY, 14 LONG, Rubber
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

52

Ferris 5406124B

BRACKET, RELAY AND CONNECTOR MOUNT -RED

$

$

Currently unavailable

53

Ferris 5025338X5

SCREW,#8-32 X 5/8 PHILLIPS, PAN HEAD, ZP
(Superseded to 5025338X5YP)

$3.49

$

Usually ships in 2-12 days

0

54

Ferris 5025339

NUT, #8-32 Hex Nylon Lock
(Superseded to 5025339YP)

$2.99

$

Usually ships in 2-12 days

0

55

Ferris 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

56

Ferris 5100980

RELAY, 12 VOLT, 50 AMP, N.O.
(Superseded to 5100980YP)

$44.99

$

Usually ships in 2-12 days

0

57

Ferris 5105137

SEAT BELT ASSM, RETRACTOR + SUP SLEEVE
(Superseded to 5105137YP)

Note: (S/N: 2014648787 & Below)(S/N: 2016188241 & Above)

$130.99

$

Usually ships in 2-12 days

0

58

Ferris 5102761

SUSPENSION, 1110EVC, COMPANION

Note: (S/N: 2014648788 & Above)

$

$

Currently unavailable

59

Ferris 5100139

SEAT BELT, RETRACTING - ASSM - RED
(Superseded to 5100139SM)

Note: (S/N: 2014648788 - 2016188240)

$103.99

$

Usually ships in 2-12 days

0

60

Ferris 5403151B

WELD, MAIN FRAME, F/S800X - RED

Note: (Gas Models)

$

$

Currently unavailable

61

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

62

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0
