F 800X (5901235) - Ferris F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Pump Drive Group (Diesel Models) Parts Diagram

F800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

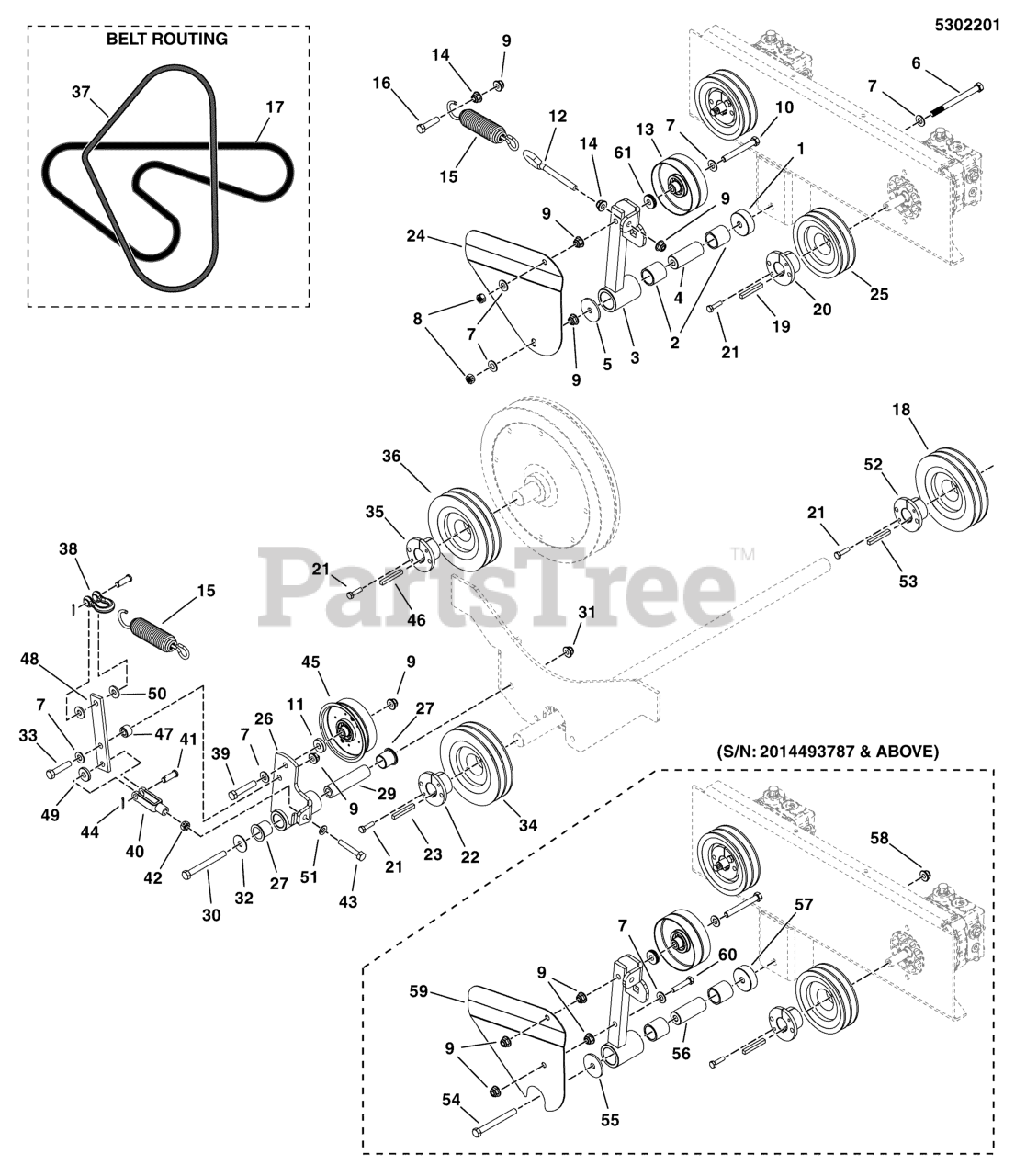

Pump Drive Group (Diesel Models) Parts Diagram

  • Title

1

Ferris 5101465

SPACER, .39 X 1.75 X .63, YZ
(Superseded to 5101465YP)

Note: (S/N: 2014493786 & Below)

$19.99

$

Usually ships in 2-12 days

0

2

Ferris 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

$12.99

$

Usually ships in 2-12 days

0

3

Ferris 5406339B

WELD, ARM, PUMP DRIVE IDLER - RED
(Superseded to 5406339BFS)

$60.99

$

Usually ships in 2-12 days

0

4

Ferris 5102004

SPACER, .39 X 1.000 X 2.55, SS
(Superseded to 5102004YP)

Note: (S/N: 2014493786 & Below)

$27.99

$

Usually ships in 2-12 days

0

5

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

Note: (S/N: 2014493786 & Below)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5025013X36

BOLT, 3/8-16 X 4-1/2" GD5 CZ
(Superseded to 5025013X36YP)

Note: (S/N: 2014493786 & Below)

$5.99

$

In Stock, only 3 left!

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2014493787 & Above Use Qty. 2)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

Note: (S/N: 2014493786 & Below)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (S/N: 2014493787 & Above Use Qty. 8)

$4.49

$

In Stock, Qty 19

0

10

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, Qty 5

0

11

Ferris 5102597

SPACER, .41 X .88 X .20, CZ

$6.99

$

Usually ships in 2-12 days

0

12

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

13

Ferris 5022373

PULLEY, FLAT IDLER 4
(Superseded to 5022373YP)

$66.99

$

Usually ships in 2-12 days

0

14

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5100633

SPRING, EXTENSION, SWIVEL, SHORT HOOK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

16

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5102039

BELT, HA-SEC, 71.60" EL, BANDED
(Superseded to 5102039FS)

Note: (Pump Drive Belt)

$177.99

$

Usually ships in 2-12 days

0

18

Ferris 5101747

PULLEY, 5.45 OD, DOUBLE GROOVE

$142.99

$

Usually ships in 2-12 days

0

19

Ferris 5023254

KEY, 5MM SQ. W/RADIUS
(Superseded to 5023254SM)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5022383

BUSHING, 17MM, HQ
(Superseded to 5022383YP)

$27.99

$

Usually ships in 2-12 days

0

21

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

Usually ships in 2-12 days

0

23

Ferris 5050407X16

KEY, 1/4 SQ X 2
(Superseded to 5050407X16SM)

$4.99

$

Usually ships in 2-12 days

0

24

Ferris 5406793B

GUARD, PUMP DRIVE BELT - RED

Note: (S/N: 2014493786 & Below)

$25.99

$

Usually ships in 2-12 days

0

25

Ferris 5022586

PULLEY, PUMP DRIVE
(Superseded to 5022586SM)

$121.99

$

In Stock, only 1 left!

0

26

Ferris 5406372B

WELD, IDLER ARM - RED

$104.99

$

Usually ships in 2-12 days

0

27

Ferris 5022250

BUSHING, FLANGE, 7/8 X 1 L
(Superseded to 5022250SM)

$9.49

$

In Stock, only 1 left!

0

28

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0

29

Ferris 5102598

SPACER, .52 X .87 X 3.69, SS

$30.99

$

Usually ships in 2-12 days

0

30

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 6

0

31

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

32

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

33

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

34

Ferris 5101182

PULLEY, 6.45" OD, DOUBLE A
(Superseded to 5101182YP)

$165.99

$

Usually ships in 2-12 days

0

35

Ferris 5101646

TAPER LOCK BUSHING, HQ-1-1/8"
(Superseded to 5101646YP)

$25.99

$

Usually ships in 2-12 days

0

36

Ferris 5022382

PULLEY, 5.75 OD X 2 GROOVE
(Superseded to 5022382FS)

$136.99

$

Usually ships in 2-12 days

0

37

Ferris 5102594

BELT, A SECTION, 40.084 EL, COGGED TYPE (SET)
(Superseded to 5102594FS)

Note: (Set of Two Belts)(PTO Drive Belt)

$59.99

$

Usually ships in 2-12 days

0

38

Ferris 5025438

ROUND, PIN ANCHOR SHACKLE
(Superseded to 5025438FS)

$34.99

$

Usually ships in 2-12 days

0

39

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

40

Ferris 5100375

CLEVIS, 5/16-18, 3/8 PIN HOLE
(Superseded to 5100375YP)

$20.99

$

In Stock, only 1 left!

0

41

Ferris 5025214X9

PIN, CLEVIS, 3/8 X 1-1/8, CZ
(Superseded to 5025214X9SM)

$3.99

$

Usually ships in 2-12 days

0

42

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

In Stock, only 1 left!

0

43

Ferris 5025055X16

BOLT, 5/16-18 X 2 GD5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 80002736

PIN, 3/32 X 0.750, COT, ZINC/CLEAR
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

45

Ferris 5103817

PULLEY, IDLER, 4" FLAT, SINGLE FLANGE
(Superseded to 5103817YP)

Note: (Was 5022621)

$64.99

$

In Stock, only 1 left!

0

46

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

47

Ferris 5047408

SPACER, .39 X .75 X .50, CZ

$

$

Currently unavailable

48

Ferris 5406376B

BAR, SPRING MOUNT PIVOT - RED

$14.99

$

Usually ships in 2-12 days

0

49

Ferris 5101965

SPACER, .390 X 1.00 X .188, YZ
(Superseded to 5101965YP)

$6.49

$

In Stock, only 1 left!

0

50

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

51

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

52

Ferris 5102724

BUSHING, TAPERED HQ X 1-1/4
(Superseded to 5102724FS)

$22.99

$

Usually ships in 2-12 days

0

53

Ferris 5025562

RFQ KEY, 1/4 X 3/16 X 2
(Superseded to 5025562FS)

$3.99

$

Usually ships in 2-12 days

0

54

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

Note: (S/N: 2014493787 & Above)

$6.49

$

Usually ships in 2-12 days

0

55

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

Note: (S/N: 2014493787 & Above)

$3.99

$

In Stock, only 1 left!

0

56

Ferris 5400022

SPACER, .52 X .99 X 2.55, SS
(Superseded to 5400022FS)

Note: (S/N: 2014493787 & Above)

$16.99

$

Usually ships in 2-12 days

0

57

Ferris 5100314

SPACER, .52 X 1.75 X .63, CZ
(Superseded to 5100314YP)

Note: (S/N: 2014493787 & Above)

$15.99

$

Usually ships in 2-12 days

0

58

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (S/N: 2014493787 & Above)

$3.49

$

In Stock, Qty 12

0

59

Ferris 5407160B

GUARD, PUMP DRIVE BELT - RED
(Superseded to 5407160BFS)

Note: (S/N: 2014493787 & Above)

$19.99

$

Usually ships in 2-12 days

0

60

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

Note: (S/N: 2014493787 & Above)

$3.99

$

In Stock, Qty 5

0

61

Ferris 5101502

SPACER, .39 X 1.0 X .25
(Superseded to 5101502YP)

$6.49

$

Usually ships in 2-12 days

0
