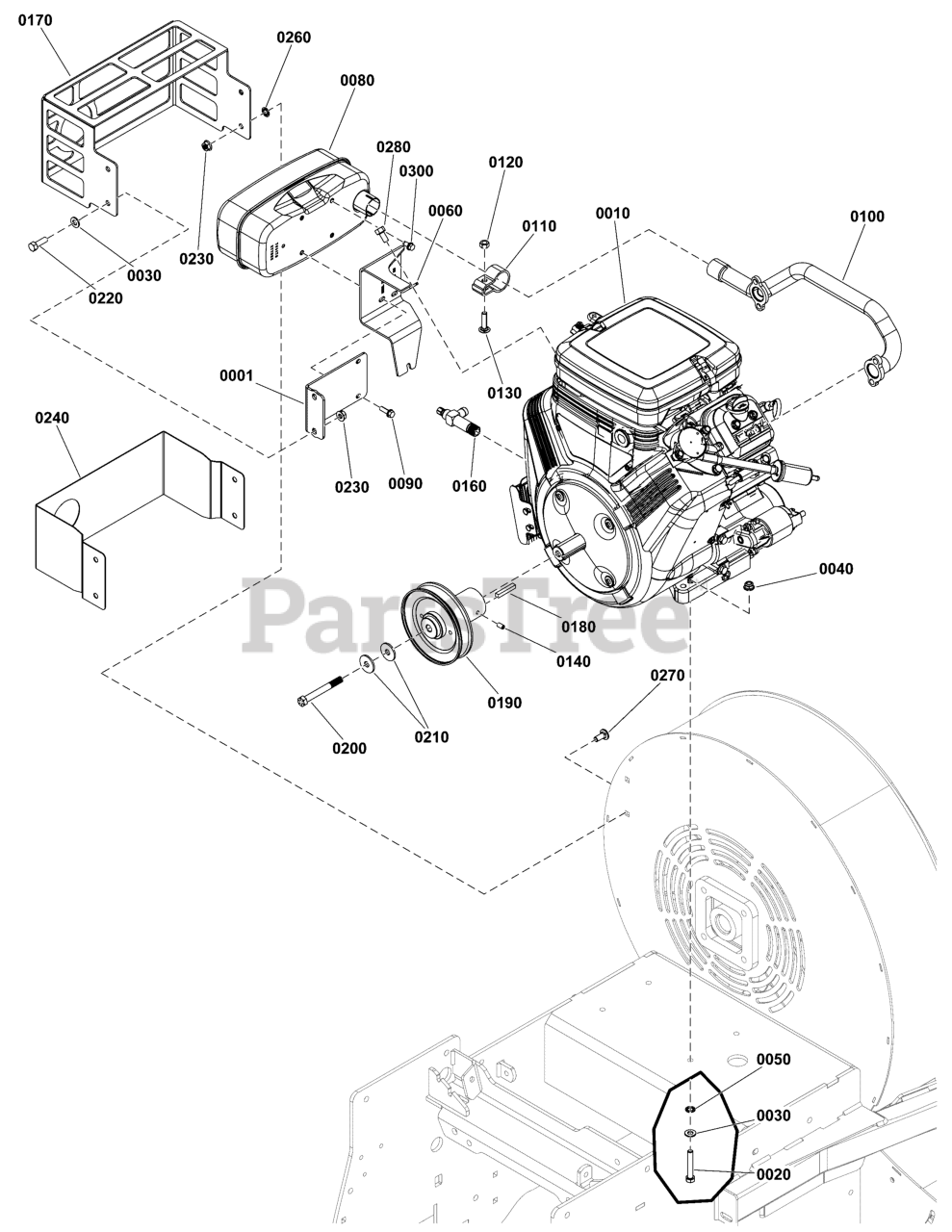

FB 1000CE - Ferris Hurricane Series Ride-On Blower Engine Group Parts Diagram

Hurricane Series Ride-On Blower

Engine Group Parts Diagram

  • Title

0001

Ferris 5421452A

PLATE, MUFFLER GUARD MOUNT-BLK
(Superseded to 5421452AFS)

$9.99

$

Usually ships in 2-12 days

0

0010

ENGINE, 356447-3545-G1

Note: (See engine manufacturer for engine service parts.)

$

$

Not available

0020

Ferris 5025025X16

BOLT, 5/16-24 x 2" GD 8

$

$

Currently unavailable

0030

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0040

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

Usually ships in 2-12 days

0

0050

Ferris 5025188

WASHER, 5/16" Internal Tooth Lock
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

0060

Ferris 806759

BRACKET, Muffler

Note: (Order replacement component from your authorized Briggs & Stratton service parts provider.)

$58.99

$

Usually ships in 2-12 days

0

0080

Ferris 498984S

MUFFLER

Note: (Order replacement component from your authorized Briggs & Stratton service parts provider.)

$84.99

$

Usually ships in 2-12 days

0

0090

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0100

Ferris 805609

MANIFOLD, Exhaust

Note: (Order replacement component from your authorized Briggs & Stratton service parts provider.)

$152.99

$

Usually ships in 2-12 days

0

0110

Ferris 691956

CLAMP, Muffler

Note: (Order replacement component from your authorized Briggs & Stratton service parts provider.)

$15.99

$

In Stock, only 1 left!

0

0120

Ferris 93203

NUT
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0

0130

BOLT, ROUND HEAD SQUARE NECK

$

$

Not available

0140

Ferris 5107269

SET SCREW, 1/4-20 X 1/2, BLK
(Superseded to 5107269FS)

$2.49

$

Usually ships in 2-12 days

0

0160

Ferris 5107284

VALVE, OIL DRAIN
(Superseded to 5107284FS)

$46.99

$

Usually ships in 2-12 days

0

0170

Ferris 5421920A

WELD, MUFFLER GUARD, FB1000 - BLK
(Superseded to 5421920AFS)

$68.99

$

Usually ships in 2-12 days

0

0180

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 1 left!

0

0190

Ferris 5109829

WELD, PULLEY, STUB SHAFT, FB1000
(Superseded to 5109829FS)

$112.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025694

BOLT, 3/8-24 X 3-1/4, GD8 PHOS

$

$

Currently unavailable

0210

Ferris 5025693

WASHER, BELLEVILLE, 1.180 X .380 X .100
(Superseded to 5025693FS)

$3.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

0240

Ferris 5421835

PLATE, MUFFLER HEAT SHIELD FB1000

$

$

Currently unavailable

0260

RETAINER,5/16X0.625,PUSHNUT,ZINC/CLEAR

$

$

Not available

0270

RHSSNB,5/16-18 X 3/4 GR5 ZINC/CLEAR

$

$

Not available

0280

Ferris 5025494

BOLT, M8-1.25 X 16MM GD8.8
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

0300

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap, BZ

$

$

Not available
