FD731V-DS04 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

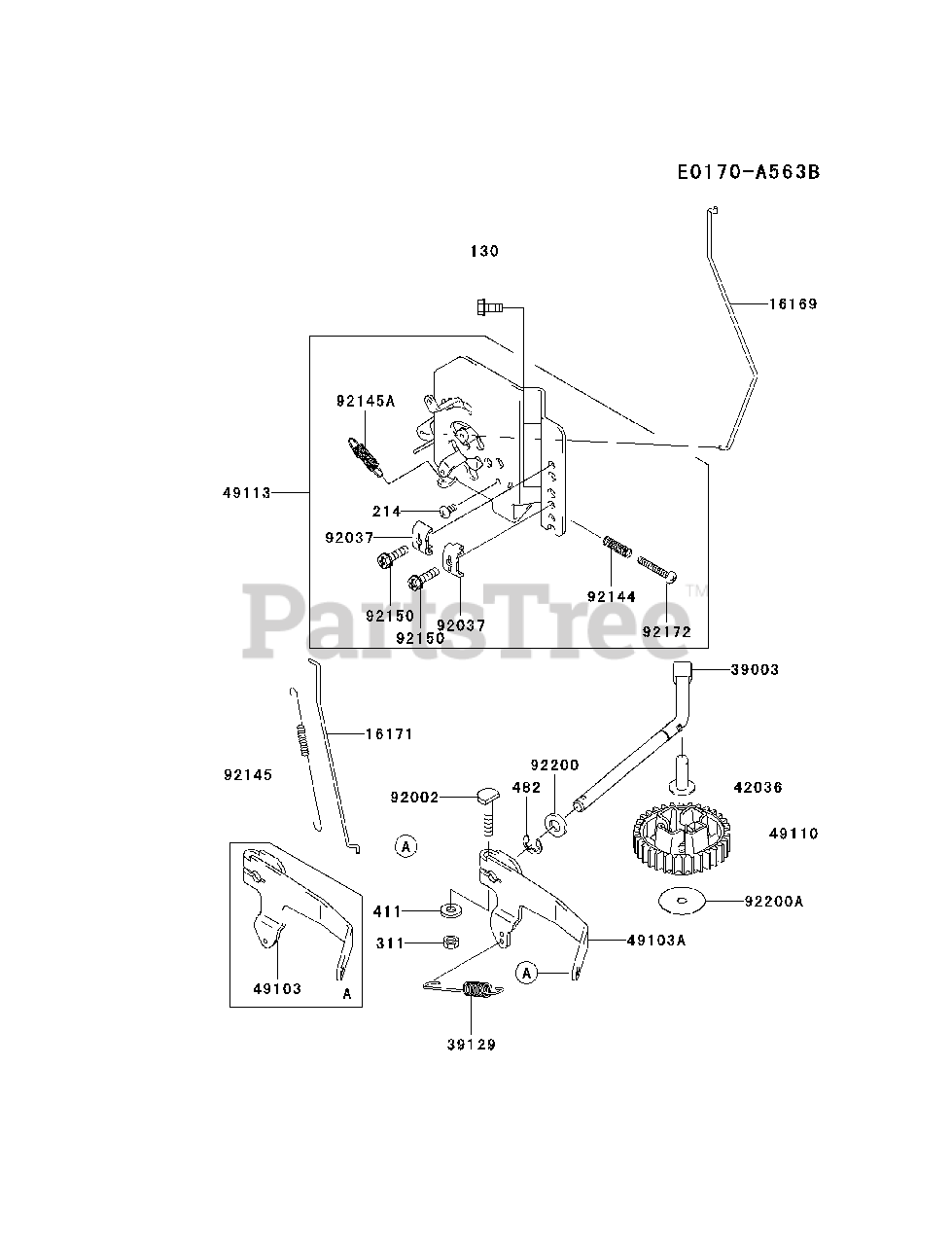

CONTROL-EQUIPMENT Parts Diagram

  • Title

16169

Kawasaki 16169-2147

LINK-CHOKE

$2.99

$

Usually ships in 2-5 days

0

16171

Kawasaki 16171-2100

LINK

$4.49

$

Usually ships in 2-5 days

0

39003

Kawasaki 39003-2093

ARM-PIVOT

$11.99

$

Usually ships in 2-5 days

0

39129

Kawasaki 39129-2116

SPRING-GOVERNOR
(Superseded to 39129-2112)

$4.99

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2060

SLEEVE
(Superseded to 42036-2059)

$4.99

$

In Stock, only 1 left!

0

49103A

Kawasaki 49103-2169

ARM-GOVERNOR
(Superseded to 49103-2165)

$9.49

$

Usually ships in 2-5 days

0

49110

Kawasaki 49110-2099

GOVERNOR-ASSY

$17.99

$

In Stock, only 1 left!

0

49113

Kawasaki 49113-2200

PANEL-COMP-CONTROL
(Superseded to 49113-2194)

$52.99

$

Usually ships in 2-5 days

0

92002

Kawasaki 92002-2269

BOLT,6X28

$1.99

$

In Stock, Qty 6

0

92037

Kawasaki 92037-2209

CLAMP

$1.49

$

In Stock, only 4 left!

0

92144

Kawasaki 92144-2220

SPRING

$1.49

$

In Stock, only 2 left!

0

92145

Kawasaki 92145-2133

SPRING

$1.49

$

In Stock, only 3 left!

0

92145A

Kawasaki 92145-2145

SPRING

$3.49

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 10

0

92172

Kawasaki 92172-2087

SCREW,4X28

$

$

Not available

92200

Kawasaki 92200-2120

WASHER,8.3X16X2.3

$0.99

$

In Stock, Qty 7

0

92200A

Kawasaki 92200-2152

WASHER,6.2X30X0.5

$0.99

$

In Stock, only 1 left!

0

130

Kawasaki 130AA0614

BOLT-FLANGED,6X14
(Superseded to 130B0614)

$0.99

$

In Stock, Qty 14

0

214

Kawasaki 214AA0408

SCREW-PAN+-,4X8
(Superseded to 214B0408)

$3.99

$

In Stock, Qty 5

0

311

Kawasaki 311AA0600

NUT-HEX,6MM
(Superseded to 16011-002)

$0.99

$

In Stock, Qty 16

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, only 2 left!

0

482

Kawasaki 482J7000

CIRCLIP-TYPE-E,7MM

$0.99

$

In Stock, Qty 8

0
