FG110 A (FAAA) - Honda 9" Tiller, Made in USA (SN: FAAA-1000001 - FAAA-1199999) MUFFLER Parts Diagram

9" Tiller, Made in USA

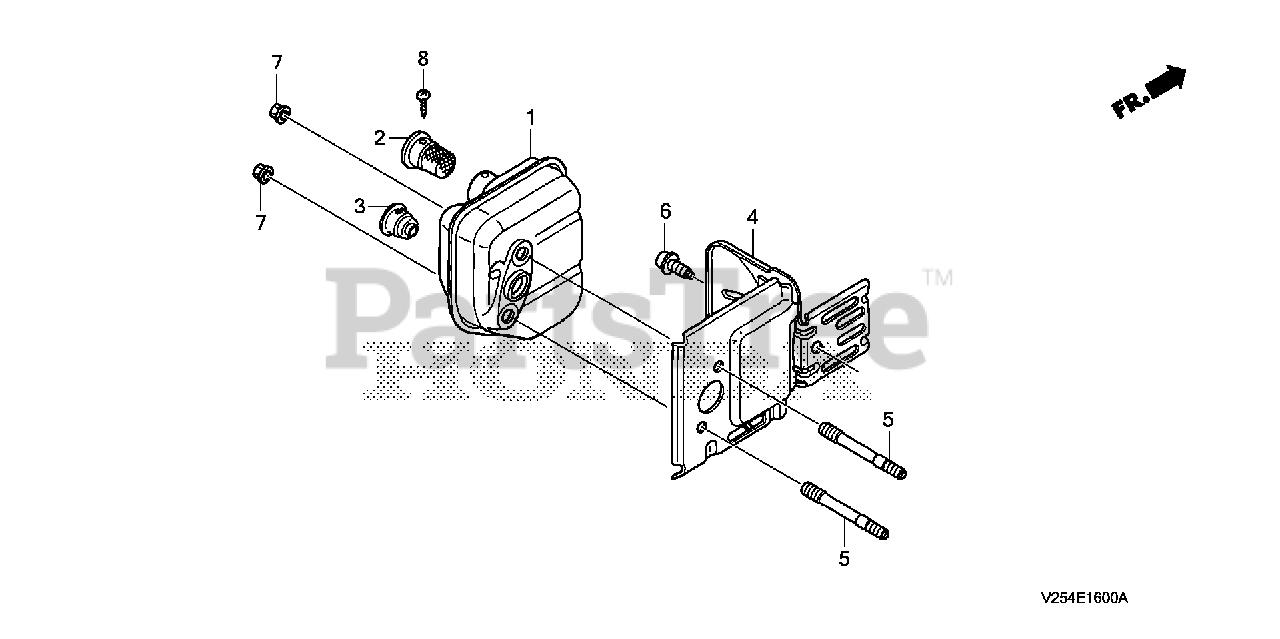

MUFFLER Parts Diagram

  • Title
1

Honda 18310-Z0H-820

SEE PART DETAILS - SUP; MUFFLER
(Superseded to 18310-Z0H-821)

Note: Use up to Engine SN 2444995.

$21.99

$

Usually ships in 3-6 days

0

1

Honda 18310-Z0H-821

SEE PART DETAILS - PRI; MUFFLER

$21.99

$

Usually ships in 3-6 days

0

1

Honda 18310-Z0H-841

SEE PART DETAILS - PRI; MUFFLER (ARRESTER)

Note: (Optional).

$26.99

$

Usually ships in 3-6 days

0

2

Honda 18350-Z0H-820

ARRESTER, SPARK

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

3

Honda 18366-Z0H-820

FLANGE, BAFFLE

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

4

Honda 18515-Z0H-000

GUIDE, AIR EX.

$8.49

$

In Stock, only 1 left!

0

5

Honda 90001-Z0H-003

BOLT, STUD (5X52)

$0.99

$

Usually ships in 3-6 days

0

6

Honda 90011-Z0H-003

BOLT, SOCKET (5X10) (CT)

$0.99

$

In Stock, Qty 9

0

7

Honda 90136-SM4-901

NUT, SELF-LOCK (5MM)

$7.99

$

Usually ships in 3-6 days

0

8

Honda 93901-22010

SCREW, TAPPING (3X6)

Note: (Optional).

$0.99

$

In Stock, Qty 8

0
