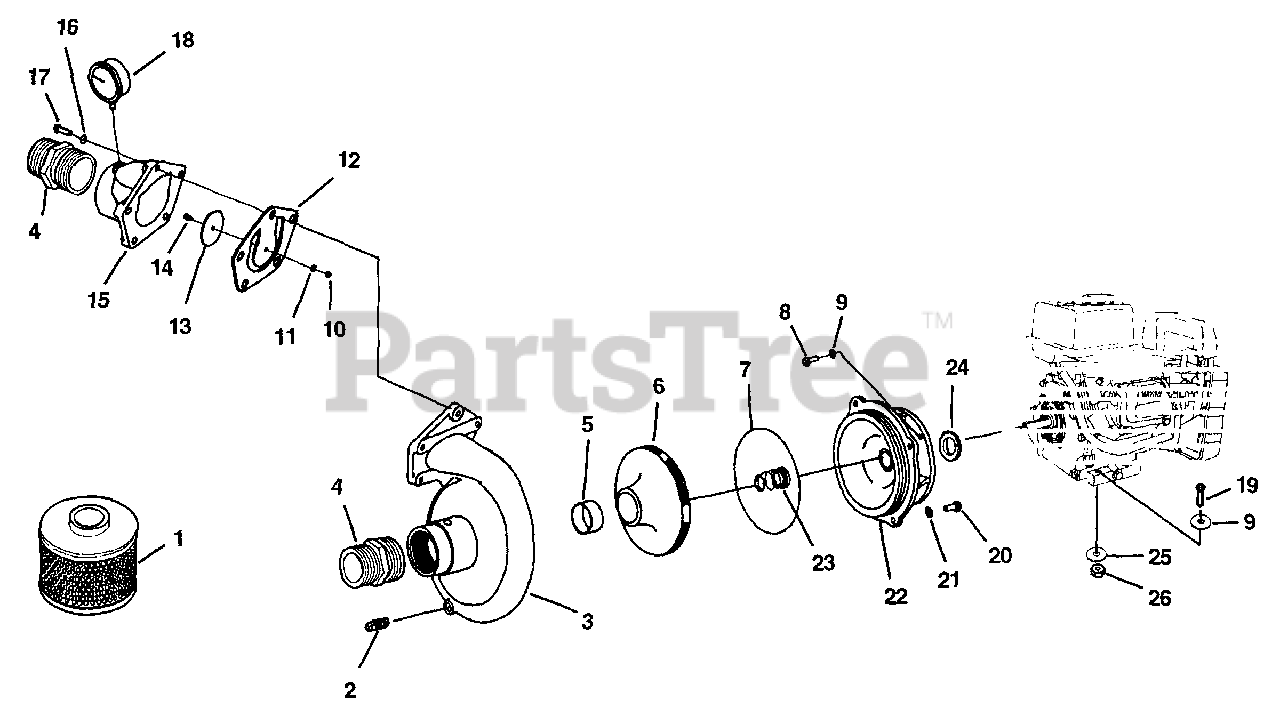

FP 250 V (UT-01293-D) - Homelite Pressure Pump Pump Parts Diagram

Pressure Pump

Pump Parts Diagram

  • Title

1

Homelite 01521

STRAINER 2 1/2-8 NPS

Note: (Standard)

$

$

Not available

Homelite 43742

STRAINER 2 1/2-7 1/2 NH

Note: (Optional)

$

$

Not available

2

Homelite 20629

PLUG-Drain
(Superseded to UP06806)

$

$

Not available

3

Homelite A488431A

PUMP BODY
(Superseded to UP06403)

$

$

Not available

4

Homelite 43741

NIPPLE 2 1/2-7 1/2 NH x 2 1/2-8 NPT

Note: Brass (Optional)

$

$

Not available

Homelite 01464

NIPPLE 2 1/2-11 Whitworth x 2 1/2-8 NPT

Note: Brass (Optional)

$

$

Not available

5

Homelite 47447

BEARING

$

$

Not available

6

Homelite PA00125

IMPELLER
(Superseded to UP07038)

$

$

Not available

7

Homelite 47468

"O" RING

$

$

Not available

8

Homelite 80095

SCREW-Hex Hd. (3/8-16 x 1)

Note: Torque to 240-300 in/lbs or 27.1-33.9 Nm

$

$

Not available

9

Homelite 84010

WASHER-Flat (3/8)
(Superseded to PS84010)

$

$

Not available

10

Homelite 81225

NUT-Hex (12-24)

$

$

Not available

11

Homelite 48488

WASHER-Flat (#12)
(Superseded to UP06642)

$

$

Not available

12

Homelite 48845

VALVE-Flapper

$

$

Not available

13

Homelite 47361

WEIGHT-Valve

$

$

Not available

14

Homelite 80676

SCREW-Hex Hd. Mach (12-24 x 5/8)

Note: Torque to 20-25 in/lbs or 2.3-2.8 Nm

$

$

Not available

15

Homelite 488441A

BODY-Valve
(Superseded to UP08150)

$

$

Not available

16

Homelite 83116

WASHER-3/8 Collar
(Superseded to UP07172)

$

$

Not available

17

Homelite 82479

SCREW-Socket Hd. (3/8-16 x 2)
(Superseded to UP07301)

Note: Torque to 140-160 in/lbs or 15.8-8.1 Nm

$

$

Not available

18

Homelite 47048

GAUGE-Pressure

$

$

Not available

19

Homelite 80098

SCREW-Cap Hex Hd. (3/8-16 x 1 3/4)

Note: Torque to 160-200 in/lbs or 18.1-22.6 Nm

$

$

Not available

20

Homelite 80446

SCREW-Cap Hex Hd. (1/2-13 x 1)

Note: Torque to 350-400 in/lbs or 39.6-45.2 Nm

$

$

Currently unavailable

21

Homelite 84035

WASHER-Flat (1/2)

$

$

Not available

22

Homelite 473641A

HOUSING-End
(Superseded to UP06398)

$

$

Not available

23

Homelite 47046

SEAL-Shaft

$

$

Not available

24

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

25

Homelite 83018

WASHER-Lock (3/8)

$

$

Not available

26

Homelite 81043

NUT-Hex (3/8-16)

$

$

Not available
