FR-18 (136-008-190) - White Outdoor Front-Mount Riding Mower (1996) Transmission And Drive Chains Parts Diagram

Front-Mount Riding Mower

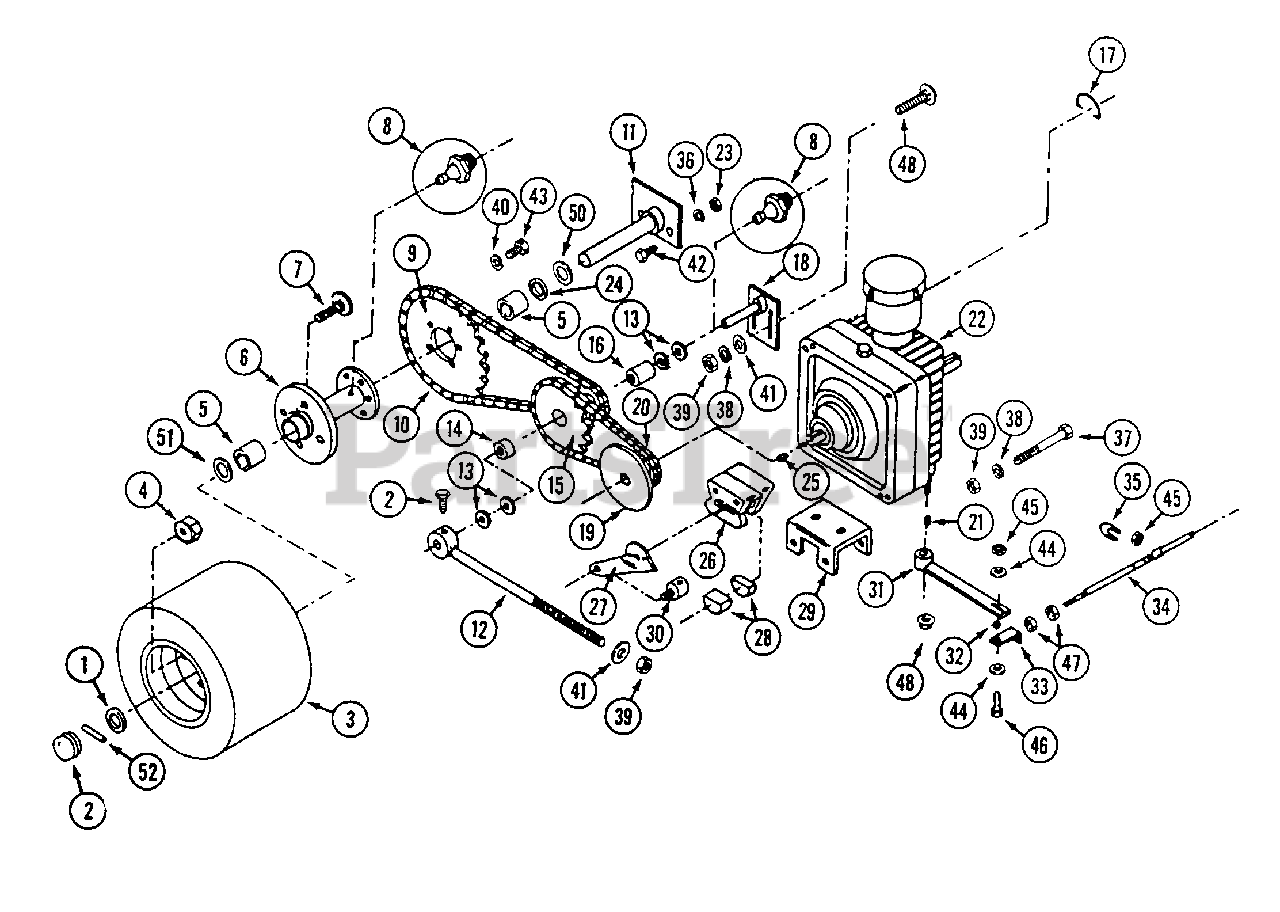

Transmission And Drive Chains Parts Diagram

  • Title

1

WD-C46058

SPACER - hub

$

$

Not available

2

White Outdoor WD-C28317

CAP - hub

$

$

Not available

3

White Outdoor WD-C45887

WHEEL ASSEMBLY - drive

$

$

Not available

White Outdoor WD-C37652

TIRE - 18 x 9.50 - 8

$

$

Not available

White Outdoor WD-C45888

RIM - wheel

$

$

Not available

4

White Outdoor WD-C37657

NUT - lug 1/2" - 20

$

$

Not available

5

White Outdoor WD-C45928

BEARING - wheel hub

$

$

Not available

6

WD-C45933

HUB - wheel

$

$

Not available

7

White Outdoor WD-C37661

BOLT - lug 1/2" - 20 x 1-1/4"

$

$

Not available

8

White Outdoor WD-219-20

FITTING - grease 1/4" - 28 self tapping

$

$

Not available

9

White Outdoor WD-C37994

SPROCKET - final Drive

$

$

Not available

10

WD-C45927

CHAIN - final drive

$

$

Not available

11

WD-C45929

AXLE - drive wheel

$

$

Not available

12

White Outdoor WD-C37998

COLLAR - support

$

$

Not available

13

White Outdoor WD-C37999

WASHER - 3/4" 10 ga.

$

$

Not available

14

White Outdoor WD-C38000

BEARING - idler sprocket 1/2"
(Superseded to 741-0665)

$19.99

$

In Stock, only 1 left!

0

15

White Outdoor WD-C38002

SPROCKET - idler

Note: (Includes bearings)

$

$

Not available

White Outdoor WD-C38001

SPROCKET - idler (w/o bearings)

$

$

Not available

16

White Outdoor WD-C38003

BEARING - idler sprocket 3/4"

$

$

Not available

17

White Outdoor WD-C38004

CLIP - transmission dump valve

$

$

Not available

18

White Outdoor WD-C38005

SHAFT - idler sprocket

$

$

Not available

19

White Outdoor WD-C38006

SPROCKET - transmission

Note: (Includes brake disc)

$

$

Not available

20

White Outdoor WD-C44083

CHAIN - primary drive

$

$

Not available

21

WD-126-6

KEY - 1/8" x 3/8" Woodruff

$

$

Not available

22

White Outdoor WD-C38008

TRANSMISSION L.H. (CW)
(Superseded to WD-C47003P)

Note: (Shown)

$

$

Not available

22

White Outdoor WD-C38009

TRANSMISSION - R.H. (CCW)

$

$

Not available

WD-C38010

DIAPHRAGM - transmission

$

$

Not available

White Outdoor WD-C38011

KIT - seal
(Superseded to ET-990314-000)

$

$

Not available

White Outdoor WD-C38012

KIT - reservoir, transmission

$

$

Not available

23

White Outdoor WD-129-105

NUT - 1/2" - 13
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor WD-C18097

SEAL - oil

$

$

Not available

25

White Outdoor WD-C37664

KEY - woodruff 1/8" x 112"
(Superseded to 914-0112)

$

$

Not available

White Outdoor WD-C37626

BRAKE ASSEMBLY - L.H,

$

$

Not available

White Outdoor WD-C37625

BRAKE ASSEMBLY - R.H.

$

$

Not available

26

~NSS

CALIPER - brake

$

$

Not available

27

White Outdoor WD-C38016

LEVER - caliper L.H.

$

$

Not available

WD-C38017

LEVER - caliper R.H.

$

$

Not available

28

White Outdoor WD-C37627

PAD - brake (set)

$

$

Not available

29

White Outdoor WD-C38018

BRACKET - caliper

$

$

Not available

30

White Outdoor WD-C37724

COLLAR - caliper rod

$

$

Not available

31

White Outdoor WD-C37698

ARM - transmission L.H.

$

$

Not available

31

White Outdoor WD-C37699

ARM - transmission R.H.

$

$

Not available

32

White Outdoor WD-C42895

BUSHING - cable end

$

$

Not available

33

White Outdoor WD-C42896

END - steering cable

$

$

Not available

34

White Outdoor WD-C37705

CABLE - steering

$

$

Not available

35

White Outdoor WD-C37616

CLAMP - steering cable

$

$

Not available

36

White Outdoor WD-192-23

LOCKWASHER - 1/2"

$

$

Not available

37

WD-113-241

BOLT - 3/8" - 16 x 3"

$

$

Not available

38

White Outdoor WD-192-21

LOCKWASHER - 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

39

White Outdoor WD-129-103

NUT - 3/8" - 16
(Superseded to 712-04065)

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

41

White Outdoor WD-195-104

WASHER - 3/8"

$

$

Not available

42

White Outdoor WD-113-412

BOLT - 1/2" - 13 x 1-3/4"

$

$

Not available

43

White Outdoor WD-113-103

BOLT - 5/16" 18 x 1"

$

$

Not available

44

White Outdoor WD-195-102

WASHER - 1/4"

$

$

Not available

45

White Outdoor WD-131-71

NUT - 1/4" - 20 lock

$

$

Not available

46

WD-113-4

BOLT - 1/4" - 20 x 1"

$

$

Not available

47

White Outdoor WD-C37598

NUT - #10 - 32 lock

$

$

Not available

48

WD-111-366

BOLT - carriage 3/8" - 16 x 1-1/4"

$

$

Not available

?49

White Outdoor WD-131-1352

NUT - 3/8" - 16 flange lock

$

$

Not available

50

WD-C15557

SHIM - .050"

$

$

Not available

51

WD-C15656

SHIM - .010"

$

$

Not available

52

WD-138-138

PIN - roll 1/4" x 1-1/2"

$

$

Not available
