FR-18 - White Outdoor Front-Mount Riding Mower (1985) 42-Inch Mower Deck (11 HP Only) Parts Diagram

Front-Mount Riding Mower

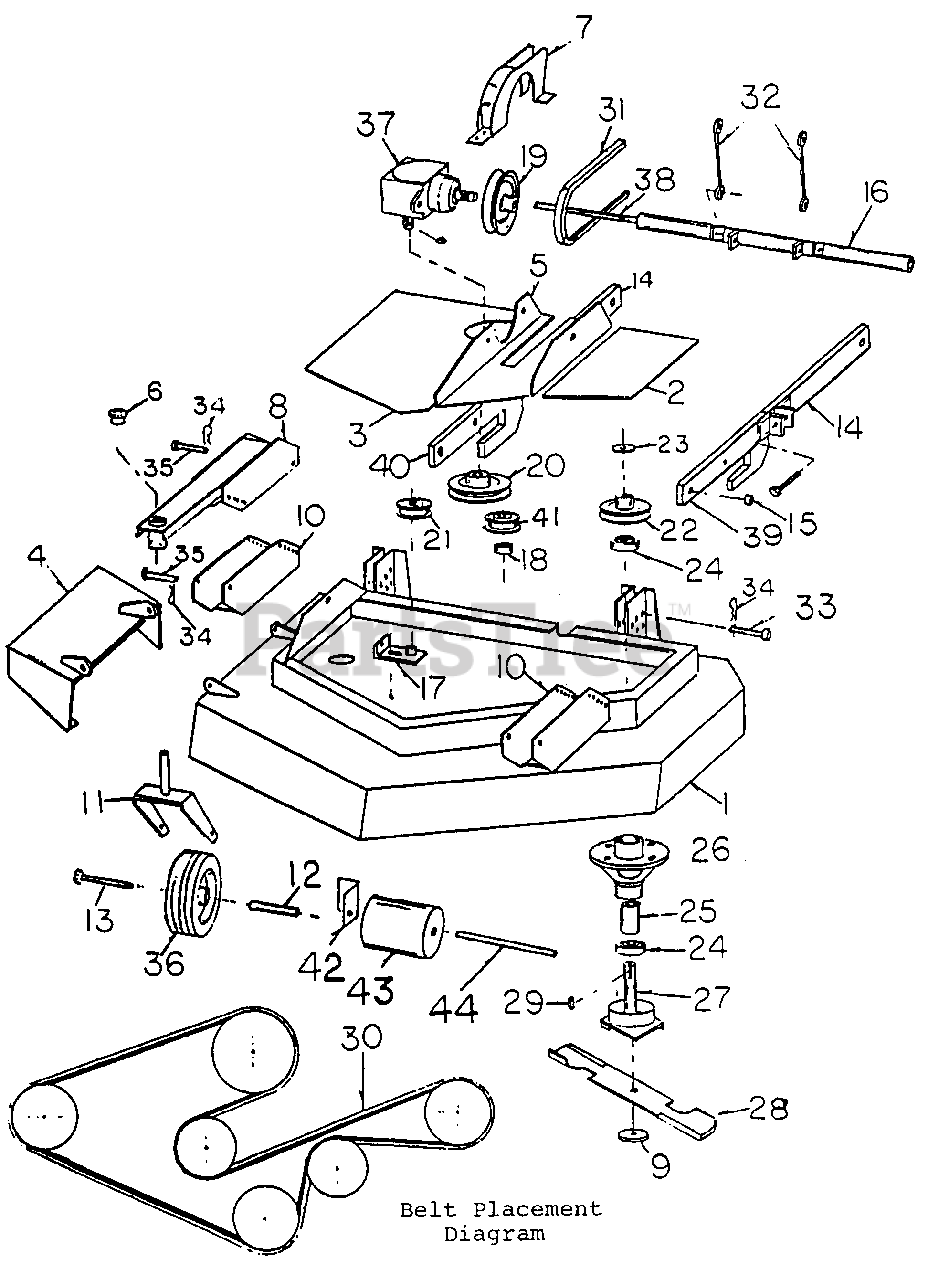

42-Inch Mower Deck (11 HP Only) Parts Diagram

  • Title
1

MTD WD-300-0000

MOWER DECK

Note: NLA

$

$

Not available

2

MTD WD-300-0001

COVER (Small)

Note: NLA

$

$

Not available

3

MTD WD-300-0028

COVER (Large)

Note: NLA

$

$

Currently unavailable

4

MTD WD-300-0035

FOOT GUARD

Note: NLA

$

$

Currently unavailable

5

MTD WD-301-0004

GEAR BOX MOUNT

Note: NLA

$

$

Currently unavailable

6

MTD WD-900-3507

GAGE WHEEL BUSHING

Note: NLA

$

$

Not available

7

MTD WD-300-0036

BELT GUARD

Note: NLA

$

$

Currently unavailable

8

MTD WD-300-0007

GAGE WHEEL MOUNT

Note: NLA

$

$

Not available

9

MTD WD-900-5534

SPRING WASHER

Note: NLA

$

$

Not available

10

MTD WD-300-0009

BRACKET, GAGE WHEEL MOUNT

Note: NLA

$

$

Not available

11

MTD WD-300-0010

FORK, GAGE WHEEL

Note: NLA

$

$

Not available

12

MTD WD-300-0011

AXLE, GAGE WHEEL

Note: NLA

$

$

Not available

13

GAGE WHEEL BOLT

$

$

Not available

14

MTD WD-301-0024

DECK LIFT ARM BACK ADJUSTABLE

Note: NLA

$

$

Currently unavailable

15

MTD WD-C37586

BUSHING, DECK LIFT ARM

$

$

Not available

16

MTD WD-300-0014

CROSSBAR

Note: NLA

$

$

Not available

17

MTD WD-300-0015

BELT TIGHTNER

Note: NLA

$

$

Not available

18

MTD WD-C37937

SPACER, IDLER

$

$

Not available

19

MTD WD-C37892

PULLEY, GEAR BOX(Input)

$

$

Not available

20

MTD WD-900-2505

PULLEY, GEAR BOX(Output)

Note: NLA

$

$

Not available

21

MTD WD-900-2518

PULLEY, IDLER TIGHTENER

Note: NLA

$

$

Not available

22

MTD WD-C37887

PULLEY, SPINDLE

$

$

Not available

23

MTD WD-C37900

WASHER, SPINDLE

$

$

Not available

24

MTD WD-C42786P

BEARING, SPINDLE

$88.99

$

In Stock, only 1 left!

0

25

MTD WD-300-0027

SPACER. SPINDLE

Note: NLA

$

$

Not available

26

MTD WD-300-0025

HOUSING, SPINDLE

Note: NLA

$

$

Not available

27

MTD WD-C37883

SHAFT, SPINDLE

$

$

Not available

28

$

$

Not available

29

MTD 914-0105

KEY, SPINDLE

$3.99

$

Usually ships in 3-6 days

0

30

MTD WD-900-3003A

DECK BELT

Note: NLA

$

$

Not available

31

MTD WD-900-3002

DRIVE BELT

Note: NLA

$

$

Not available

32

MTD WD-C37816

CABLE, DECK

$

$

Not available

33

MTD WD-900-5519

PINS, DECK

Note: NLA

$

$

Not available

34

MTD WD-900-5520

HAIR PINS

Note: NLA

$

$

Not available

35

MTD WD-900-5521

PINS, GAGE WHEEL

Note: NLA

$

$

Currently unavailable

36

MTD WD-900-4007

GAGE WHEEL

Note: NLA

$

$

Not available

37

MTD WD-900-5526

GEAR BOX

Note: NLA

$

$

Not available

38

MTD WD-300-0022

CROSS BAR PIN

Note: NLA

$

$

Currently unavailable

39

MTD WD-300-0023

L.H. 1 DECK LIFT ARM FRONT ADJUSTABLE L.H.

Note: NLA

$

$

Currently unavailable

40

MTD WD-300-0023

R.H. 1 DECK LIFT ARM FRONT ADJUSTABLE R.H.

Note: NLA

$

$

Currently unavailable

41

MTD WD-900-2508B

IDLER PULLEY

Note: NLA

$

$

Not available

42

MTD WD-300-0037

ROLLAR BRACKET

Note: NLA

$

$

Currently unavailable

43

MTD WD-900-5559

RUBBER ROLLAR

Note: NLA

$

$

Not available

44

MTD WD-300-0038

ROLLAR SHAFT

Note: NLA

$

$

Not available
