FR-180 (135-013-190) - White Outdoor Front-Mount Riding Mower (1995) Electrical Assembly (Deck Lift) (Winch Style) Parts Diagram

Front-Mount Riding Mower

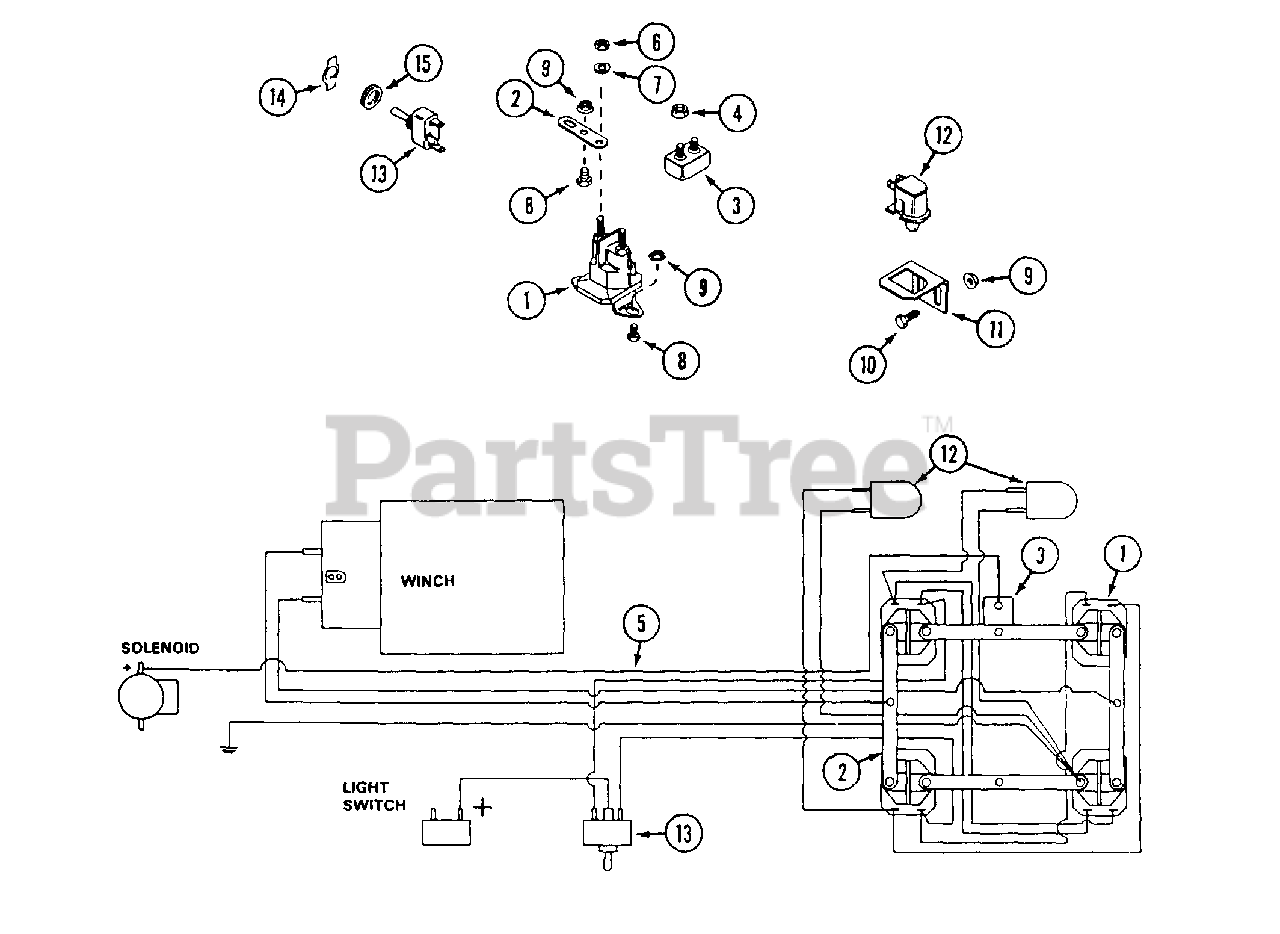

Electrical Assembly (Deck Lift) (Winch Style) Parts Diagram

  • Title
1

White Outdoor WD-C33024

SOLENOID - 12V
(Superseded to WD-C33024P)

$

$

Not available

2

WD-C43966

STRAP

$

$

Not available

3

White Outdoor WD-C43983

BREAKER - 40 amp., 12V

$

$

Not available

4

White Outdoor WD-900-6150

NUT - #10 - 32

$

$

Not available

5

WD-C43969

HARNESS - wire

$

$

Not available

6

WD-129-101

NUT - 1/4" - 20

$

$

Not available

7

WD-192-19

LOCKWASHER - 1/4"

$

$

Not available

8

WD-113-1

BOLT - 1/4" - 20 x 1/2"

$

$

Not available

9

White Outdoor WD-131-934

NUT - 1/4" - 20 flange

$

$

Not available

10

White Outdoor WD-113-3

BOLT - 1/4" - 20 x 3/4"

$

$

Not available

11

White Outdoor WD-C43965

BRACKET - switch

$

$

Not available

12

White Outdoor WD-C33744

SWITCH - limit

$

$

Not available

13

White Outdoor WD-C43985

SWITCH - lift

$

$

Not available

14

WD-C44495

DECAL - switch identification

$

$

Not available

15

White Outdoor WD-C44471

NUT - 15/32" - 32, switch

$

$

Not available
