FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) 62" Mower Drive Parts Diagram

Front-Mount Riding Mower

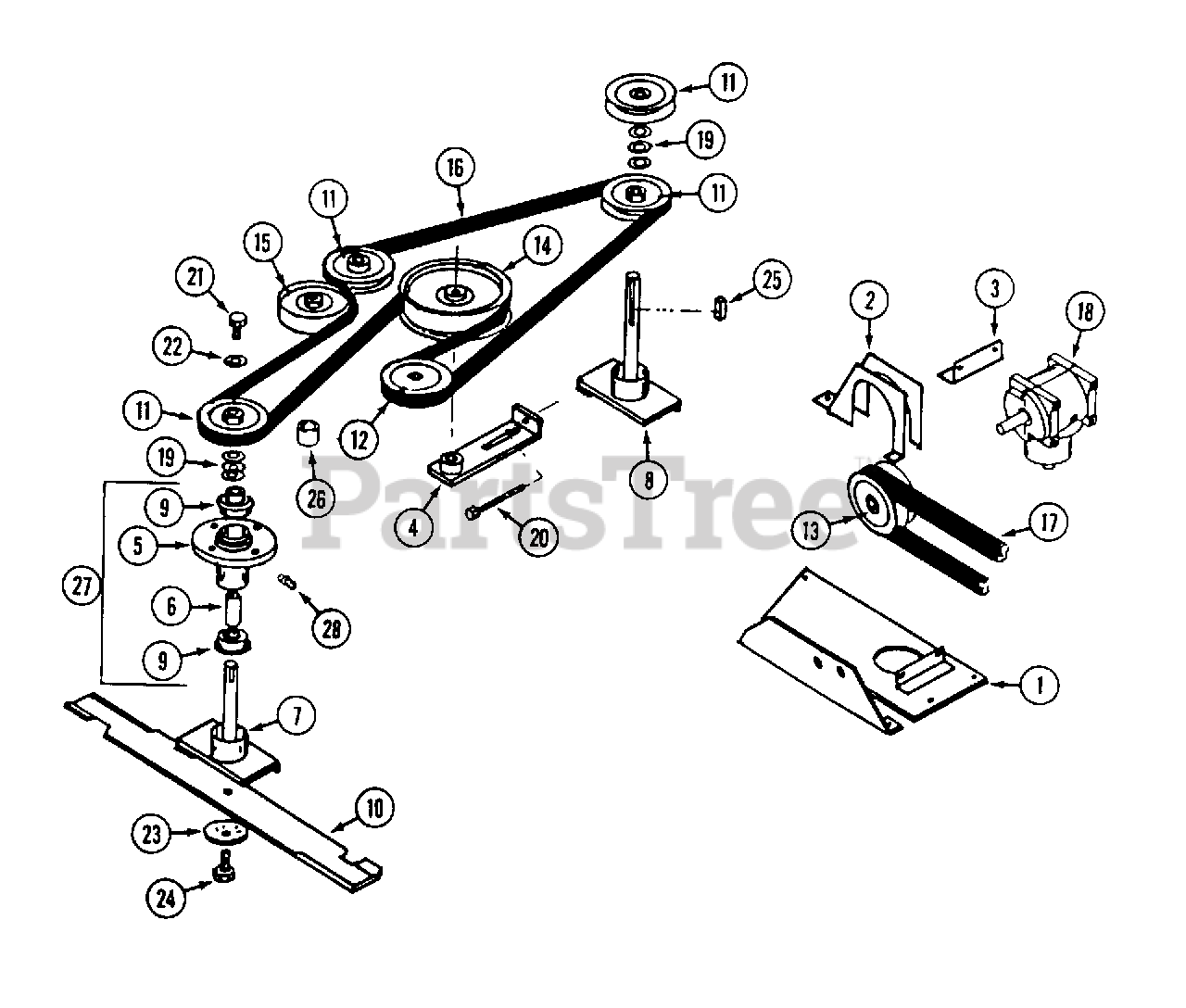

62" Mower Drive Parts Diagram

  • Title
1

White Outdoor WD-C41757

MOUNT - gear box

$

$

Not available

2

$

$

Not available

3

White Outdoor WD-C37877

ANGLE - gear box mount

$

$

Not available

4

White Outdoor WD-C37929

TIGHTENER - belt

$

$

Not available

5

White Outdoor WD-C37946

HOUSING - spindle

$

$

Not available

6

White Outdoor WD-C37946

SPACER spindle

$

$

Not available

7

White Outdoor WD-C37947

SHAFT - spindle, short

Note: Use before S/N 013306063

$176.99

$

Usually ships in 3-6 days

0

White Outdoor WD-C44132

SHAFT - spindle, short

Note: Use S/N 013306063 and after

$

$

Not available

8

White Outdoor WD-C37948

SHAFT - spindle, long

Note: Use before S/N 013306063

$

$

Not available

White Outdoor WD-C44134

SHAFT - spindle, long

Note: Use S/N 013306063 and after

$

$

Not available

9

White Outdoor WD-C42786

BEARING - spindle
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

10

White Outdoor WD-C37949

BLADE

Note: Use before S/N 013306063

$

$

Not available

White Outdoor WD-C44138

BLADE

Note: Use S/N 013306063 and after

$

$

Not available

11

White Outdoor WD-C37950

PULLEY - spindle

$

$

Not available

12

White Outdoor WD-C37932

PULLEY - gear box output

$

$

Not available

13

White Outdoor WD-C37893

PULLEY - gear box input

$

$

Not available

14

White Outdoor WD-C37933

PULLEY - idler, large

$104.99

$

Usually ships in 3-6 days

0

15

White Outdoor WD-C37934

PULLEY - idler, small

$

$

Not available

16

$

$

Not available

17

$

$

Not available

18

White Outdoor WD-C37898

GEAR BOX - angle drive

Note: (Curtis model)

$

$

Not available

White Outdoor WD-C42775

GEAR BOX - angle drive

Note: (Superior model)

$

$

Not available

19

White Outdoor WD-C37888

WASHER - spacer

$

$

Not available

20

White Outdoor WD-C37901

BOLT - 1/4" - 20 x 4"

$

$

Not available

21

White Outdoor WD-C39386

BOLT - 5/16" - 24 x 3/4"
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

22

White Outdoor WD-C37900

WASHER - 5/16", 10 ga

$

$

Not available

23

White Outdoor WD-C37876

WASHER - blade

Note: Use before S/N 013306063

$

$

Not available

24

White Outdoor WD-C37557

BOLT - 3/8" - 24 x 1-1/4"
(Superseded to WD-114-201)

Note: Use before S/N 013306063

$

$

Not available

White Outdoor WD-113-268

BOLT - 3/8" - 16 x 1"

Note: (Also requires 131-1216 locknut). Use S/N 013306063 and after

$

$

Not available

25

White Outdoor WD-C29581

KEY - 3/16" x 3/16" x 1"

$

$

Not available

26

White Outdoor WD-C37937

SPACER - idler pulley

$

$

Not available

27

White Outdoor WD-C37951

HOUSING ASSEMBLY - spindle

Note: (Includes ref. 5, 6, 9)

$

$

Not available

28

White Outdoor WD-219-20

FITTING - grease 1/4" - 28

$

$

Not available

$

$
