FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Drive Wheels Parts Diagram

Front-Mount Riding Mower

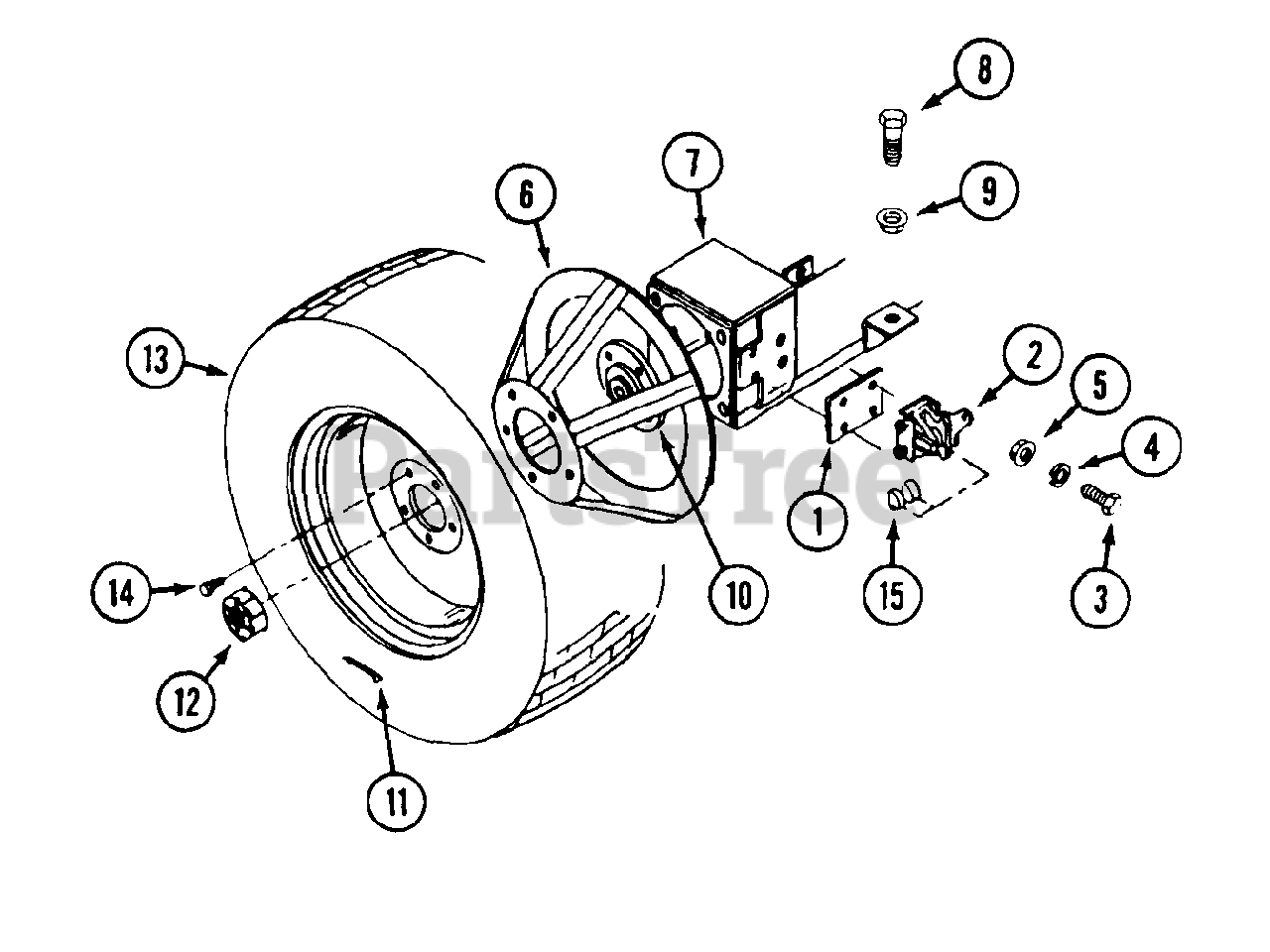

Drive Wheels Parts Diagram

  • Title
1

WD-C45277

MOUNT - caliper

$

$

Not available

2

White Outdoor WD-C45485

BRAKE - caliper L.H.

$

$

Not available

WD-C45486

BRAKE - caliper R.H.

$

$

Not available

3

White Outdoor WD-113-102

BOLT - 5/16" - 18 x 3/4"

$

$

Not available

4

White Outdoor WD-192-20

LOCKWASHER - 5/16"

$

$

Not available

5

White Outdoor WD-131-911

NUT - 5/16" - 18 flange lock
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

6

$

$

Not available

7

WD-C45274

AXLE - drive

$

$

Not available

8

White Outdoor WD-113-417

BOLT - 1/2" - 13 x 1-1/4" (axle mounting)

$

$

Not available

9

White Outdoor WD-131-930

NUT - 1/2" - 13 flange lock (axle mounting)

$

$

Not available

10

White Outdoor WD-C44847

HUB - mounting

$

$

Not available

11

WD-132-337

PIN - cotter 1/8" x 1-3/4"

$

$

Not available

$

$

Not available

13

~NSS

WHEEL ASSEMBLY - 20 x 10-10

$

$

Not available

WD-C44850

RIM

$

$

Not available

14

WD-C44848

BOLT - lug 1/2" - 20 x 1"

$

$

Not available

15

White Outdoor WD-C37627

PUCKS - brake (1 pair)

$

$

Not available
