FR-1800 D (135-028-190) - White Outdoor Front-Mount Riding Mower (1995) Starter Assembly Parts Diagram

Front-Mount Riding Mower

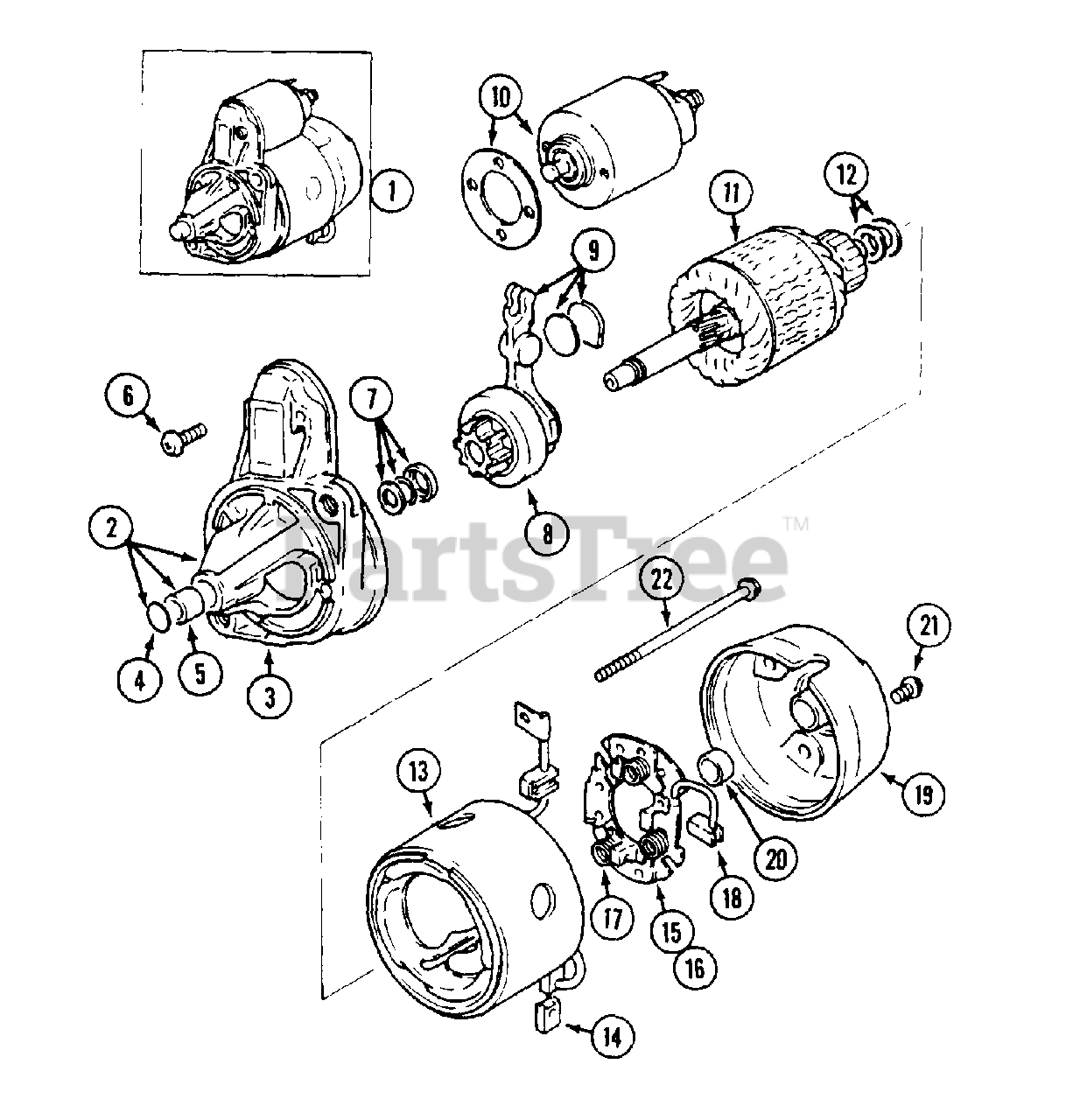

Starter Assembly Parts Diagram

  • Title

1

WD-C43609

STARTER

$

$

Not available

2

WD-P185846471

COVER ASSEMBLY

$

$

Not available

3

~NSS

COVER

$

$

Not available

4

~NSS

RING

$

$

Not available

5

WD-P185846472

BUSHING

$

$

Not available

6

WD-P185846468

SCREW

$

$

Not available

7

WD-P185846473

WASHER

$

$

Not available

8

WD-P185866240

PINION

$

$

Not available

9

WD-P185846469

LEVER

$

$

Not available

10

WD-P185816220

SWITCH

$

$

Not available

11

WD-P185846474

ARMATURE

$

$

Not available

12

WD-P185846475

WASHER

$

$

Not available

13

WD-P185846476

YOKE

$

$

Not available

14

WD-P185416400

BRUSH

$

$

Not available

15

WD-P185416390

HOLDER ASSEMBLY

$

$

Not available

16

~NSS

HOLDER

$

$

Not available

17

WD-P185886010

SPRING

$

$

Not available

18

WD-P185416410

BRUSH

$

$

Not available

19

WD-P185846477

COVER

$

$

Not available

20

WD-P185846478

BUSHING

$

$

Not available

21

WD-P185846468

SCREW

$

$

Not available

22

WD-P185846470

SCREW

$

$

Not available
