FR-2000 C (130-026-190) - White Outdoor Front-Mount Riding Mower (1990) Onan Engine Parts Parts Diagram

Front-Mount Riding Mower

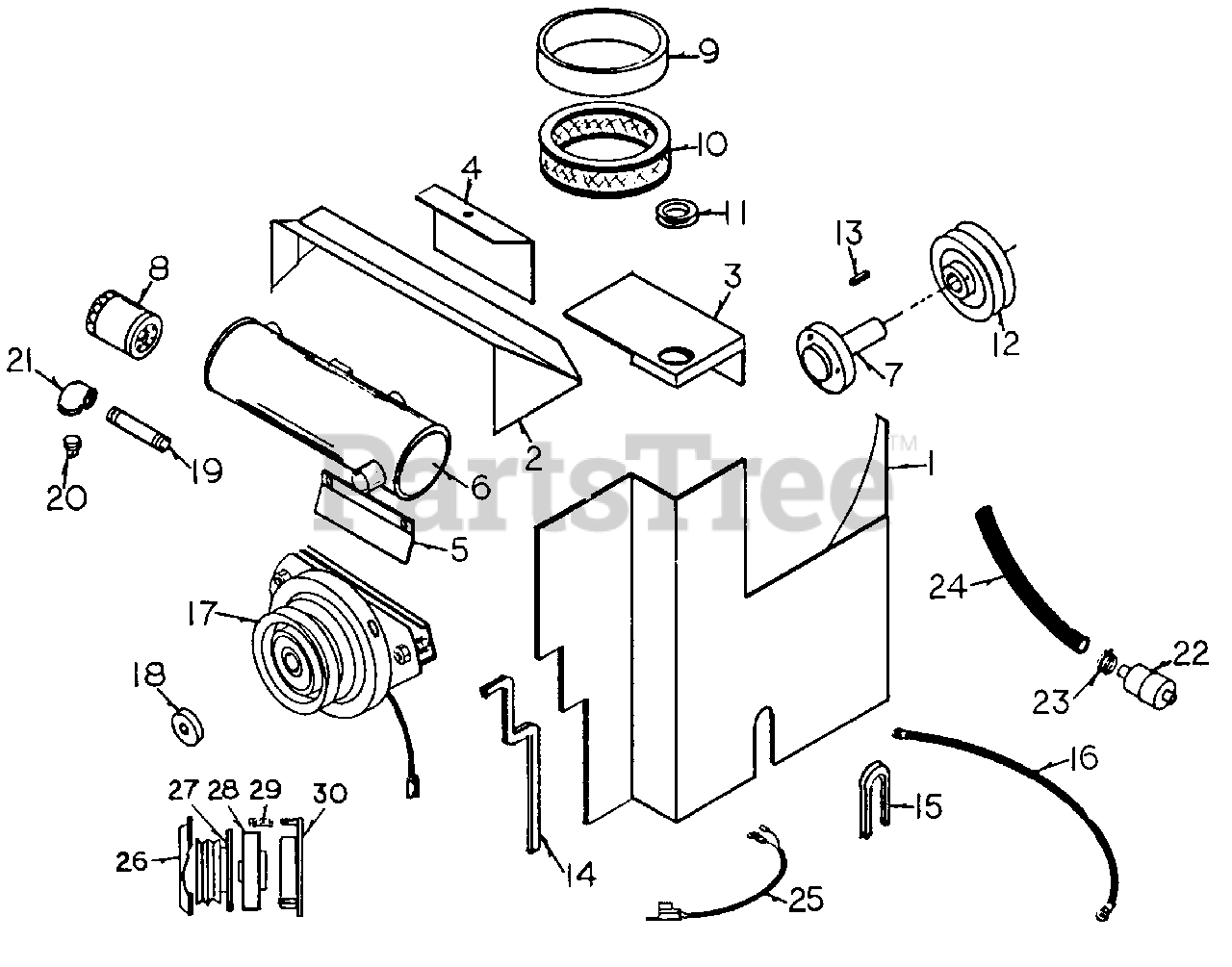

Onan Engine Parts Parts Diagram

  • Title
1

WD-112-0018

Heat Shield, Part A

$

$

Not available

2

WD-112-0019

Heat Shleld, Part B

$

$

Not available

3

WD-112-0020

Heat Shleld, Part C

$

$

Not available

4

WD-112-0021

Heat Shield, Part D

$

$

Not available

$

$

Not available

6

$

$

Not available

7

WD-900-5024

Onan Engine Shaft

$

$

Not available

8

White Outdoor WD-900-5025

Onan Oil Filter
(Superseded to ME-122-0645)

$43.99

$

Usually ships in 3-6 days

0

9

White Outdoor WD-900-5026

Onan Filter Element
(Superseded to ME-140-1496-01)

$

$

Not available

10

White Outdoor WD-900-5027

Onan Filter Cartridge
(Superseded to ME-140-2628-01)

$

$

Not available

$

$

Not available

$

$

Not available

13

White Outdoor WD-100-0014

Key Stock, 1/4" x 1"
(Superseded to 714-0128)

$4.99

$

In Stock, Qty 6

0

$

$

Not available

$

$

Not available

16

$

$

Not available

17

White Outdoor WD-900-5716

Electric Clutch

Note: (Complete)

$

$

Not available

18

White Outdoor WD-900-5575

Clutch Retainer Washer

$

$

Not available

19

WD-900-5721

Pipe Nipple, 3/8"

$

$

Not available

20

White Outdoor WD-900-8024

Pipe Plug, 3/8"

$

$

Not available

21

WD-900-5720

Pipe Elbow, 3/8"

$

$

Not available

22

White Outdoor WD-900-5514

Fuel Fllter
(Superseded to BS-298090S)

$

$

Not available

23

White Outdoor WD-900-5525

Fuel Line Clamp
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

24

WD-900-5770

Fuel Line, 38"

$

$

Not available

25

WD-900-2071

Starter Harness

$

$

Not available

26

$

$

Not available

27

White Outdoor WD-900-5771

Clutch Amature

$

$

Not available

28

$

$

Not available

29

White Outdoor WD-900-5586

Clutch Brake Spring

Note: (Set of 3)

$

$

Not available

30

$

$

Not available
