FR-2000 C (132-026-190) - White Outdoor Front-Mount Riding Mower (1992) Curtis Gearbox Parts Diagram

Front-Mount Riding Mower

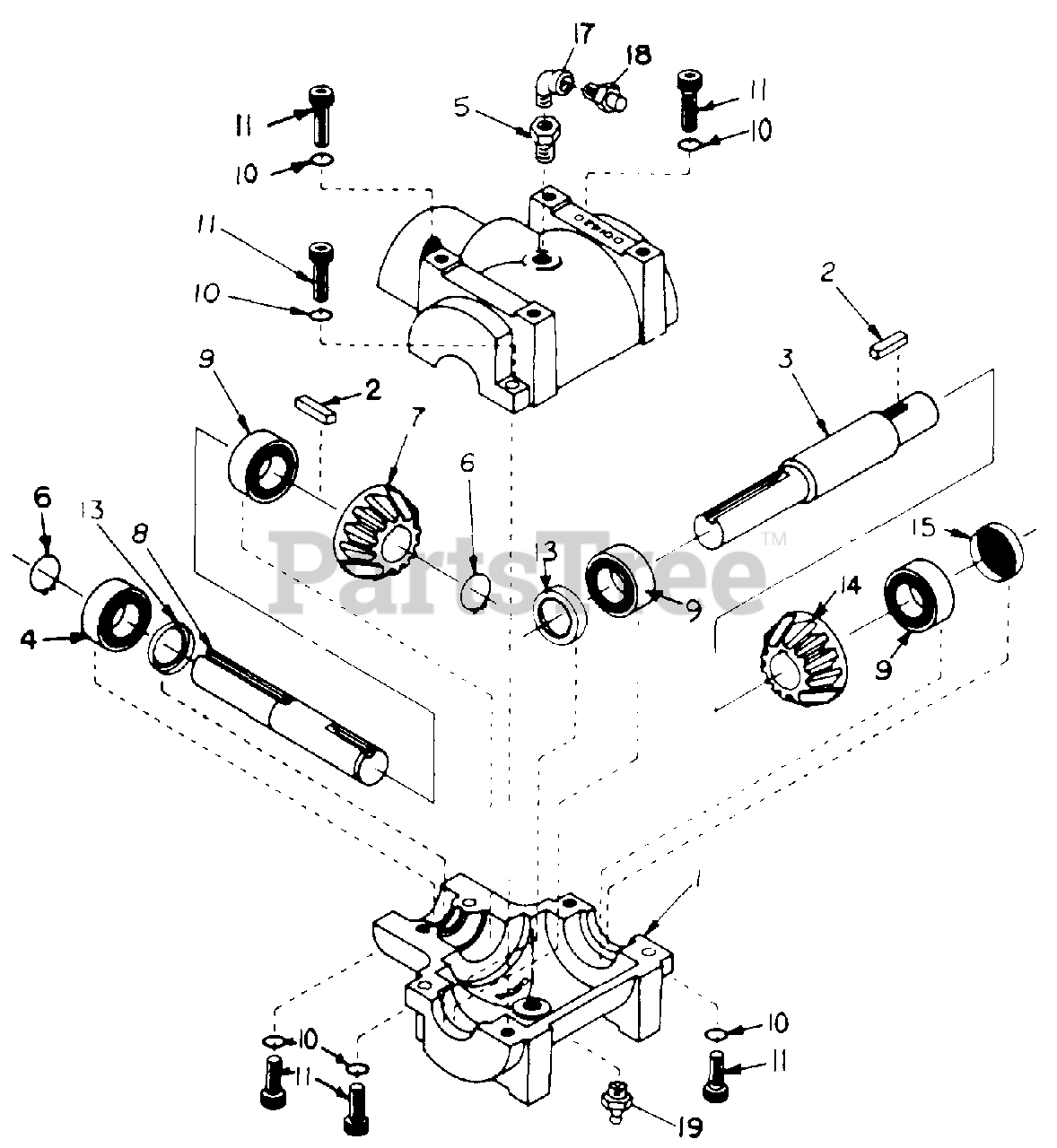

Curtis Gearbox Parts Diagram

  • Title

White Outdoor WD-900-5842

Curtis Gearbox

$

$

Not available

1

$

$

Not available

2

White Outdoor WD-900-7001

Key, 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

$

$

Not available

4

White Outdoor WD-900-7008

Ball Bearing
(Superseded to WD-C37961P)

$

$

Not available

5

White Outdoor WD-15001

Pipe Bushing, 1/4" x 1/8"

$

$

Not available

6

White Outdoor WD-900-7005

Retaining Ring

$

$

Not available

7

White Outdoor WD-900-7038

Output Shaft Gear

$

$

Not available

$

$

Not available

9

White Outdoor WD-900-7041

Ball Bearing
(Superseded to WD-C37966)

$

$

Not available

10

WD-900-7009

Lockwasher

$

$

Not available

11

White Outdoor WD-900-7010

Allenhead Capscrew

$

$

Not available

$

$

Not available

14

White Outdoor WD-900-7040

Input Shaft Gear

$

$

Not available

15

White Outdoor WD-900-7043

Expansion Plug
(Superseded to WD-C37971)

$

$

Not available

$

$

Not available

17

WD-900-5020

Street Elbow, 1/8" x 90°

$

$

Not available

18

$

$

Not available

19

White Outdoor WD-900-7053

Grease Zerk, 1/4" NPT

$

$

Not available

WD-999-2010

Grease, SHC-460

$

$

Not available
