FR-2000 C (133-026-190) - White Outdoor Front-Mount Riding Mower (1993) Fuel System Parts Diagram

Front-Mount Riding Mower

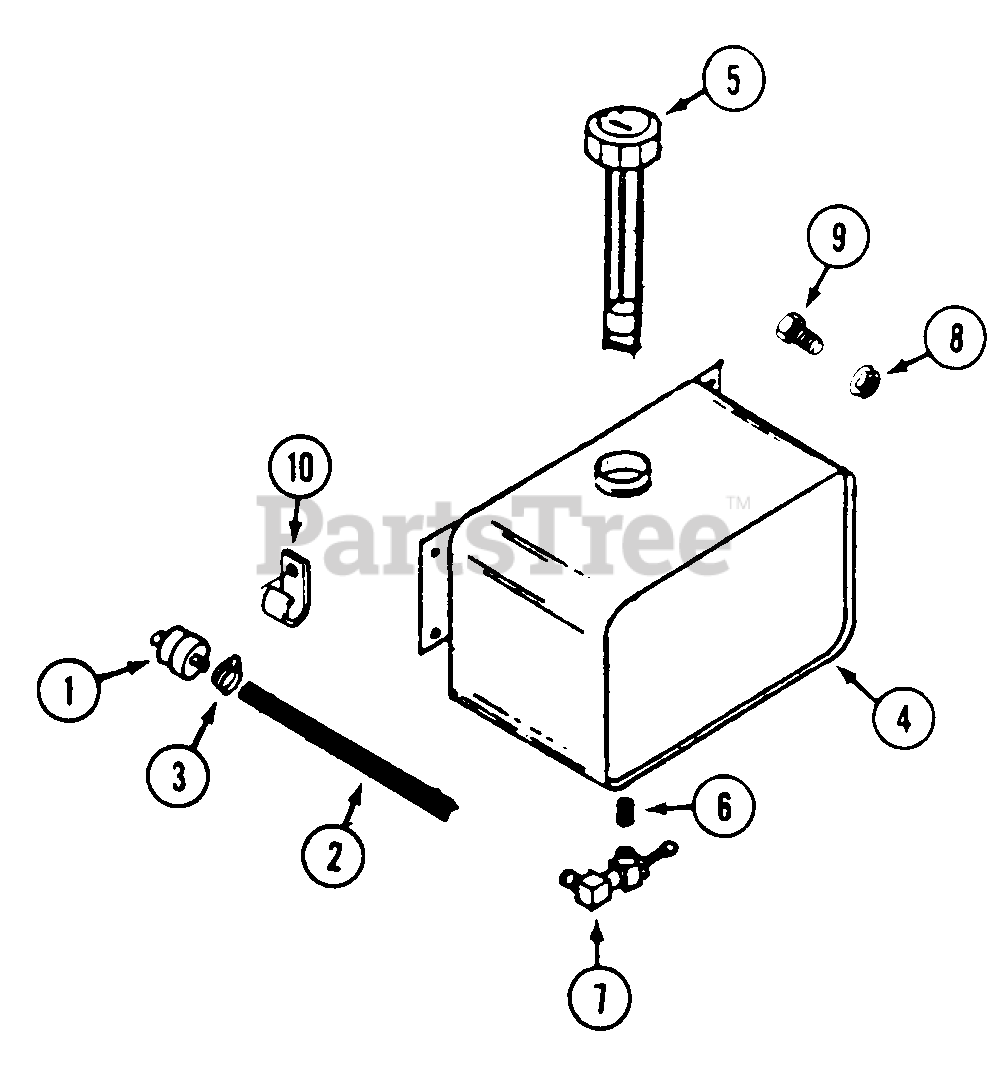

Fuel System Parts Diagram

  • Title
1

White Outdoor WD-900-5514

FILTER - fuel
(Superseded to BS-298090S)

$

$

Not available

2

WD-C44027

HOSE - fuel

Note: (Cut to length)

$

$

Not available

3

$

$

Not available

$

$

Not available

5

White Outdoor WD-C44290

CAP - fuel tank

Note: (With gauge)

$

$

Not available

6

White Outdoor WD-900-5706

NIPPLE - pipe 1/8"

$

$

Not available

7

White Outdoor WD-900-5513

VALVE - shut off

$

$

Not available

8

White Outdoor WD-131-934

NUT - 1/4"-20 flange lock

$

$

Not available

9

WD-113-1

BOLT - 1/4"-20 x 1/2"

$

$

Not available

9

White Outdoor WD-113-3

BOLT - 1/4"-20 x 3/4"

$

$

Not available

10

WD-C32455

CLIP - "J" fuel line

$

$

Not available
