FR-2200 G (130-027-190) - White Outdoor Front-Mount Riding Mower (1990) 62" Deck Drive Parts Diagram

Front-Mount Riding Mower

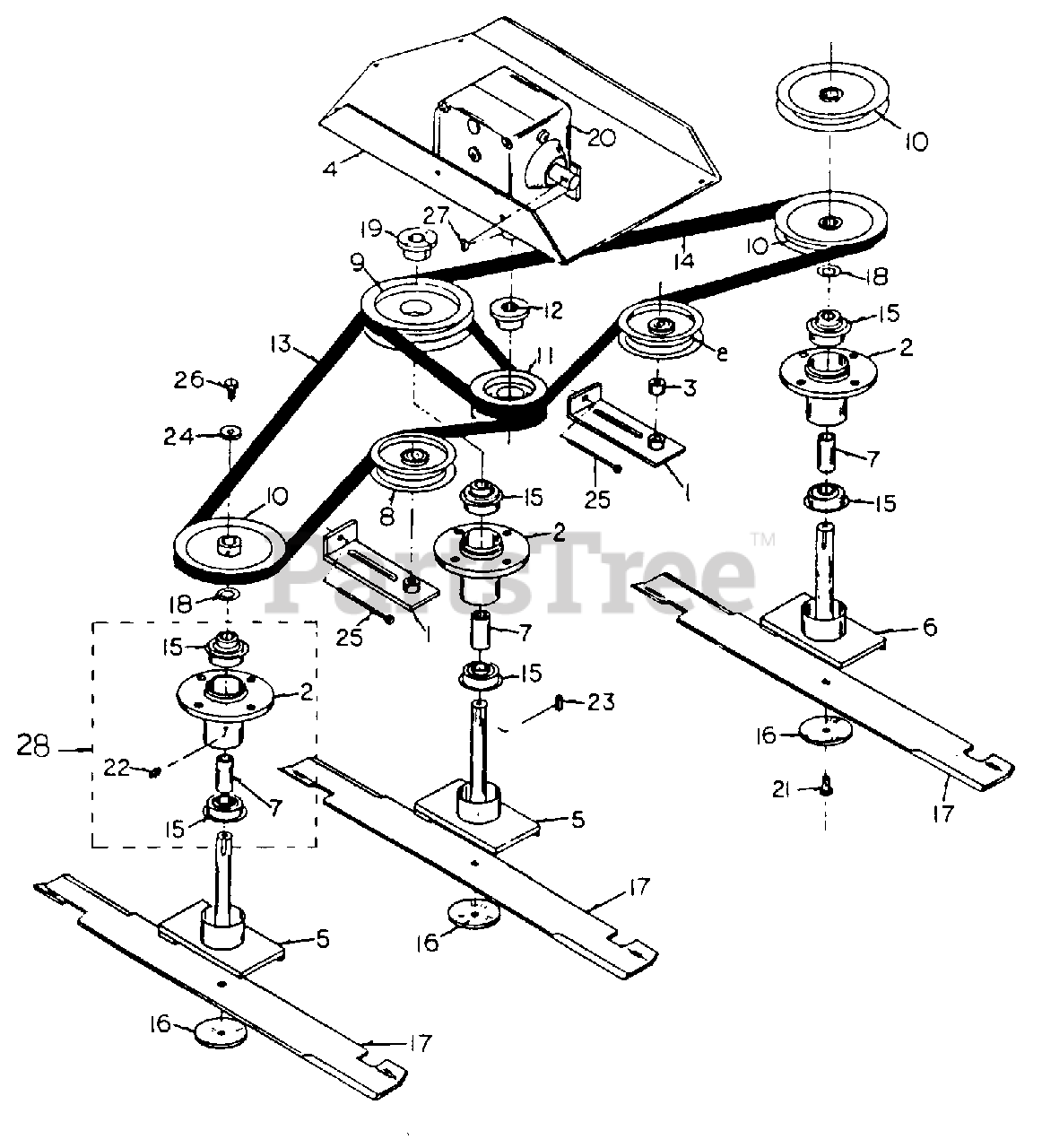

62" Deck Drive Parts Diagram

  • Title
1

White Outdoor WD-300-0015

Belt Tightener

$

$

Not available

2

White Outdoor WD-300-0031

Houslng Spindle

$

$

Not available

3

White Outdoor WD-300-0016

Spacer
(Superseded to WD-C37937)

$

$

Not available

4

WD-335-0001

Gearbox Mount

$

$

Not available

5

White Outdoor WD-300-0032

Short Spindle Shaft
(Superseded to WD-C37947)

$176.99

$

Usually ships in 3-6 days

0

6

White Outdoor WD-300-0040

Long Spindle Shaft
(Superseded to WD-C37948)

$

$

Not available

7

White Outdoor WD-300-0034

Spindle Spacer

$

$

Not available

8

$

$

Not available

9

White Outdoor WD-900-2540

Double Pulley, 6.2"

$

$

Not available

10

White Outdoor WD-900-2512

Single Pulley, 6"

$

$

Not available

11

WD-900-2539

Double Pulley, 4.2"

$

$

Not available

$

$

Not available

13

$

$

Not available

14

WD-900-3020

Belt, B x 68

$

$

Not available

15

White Outdoor WD-900-3506

Spindle Bearlng, 7/8"
(Superseded to WD-C42786P)

$88.99

$

In Stock, only 1 left!

0

16

$

$

Not available

$

$

Not available

18

White Outdoor WD-900-6002

Mech. Washer, 14GA

$

$

Not available

19

WD-900-2514

Taper Hub, 7/8"

$

$

Not available

$

$

Not available

21

White Outdoor WD-900-6080

Hex Bolt, 3/8-24 0 x 1 1/4", GRS
(Superseded to WD-114-201)

$

$

Not available

22

$

$

Not available

23

White Outdoor WD-300-0021

Key Stock, 3/16" x 3/16" x 1"
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

24

White Outdoor WD-300-0017

Splndle Washer, 5/16", 10 GA 0

$

$

Not available

25

White Outdoor WD-900-6034

Hex Tap Bolt, 1/4-20 x 4"

$

$

Not available

26

White Outdoor WD-900-6053

Hex Capscrew, 5/16-24 x 3/4"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

WD-900-6171

Woodruff Key, 1/4" x 7/8"

$

$

Not available

28

White Outdoor WD-600-0001

Spindle Housing Assembly

$

$

Not available
